Q-0303I0 Series

Catalog

CBL ASSY BNC-SMB JACK-JACK 3"

Part	1st Connector	Frequency - Max	Features	2nd Contact Gender	2nd Connector Mounting Type	1st Contact Gender	Cable Type	Style	Color	Overall Impedance	2nd Connector	1st Connector Mounting Type	Length	Length (ft)

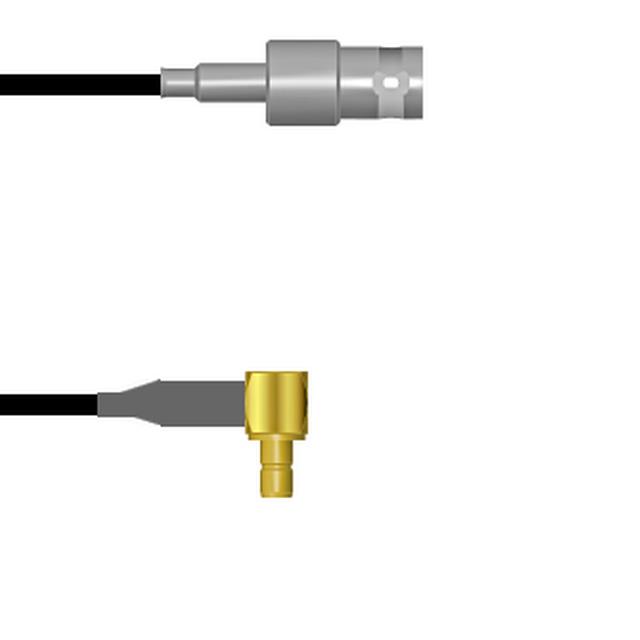

McGill Microwave Systems Q-0303I0003003i	BNC Jack	4 GHz	Shielded	Female	Free Hanging (In-Line)	Female	174 RG	BNC SMB	Black	50 Ohms	Right Angle SMB Jack	Free Hanging (In-Line)	3 "

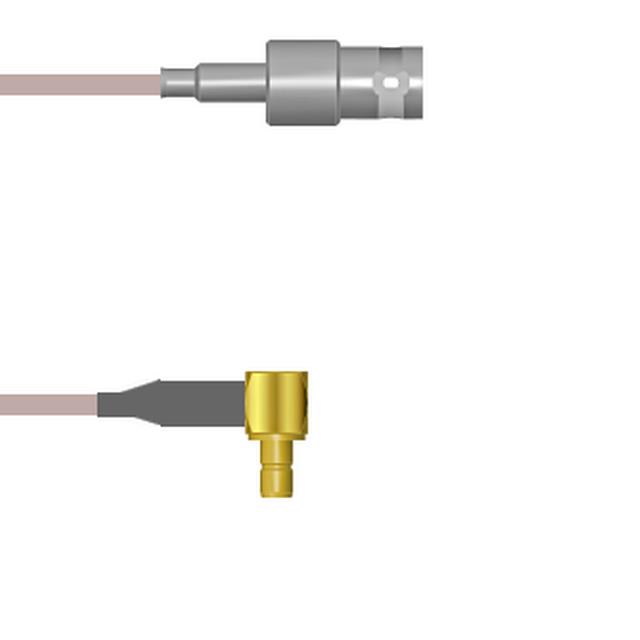

McGill Microwave Systems Q-0303I0005003M	BNC Jack	4 GHz	Shielded	Female	Free Hanging (In-Line)	Female	316 RG	BNC SMB	Copper	50 Ohms	Right Angle SMB Jack	Free Hanging (In-Line)	118.1 in
McGill Microwave Systems Q-0303I0005006i	BNC Jack	4 GHz	Shielded	Female	Free Hanging (In-Line)	Female	316 RG	BNC SMB	Copper	50 Ohms	Right Angle SMB Jack	Free Hanging (In-Line)	0.5 ft
McGill Microwave Systems Q-0303I0003084i	BNC Jack	4 GHz	Shielded	Female	Free Hanging (In-Line)	Female	174 RG	BNC SMB	Black	50 Ohms	Right Angle SMB Jack	Free Hanging (In-Line)	84 in	7 ft
McGill Microwave Systems Q-0303I0003036i	BNC Jack	4 GHz	Shielded	Female	Free Hanging (In-Line)	Female	174 RG	BNC SMB	Black	50 Ohms	Right Angle SMB Jack	Free Hanging (In-Line)	36 in
McGill Microwave Systems Q-0303I0005036i	BNC Jack	4 GHz	Shielded	Female	Free Hanging (In-Line)	Female	316 RG	BNC SMB	Copper	50 Ohms	Right Angle SMB Jack	Free Hanging (In-Line)	36 in
McGill Microwave Systems Q-0303I0003006i	BNC Jack	4 GHz	Shielded	Female	Free Hanging (In-Line)	Female	174 RG	BNC SMB	Black	50 Ohms	Right Angle SMB Jack	Free Hanging (In-Line)	0.5 ft
McGill Microwave Systems Q-0303I0003001M	BNC Jack	4 GHz	Shielded	Female	Free Hanging (In-Line)	Female	174 RG	BNC SMB	Black	50 Ohms	Right Angle SMB Jack	Free Hanging (In-Line)	39.4 in
McGill Microwave Systems Q-0303I00052.5M	BNC Jack	4 GHz	Shielded	Female	Free Hanging (In-Line)	Female	316 RG	BNC SMB	Copper	50 Ohms	Right Angle SMB Jack	Free Hanging (In-Line)	98.4 in	8.2 ft
McGill Microwave Systems Q-0303I0003003M	BNC Jack	4 GHz	Shielded	Female	Free Hanging (In-Line)	Female	174 RG	BNC SMB	Black	50 Ohms	Right Angle SMB Jack	Free Hanging (In-Line)	118.1 in
