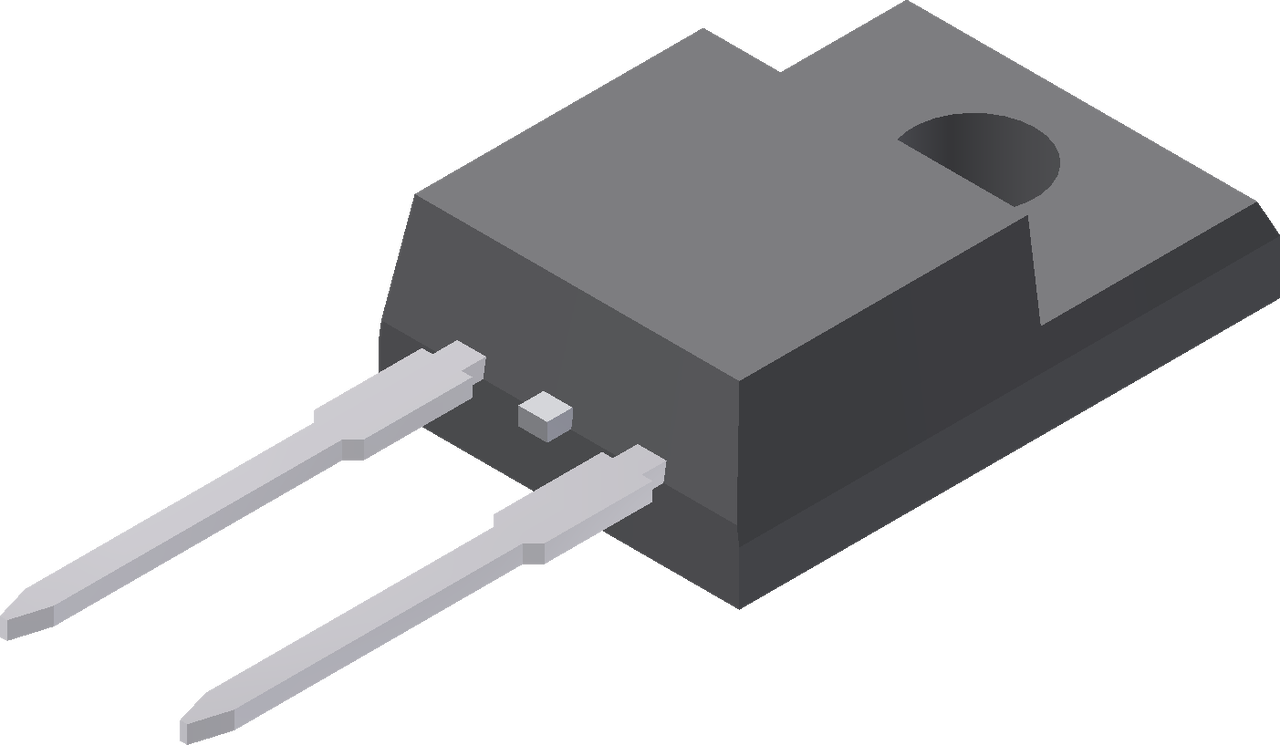

Power Diode Discretes-FRED TO-220AC
Description
AI
The FRED Low Vf series offers improved forward voltage characteristics and breakdown voltages up to 1200V.
Beta
⌘K
Power Diode Discretes-FRED TO-220AC
Power Diode Discretes-FRED TO-220AC
| Part | Technology | Current - Reverse Leakage | Package Name | Reverse Recovery Time (trr) | Mounting Type | Speed - Fast Recovery (Maximum) | Speed - Fast Recovery (Minimum) | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Package / Case | Voltage - Forward (Vf) (Max) | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

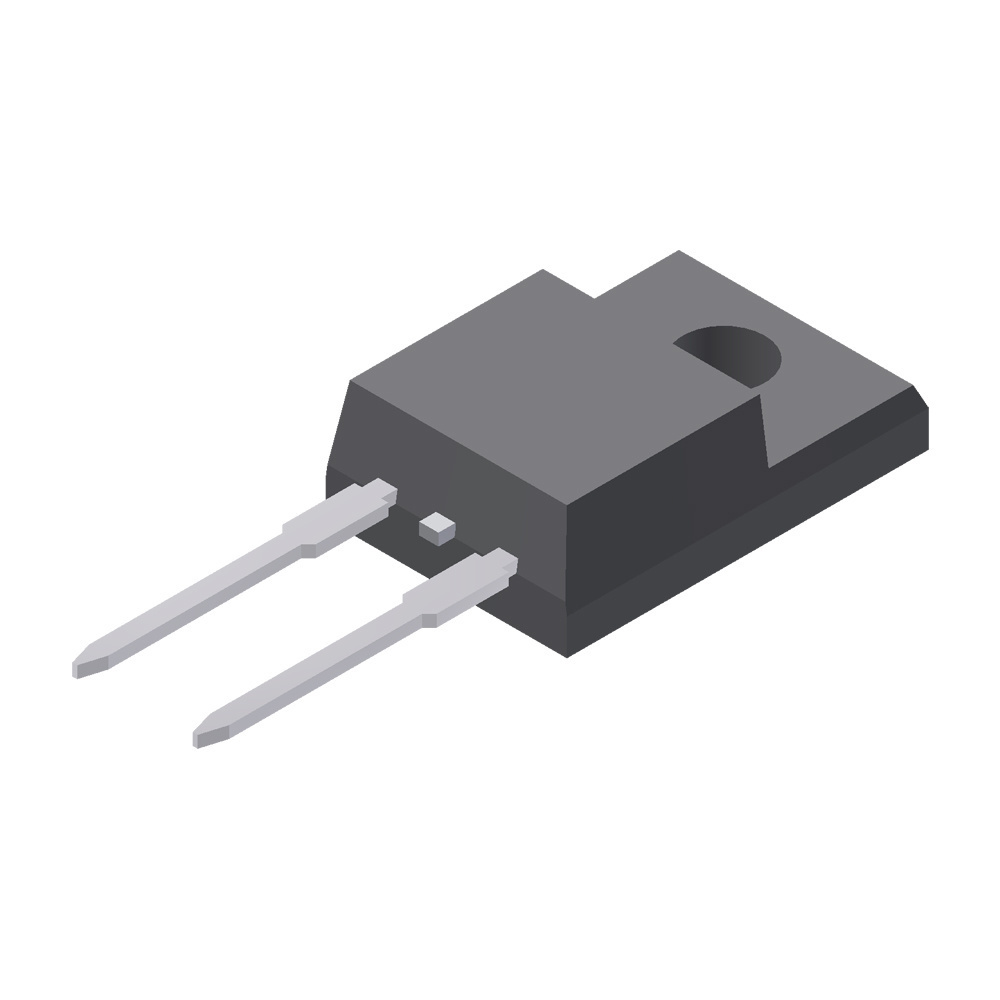

 LITTELFUSE | Standard | 1 µA | TO-220ACFP | 45 ns | Through Hole | 500 ns | 200 mA | 400 V | 15 A | Isolated Tab TO-220-2 Full Pack | 1.39 V 1.39 V | 175 °C | -55 °C |
