5645500 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

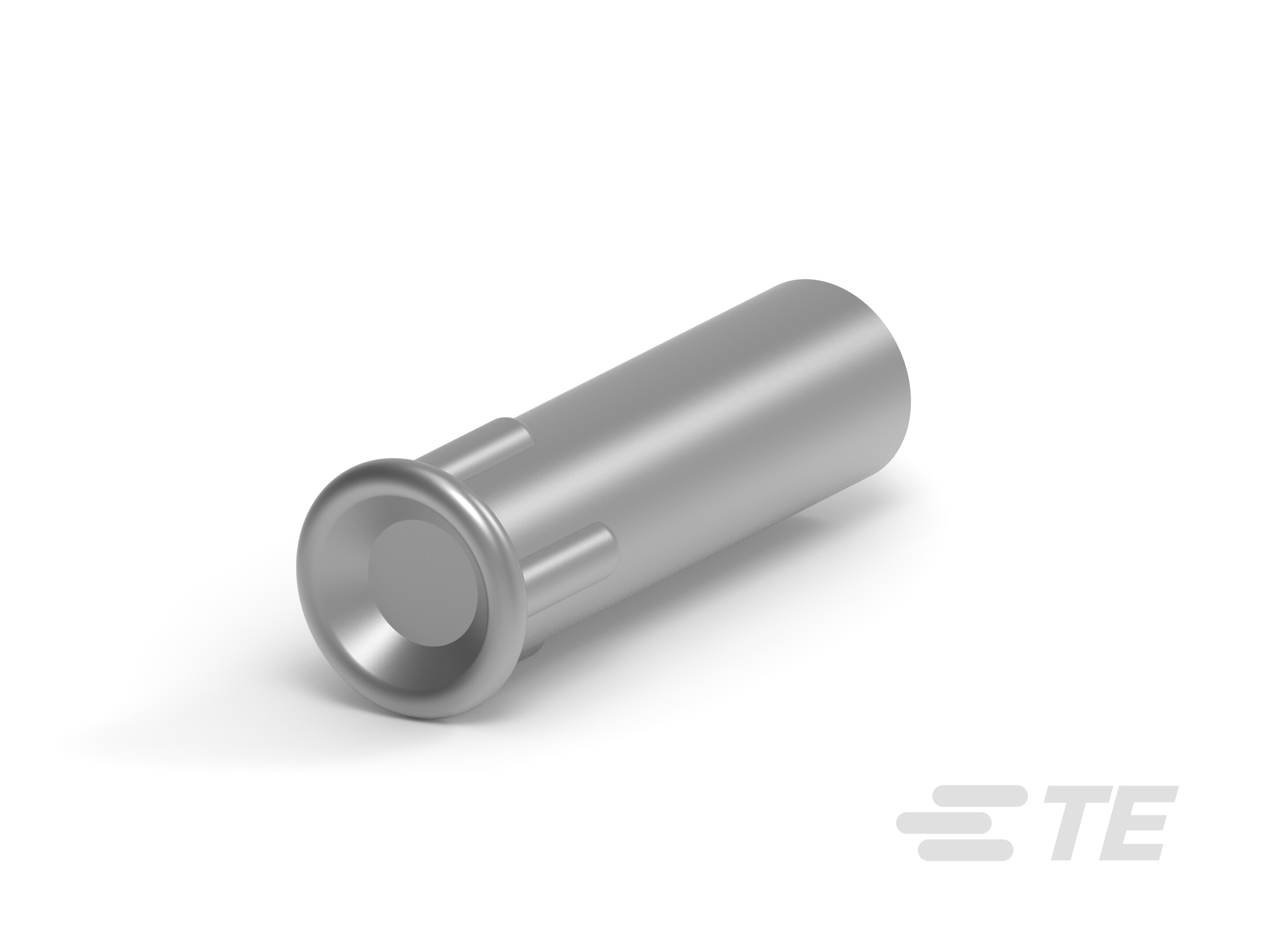

TURRET SOLDER / PRESS MOUNT TERMINAL, NON INSULATED, 1.75 MM, TIN, 6.6 MM, 6.04 MM, 4 SERIES
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Socket Depth (Max) | Socket Depth (Min) | Contact Finish | Tail Type | Contact Material | Contact Finish Thickness | Flange Diameter | Termination | Length - Overall | Accepts Pin Diameter (Max) | Accepts Pin Diameter (Min) | Mounting Hole Diameter (Max) | Mounting Hole Diameter (Min) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -65 °C | 126 °C | 0.21 in | 0.1 in | Gold | No Tail | Beryllium Copper | 30 µin | 0.089 in | Solder | 0.26 in | 0.041 in | 0.037 in | 0.075 in | 0.069 in |
