Q-0D02W0 Series

Catalog

CBL ASSY BNC-SMA PLUG-JACK 12"

Part	2nd Connector Mounting Type	1st Connector	Color	2nd Connector Mounting Feature	Style	1st Connector Mounting Type	Overall Impedance	2nd Contact Gender	1st Contact Gender	Features	Frequency - Max	Length	2nd Connector	Cable Type	Length (ft)

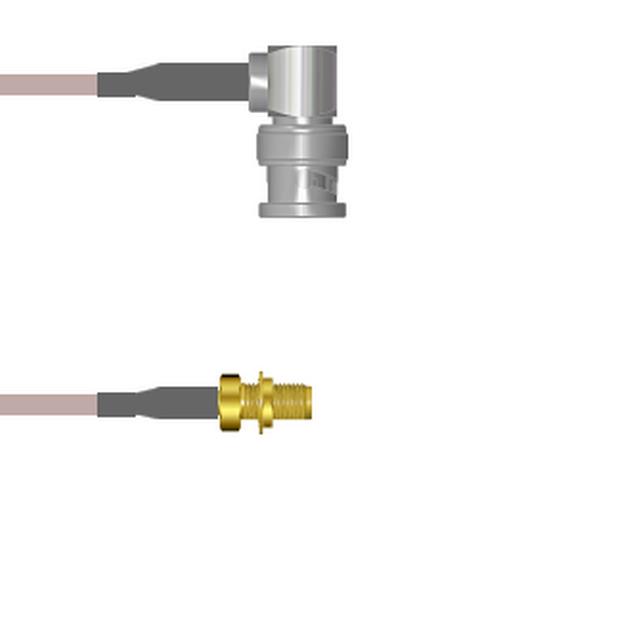

McGill Microwave Systems Q-0D02W0005012i	Panel Mount	BNC Plug Right Angle	Copper	Bulkhead - Front Side Nut	BNC SMA	Free Hanging (In-Line)	50 Ohms	Female	Male	Shielded	4 GHz	12 in	SMA Jack	316 RG
McGill Microwave Systems Q-0D02W0005072i	Panel Mount	BNC Plug Right Angle	Copper	Bulkhead - Front Side Nut	BNC SMA	Free Hanging (In-Line)	50 Ohms	Female	Male	Shielded	4 GHz	72 in	SMA Jack	316 RG

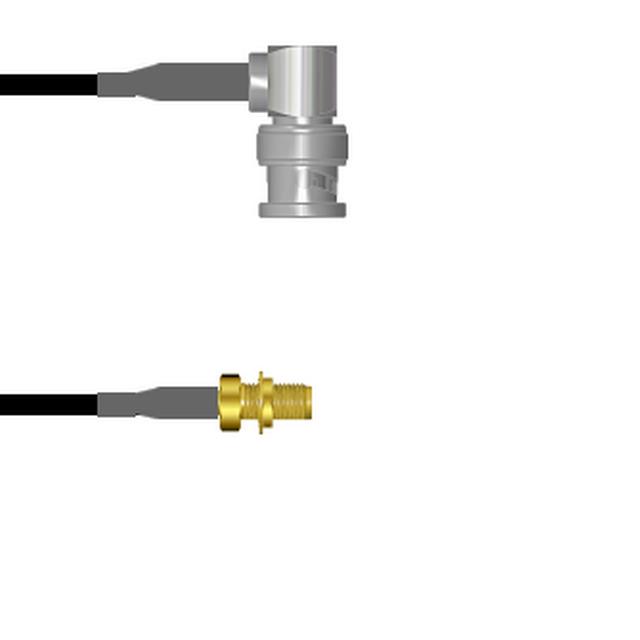

McGill Microwave Systems Q-0D02W0003009i	Panel Mount	BNC Plug Right Angle	Black	Bulkhead - Front Side Nut	BNC SMA	Free Hanging (In-Line)	50 Ohms	Female	Male	Shielded	4 GHz	228.6 mm	SMA Jack	174 RG
McGill Microwave Systems Q-0D02W0005036i	Panel Mount	BNC Plug Right Angle	Copper	Bulkhead - Front Side Nut	BNC SMA	Free Hanging (In-Line)	50 Ohms	Female	Male	Shielded	4 GHz	36 in	SMA Jack	316 RG
McGill Microwave Systems Q-0D02W0005002M	Panel Mount	BNC Plug Right Angle	Copper	Bulkhead - Front Side Nut	BNC SMA	Free Hanging (In-Line)	50 Ohms	Female	Male	Shielded	4 GHz		SMA Jack	316 RG	6.6 ft
McGill Microwave Systems Q-0D02W0005001M	Panel Mount	BNC Plug Right Angle	Copper	Bulkhead - Front Side Nut	BNC SMA	Free Hanging (In-Line)	50 Ohms	Female	Male	Shielded	4 GHz	39.4 in	SMA Jack	316 RG
McGill Microwave Systems Q-0D02W0005108i	Panel Mount	BNC Plug Right Angle	Copper	Bulkhead - Front Side Nut	BNC SMA	Free Hanging (In-Line)	50 Ohms	Female	Male	Shielded	4 GHz	9 ft	SMA Jack	316 RG
McGill Microwave Systems Q-0D02W0005018i	Panel Mount	BNC Plug Right Angle	Copper	Bulkhead - Front Side Nut	BNC SMA	Free Hanging (In-Line)	50 Ohms	Female	Male	Shielded	4 GHz	18 in	SMA Jack	316 RG
McGill Microwave Systems Q-0D02W0005024i	Panel Mount	BNC Plug Right Angle	Copper	Bulkhead - Front Side Nut	BNC SMA	Free Hanging (In-Line)	50 Ohms	Female	Male	Shielded	4 GHz	24 in	SMA Jack	316 RG
McGill Microwave Systems Q-0D02W0005009i	Panel Mount	BNC Plug Right Angle	Copper	Bulkhead - Front Side Nut	BNC SMA	Free Hanging (In-Line)	50 Ohms	Female	Male	Shielded	4 GHz	228.6 mm	SMA Jack	316 RG
