RJF6 Series

Catalog

CONN MOD PLUG HSG RJ45 SILVER

Part	Operating Temperature (Min)	Operating Temperature (Max)	Note	Mating Cycles	Fastening Type	Connector Type	Shielding	Features	Mounting Type	Ingress Protection Description	Ingress Protection IP Rating	Color	Convert From (Adapter End)	Type	Convert To (Adapter End)	Shell Material	Finish	Ratings

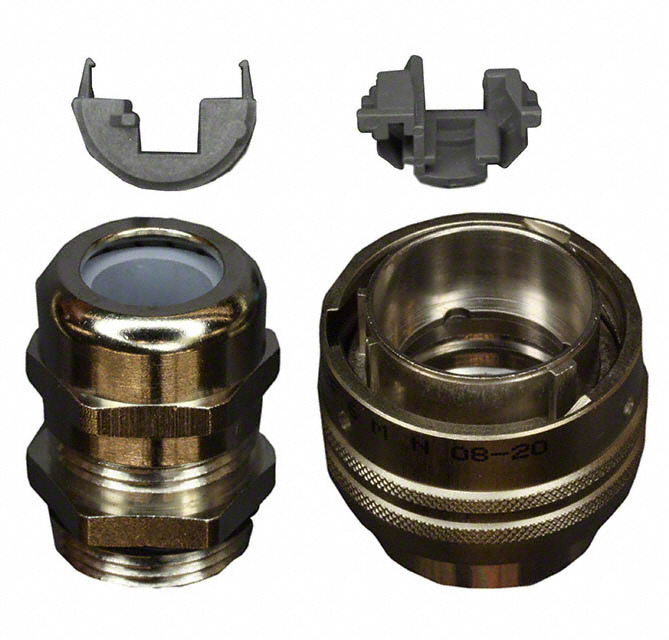

McGill Microwave Systems RJF6MN	-40 °C	85 °C	Plug Not Provided	500 cycles	Bayonet Lock	Housing for Prewired RJ45 Cordset	Unshielded	Shock Resistant Toolless Vibration Resistant	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Silver
McGill Microwave Systems RJF62BPEM1B							Unshielded	Circular Bayonet Coupling	Panel Mount Square Flange	Dust Tight Waterproof	IP67		6p6c (RJ11) Jack	Coupler	6p6c (RJ11) Jack	Metal	Olive Drab Cadmium Plated
McGill Microwave Systems RJF62APEWF1B								Backshell	Panel Mount Square Flange	Dust Tight Waterproof	IP68		8p8c (RJ45) Jack	Coupler	8p8c (RJ45) Jack	Aluminum	Black Painted	Cat6

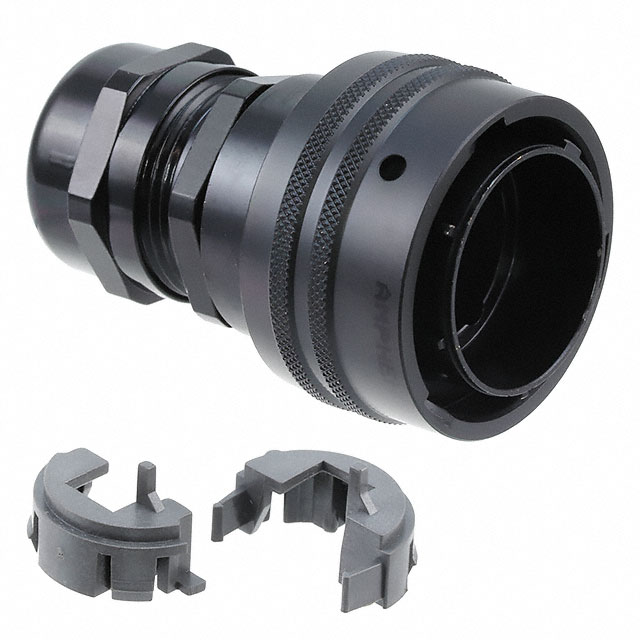

McGill Microwave Systems RJF6MZN	-40 °C	85 °C	Plug Not Provided	500 cycles	Bayonet Lock	Housing for Prewired RJ45 Cordset	Unshielded	Toolless Vibration Resistant	Free Hanging (In-Line)	Dust Tight Waterproof	IP67
McGill Microwave Systems RJF62APEWF1G								Backshell	Panel Mount Square Flange	Dust Tight Waterproof	IP68		8p8c (RJ45) Jack	Coupler	8p8c (RJ45) Jack	Aluminum	Olive Drab Cadmium Plated	Cat6

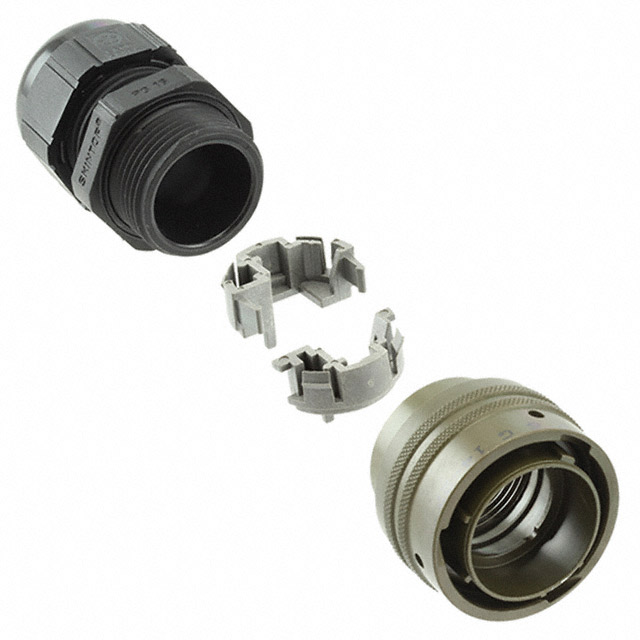

McGill Microwave Systems RJF6G	-40 °C	85 °C	Plug Not Provided	500 cycles	Bayonet Lock	Housing for Prewired RJ45 Cordset	Unshielded	Shock Resistant Toolless Vibration Resistant	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Green
McGill Microwave Systems RJF62APEMWF1G								Backshell	Panel Mount Square Flange	Dust Tight Waterproof	IP68		8p8c (RJ45) Jack	Coupler	8p8c (RJ45) Jack	Aluminum	Olive Drab Cadmium Plated	Cat6
McGill Microwave Systems RJF67HCPE1B							Unshielded	Circular Bayonet Coupling	Panel Mount Square Flange	Dust Tight Waterproof	IP67		6p6c (RJ11) Jack	Coupler	6p6c (RJ11) Jack	Metal	Olive Drab Cadmium Plated

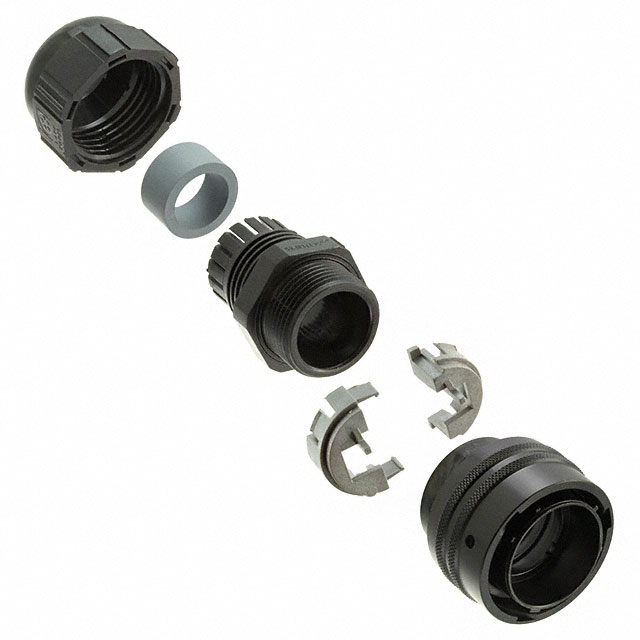

McGill Microwave Systems RJF6ZN	-40 °C	85 °C	Plug Not Provided	500 cycles	Bayonet Lock	Housing for Prewired RJ11 Cordset	Unshielded	Toolless Vibration Resistant	Free Hanging (In-Line)	Dust Tight Waterproof	IP67

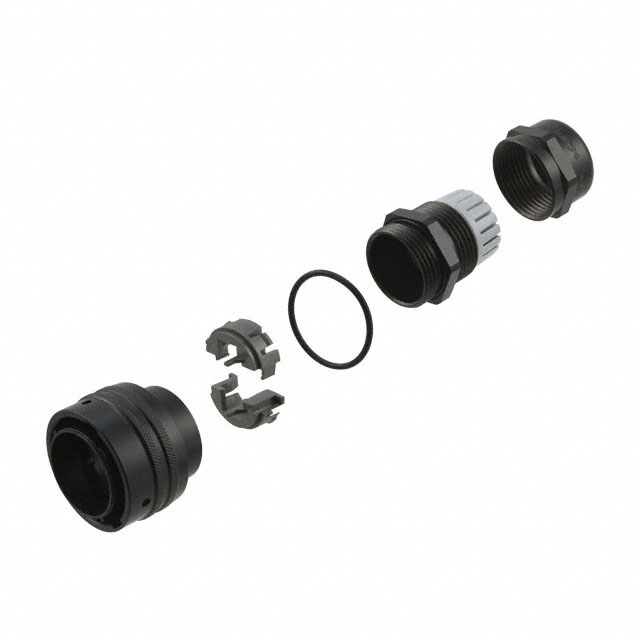

McGill Microwave Systems RJF6MB	-40 °C	85 °C	Plug Not Provided	500 cycles	Bayonet Lock	Housing for Prewired RJ45 Cordset	Unshielded	Shock Resistant Toolless Vibration Resistant	Free Hanging (In-Line)	Dust Tight Waterproof	IP67	Black
