5535079 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

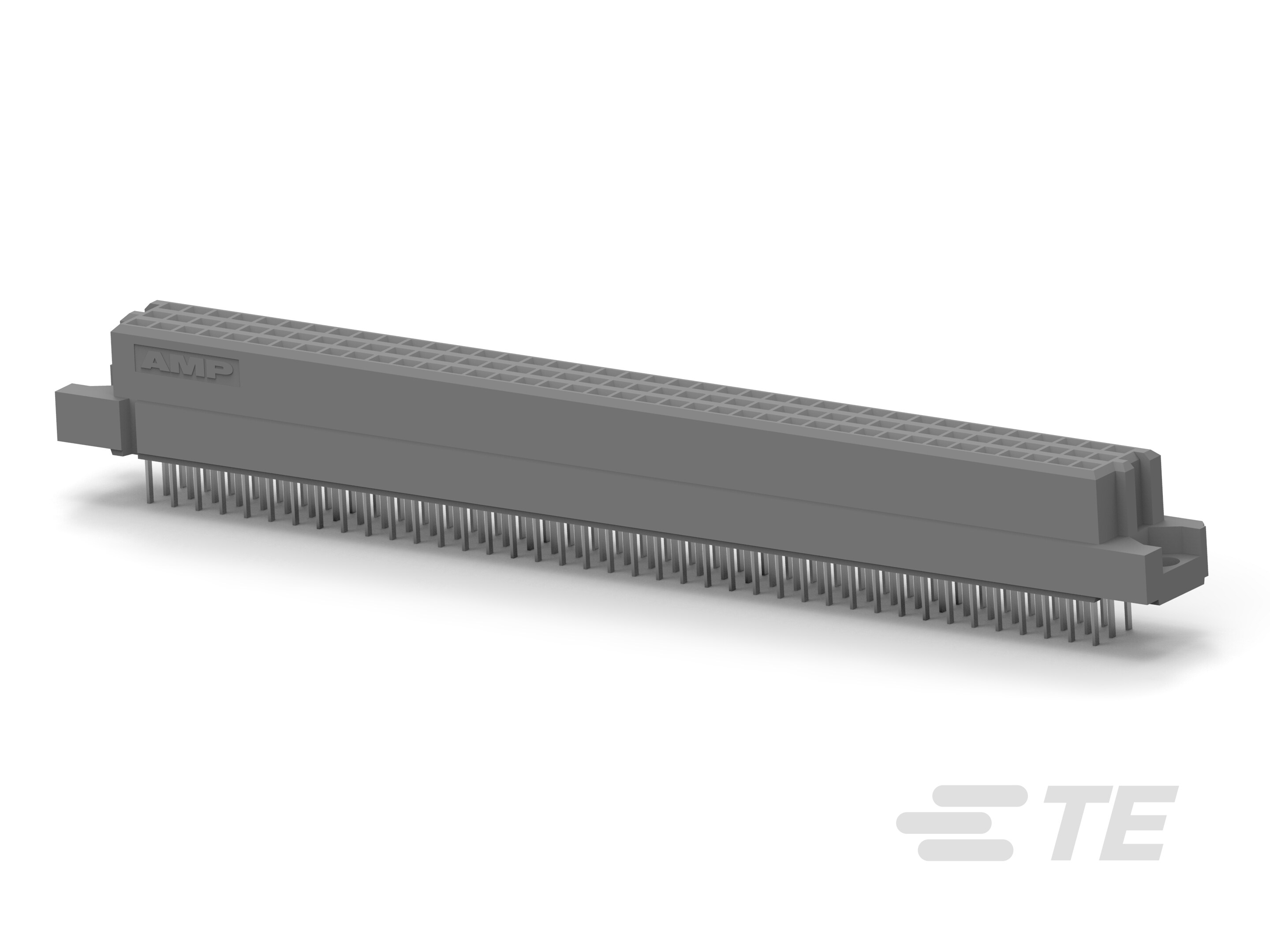

ASSY,RECEPTACLE,EUROCARD,TYPE C,LEAD-FRE
| Part | Material - Insulation | Operating Temperature (Max) | Operating Temperature (Min) | Material Flammability Rating | Style | Mounting Type | Termination | Pitch | Number of Positions | Connector Type | Level, Class | Contact Finish | Number of Rows | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Glass Filled Polymer Thermoplastic | 125 °C | -55 °C | UL94 V-0 | C | Through Hole | Press-Fit | 0.1 in | 120 | Female Sockets Receptacle | 2 | Gold | 3 | All |
