17-1112 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K
CONN MOD JACK 8P8C SHLD
| Part | Tab Direction | Ingress Protection Description | Ingress Protection IP Rating | Connector Type | Contact Finish | Contact Material | Number of Positions | Number of Contacts | Number of Ports | Orientation | Features | Shielding | Ratings | Termination | LED Color | Mounting Type | Number of Rows | Housing Material | Operating Temperature (Min) | Operating Temperature (Max) | Contact Finish Thickness | Convert From (Adapter End) | Mounting Feature | Type | Shell Material | Finish | Convert To (Adapter End) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

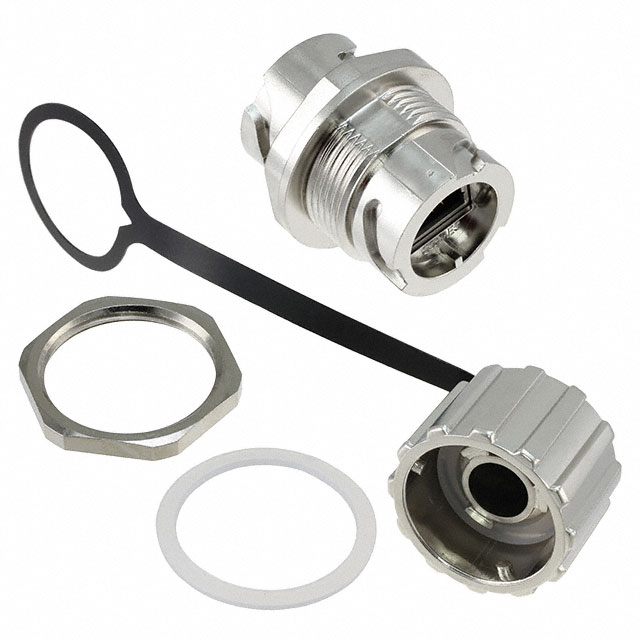

 McGill Microwave Systems | User Selectable | Dust Tight Waterproof | IP67 | Ethernet Jack RJ45 | Gold | Phosphor Bronze | 8 | 8 | 1 | Straight | Circular Bayonet Coupling Cover Mounting Hardware Potted | Shielded | Cat5e | Terminal Block | Does Not Contain LED | Flange Panel Mount | 1 | Nickel Plated Zinc Die Cast | -40 °C | 85 °C | 50 µin | ||||||

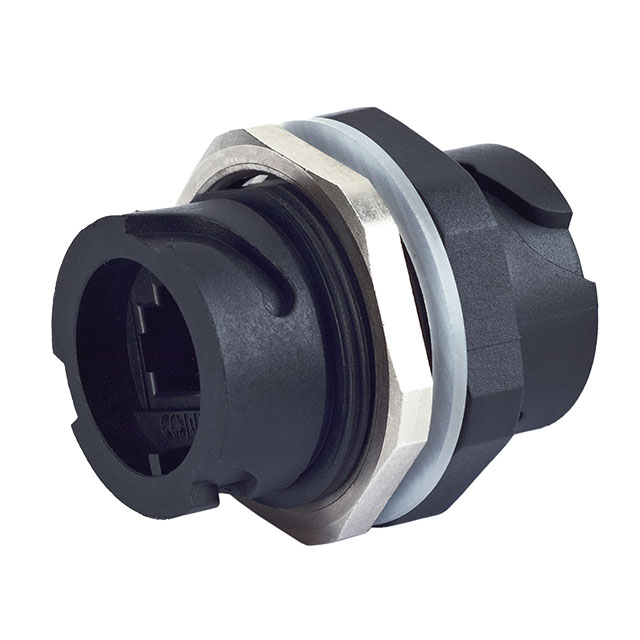

 McGill Microwave Systems | Dust Tight Waterproof | IP67 | Gold | Phosphor Bronze | Circular Bayonet Coupling | Shielded | Cat5e | Bulkhead Panel Mount | Glass Filled PBT Polybutylene Terephthalate | -40 °C | 85 °C | 50 µin | 8p8c (RJ45) Jack | Flange | Coupler | Copper Alloy | Nickel Plated | 8p8c (RJ45) Jack | |||||||||
 McGill Microwave Systems | User Selectable | Dust Tight Waterproof | IP67 | Ethernet Jack RJ45 | Gold | Phosphor Bronze | 8 | 8 | 1 | Straight | Circular Bayonet Coupling Cover Mounting Hardware Potted | Shielded | Cat5e | PC Board Solder | Does Not Contain LED | Flange Panel Mount | 1 | Nickel Plated Zinc Die Cast | -40 °C | 85 °C | 50 µin | ||||||
McGill Microwave Systems | Dust Tight Waterproof | IP67 | Gold | Phosphor Bronze | Circular Bayonet Coupling | Unshielded | Cat5e | Bulkhead Panel Mount | Glass Filled PBT Polybutylene Terephthalate | -40 °C | 85 °C | 50 µin | 8p8c (RJ45) Jack | Flange | Coupler | Copper Alloy | Nickel Plated | 8p8c (RJ45) Jack | |||||||||
 McGill Microwave Systems | Dust Tight Waterproof | IP67 | Gold | Phosphor Bronze | Cap (Cover) Circular Bayonet Coupling Industrial Environments | Shielded | Cat5e | Bulkhead Panel Mount | Glass Filled PBT Polybutylene Terephthalate | -40 °C | 85 °C | 50 µin | 8p8c (RJ45) Jack | Front Side Nut | Coupler | Copper Alloy | Nickel Plated | 8p8c (RJ45) Jack | |||||||||
 McGill Microwave Systems | Dust Tight Waterproof | IP67 | Gold | Phosphor Bronze | Circular Bayonet Coupling | Shielded | Cat5e | Bulkhead Panel Mount | Glass Filled PBT Polybutylene Terephthalate | -40 °C | 85 °C | 50 µin | 8p8c (RJ45) Jack | Front Side Nut | Coupler | Copper Alloy | Nickel Plated | 8p8c (RJ45) Jack |
