Q-070220 Series

Catalog

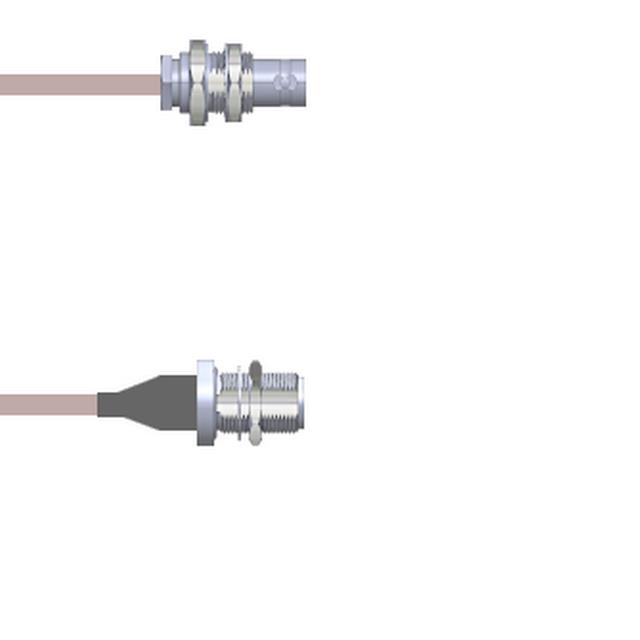

COAX CBL BNC TO N-TYPE 12"

Part	1st Contact Gender	1st Connector Mounting Type	2nd Connector Mounting Type	1st Connector Mounting Feature	1st Connector	Style	2nd Contact Gender	Overall Impedance	Length	Features	Cable Type Size	Cable Type	Frequency - Max	Color	2nd Connector Mounting Feature	2nd Connector	Length (ft)
McGill Microwave Systems Q-07022000R012i	Female	Panel Mount	Panel Mount	Bulkhead Front Side Nut	BNC Jack	BNC N-Type	Female	50 Ohms	12 in	Shielded	316	DB RG	2 GHz	Copper	Bulkhead - Front Side Nut	N-Type Jack
McGill Microwave Systems Q-07022000R.75M	Female	Panel Mount	Panel Mount	Bulkhead Front Side Nut	BNC Jack	BNC N-Type	Female	50 Ohms	29.53 in	Shielded	316	DB RG	2 GHz	Copper	Bulkhead - Front Side Nut	N-Type Jack
McGill Microwave Systems Q-07022000R108i	Female	Panel Mount	Panel Mount	Bulkhead Front Side Nut	BNC Jack	BNC N-Type	Female	50 Ohms	9 ft	Shielded	316	DB RG	2 GHz	Copper	Bulkhead - Front Side Nut	N-Type Jack
McGill Microwave Systems Q-07022000R006i	Female	Panel Mount	Panel Mount	Bulkhead Front Side Nut	BNC Jack	BNC N-Type	Female	50 Ohms	0.5 ft	Shielded	316	DB RG	2 GHz	Copper	Bulkhead - Front Side Nut	N-Type Jack
McGill Microwave Systems Q-07022000R036i	Female	Panel Mount	Panel Mount	Bulkhead Front Side Nut	BNC Jack	BNC N-Type	Female	50 Ohms	36 in	Shielded	316	DB RG	2 GHz	Copper	Bulkhead - Front Side Nut	N-Type Jack
McGill Microwave Systems Q-07022000R018i	Female	Panel Mount	Panel Mount	Bulkhead Front Side Nut	BNC Jack	BNC N-Type	Female	50 Ohms	18 in	Shielded	316	DB RG	2 GHz	Copper	Bulkhead - Front Side Nut	N-Type Jack
McGill Microwave Systems Q-07022000R2.5M	Female	Panel Mount	Panel Mount	Bulkhead Front Side Nut	BNC Jack	BNC N-Type	Female	50 Ohms	98.4 in	Shielded	316	DB RG	2 GHz	Copper	Bulkhead - Front Side Nut	N-Type Jack	8.2 ft
McGill Microwave Systems Q-07022000R024i	Female	Panel Mount	Panel Mount	Bulkhead Front Side Nut	BNC Jack	BNC N-Type	Female	50 Ohms	24 in	Shielded	316	DB RG	2 GHz	Copper	Bulkhead - Front Side Nut	N-Type Jack
McGill Microwave Systems Q-07022000R003M	Female	Panel Mount	Panel Mount	Bulkhead Front Side Nut	BNC Jack	BNC N-Type	Female	50 Ohms	118.1 in	Shielded	316	DB RG	2 GHz	Copper	Bulkhead - Front Side Nut	N-Type Jack
McGill Microwave Systems Q-07022000R1.5M	Female	Panel Mount	Panel Mount	Bulkhead Front Side Nut	BNC Jack	BNC N-Type	Female	50 Ohms	59.1 in	Shielded	316	DB RG	2 GHz	Copper	Bulkhead - Front Side Nut	N-Type Jack	4.9 ft
