Q-0300J0 Series

Catalog

CBL ASSY BNC JACK TO PLUG 3.3'

Part	1st Contact Gender	Color	Cable Type	2nd Connector Mounting Type	1st Connector	2nd Connector	1st Connector Mounting Type	Frequency - Max	Features	2nd Contact Gender	Style	Length	Overall Impedance	Length (ft)

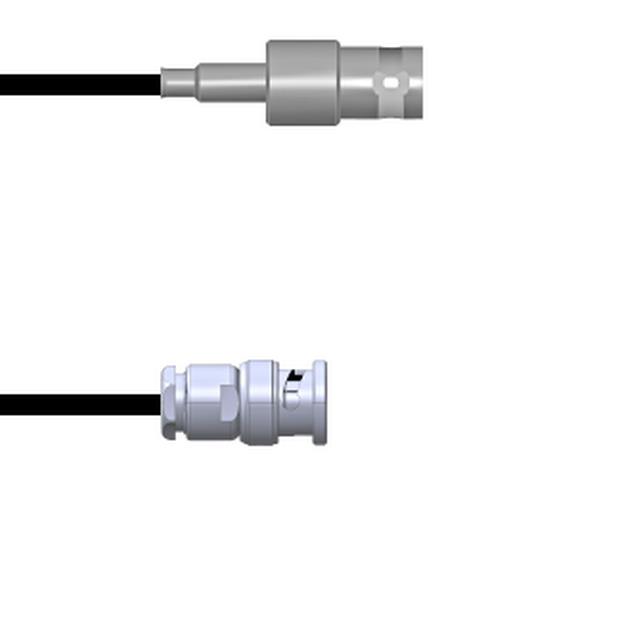

McGill Microwave Systems Q-0300J0003001M	Female	Black	174 RG	Free Hanging (In-Line)	BNC Jack	BNC Plug	Free Hanging (In-Line)	4 GHz	Shielded	Male	BNC	39.4 in	50 Ohms

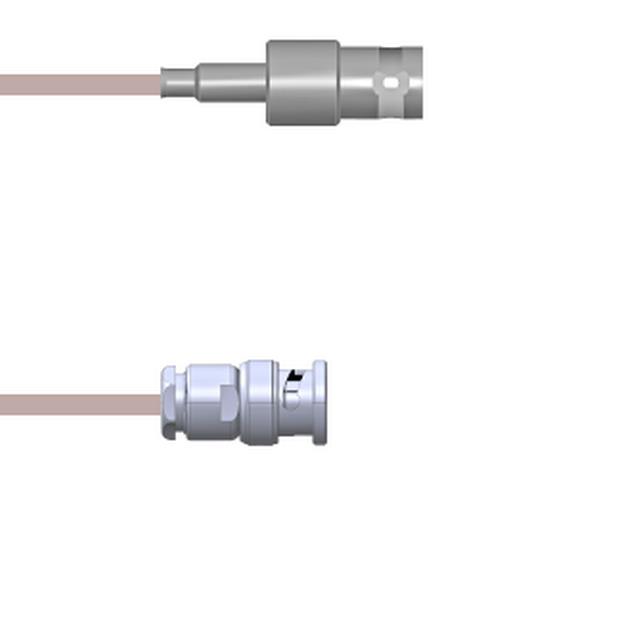

McGill Microwave Systems Q-0300J00050.5M	Female	Copper	316 RG	Free Hanging (In-Line)	BNC Jack	BNC Plug	Free Hanging (In-Line)	4 GHz	Shielded	Male	BNC	19.69 in	50 Ohms
McGill Microwave Systems Q-0300J0003084i	Female	Black	174 RG	Free Hanging (In-Line)	BNC Jack	BNC Plug	Free Hanging (In-Line)	4 GHz	Shielded	Male	BNC	84 in	50 Ohms	7 ft
McGill Microwave Systems Q-0300J0003003M	Female	Black	174 RG	Free Hanging (In-Line)	BNC Jack	BNC Plug	Free Hanging (In-Line)	4 GHz	Shielded	Male	BNC	118.1 in	50 Ohms
McGill Microwave Systems Q-0300J0005003i	Female	Copper	316 RG	Free Hanging (In-Line)	BNC Jack	BNC Plug	Free Hanging (In-Line)	4 GHz	Shielded	Male	BNC	3 "	50 Ohms
McGill Microwave Systems Q-0300J0005003M	Female	Copper	316 RG	Free Hanging (In-Line)	BNC Jack	BNC Plug	Free Hanging (In-Line)	4 GHz	Shielded	Male	BNC	118.1 in	50 Ohms
McGill Microwave Systems Q-0300J0003.25M	Female	Black	174 RG	Free Hanging (In-Line)	BNC Jack	BNC Plug	Free Hanging (In-Line)	4 GHz	Shielded	Male	BNC	9.843 in	50 Ohms
McGill Microwave Systems Q-0300J0003018i	Female	Black	174 RG	Free Hanging (In-Line)	BNC Jack	BNC Plug	Free Hanging (In-Line)	4 GHz	Shielded	Male	BNC	18 in	50 Ohms
McGill Microwave Systems Q-0300J00032.5M	Female	Black	174 RG	Free Hanging (In-Line)	BNC Jack	BNC Plug	Free Hanging (In-Line)	4 GHz	Shielded	Male	BNC	98.4 in	50 Ohms	8.2 ft
McGill Microwave Systems Q-0300J0003006i	Female	Black	174 RG	Free Hanging (In-Line)	BNC Jack	BNC Plug	Free Hanging (In-Line)	4 GHz	Shielded	Male	BNC	0.5 ft	50 Ohms
