KD15 Series

Catalog

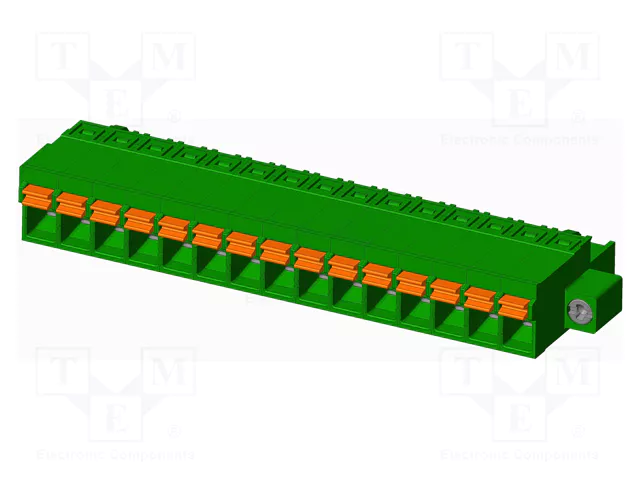

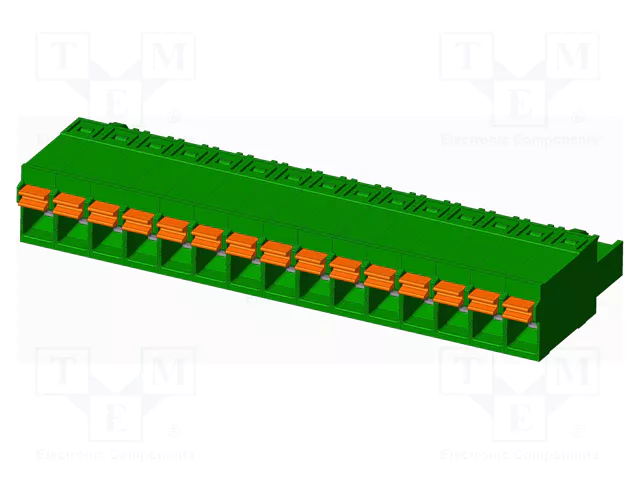

CONNECTOR: PLUGGABLE TERMINAL BLOCK; PLUG; FEMALE; 12A; 300V; 1X15

Part	Voltage - UL	Number of Positions	Termination Style	Plug Wire Entry Angle	Mounting Type	Color	Type	Features	Operating Temperature (Min)	Operating Temperature (Max)	Current - UL	Number of Levels	Pitch	Contact Mating Finish	Positions Per Level	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Contact Material	Material Flammability Rating	Wire Strip Length (Min)	Wire Strip Length (Max)	Housing Material	Insulation Height
McGill Microwave Systems KD1550520000G	300 V	15	Push-In Spring Screwless - Leg Spring	180 °	Free Hanging (In-Line)	Green	Female Sockets Plug	Latch Lock	-40 °C	115 °C	12 A	1	5.08 mm	Tin	15	24 AWG	14 AWG	Phosphor Bronze	UL94 V-0	11 mm	12 mm	Thermoplastic	0.429 in
McGill Microwave Systems KD1530500000G	300 V	15	Push-In Spring Screwless - Leg Spring	180 °	Free Hanging (In-Line)	Green	Female Sockets Plug		-40 °C	115 °C	5.5 A	1	0.15 in	Tin	15	24 AWG	16 AWG	Phosphor Bronze	UL94 V-0	9 mm	10 mm	Thermoplastic	0.307 in
McGill Microwave Systems KD1570500000G	300 V	15	Push-In Spring Screwless - Leg Spring	180 °	Free Hanging (In-Line)	Green	Female Sockets Plug	Retention Latches (Non-Wire Side)	-40 °C	115 °C	12 A	1	0.197 in	Tin	15	24 AWG	14 AWG	Phosphor Bronze	UL94 V-0	11 mm	12 mm	Thermoplastic	0.429 in
McGill Microwave Systems KD1550510000G	300 V	15	Push-In Spring Screwless - Leg Spring	180 °	Free Hanging (In-Line)	Green	Female Sockets Plug	Mating Flange Retention Latches (Wire Side)	-40 °C	115 °C	12 A	1	5.08 mm	Tin	15	24 AWG	14 AWG	Phosphor Bronze	UL94 V-0	11 mm	12 mm	Thermoplastic	0.429 in
McGill Microwave Systems KD1530520000G	300 V	15	Push-In Spring Screwless - Leg Spring	180 °	Free Hanging (In-Line)	Green	Female Sockets Plug	Latch Lock	-40 °C	115 °C	5.5 A	1	0.15 in	Tin	15	24 AWG	16 AWG	Phosphor Bronze	UL94 V-0	9 mm	10 mm	Thermoplastic	0.307 in
