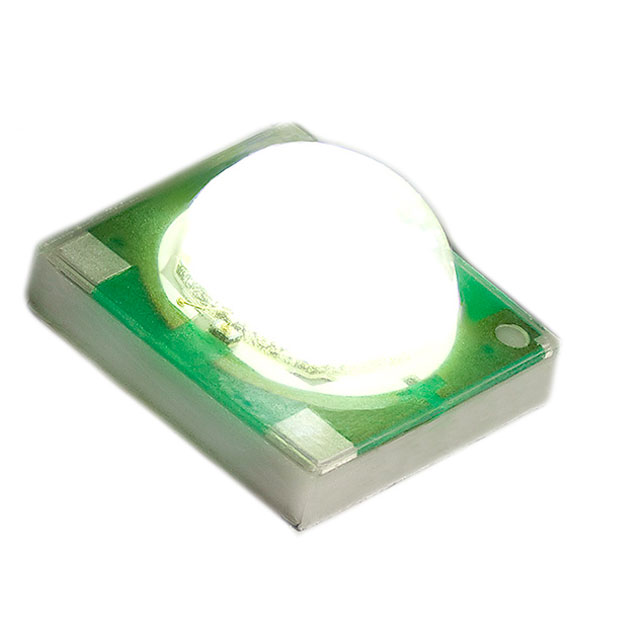

XPGWHT Series

Catalog

XLAMP XP-G LIGHT EMITTING DIODE WARM/NEUTRAL WHITE

...

Part	Current - Max	CRI (Color Rendering Index)	Lumens/Watt	Current - Test	Color	Package / Case	Mounting Type	Viewing Angle	Size / Dimension Length	Size / Dimension Width	Height - Seated (Max)	Thermal Resistance of Package	Package Name	CCT (K)	Voltage - Forward (Vf) (Typ)	Flux (Minimum)	Flux (Nominal)	Flux (Maximum)	CRI (Color Rendering Index) (Typ)
CreeLED, Inc. XPGWHT-H1-0000-00JE5	1.5 A	80	158 lm/W	350 mA	Neutral White	1414 (3535 Metric)	Surface Mount	130 °	0.136 in	0.136 in	0.084 in	1 °C/W	1414	4000 K	2.75 V	148 lm	152 lm	156 lm
CreeLED, Inc. XPGWHT-L1-0000-00ME2	1.5 A		183 lm/W	350 mA	Cool White	1414 (3535 Metric)	Surface Mount	130 °	0.136 in	0.136 in	0.084 in		1414	5700 K	2.75 V	172 lm	176 lm	180 lm	70
CreeLED, Inc. XPGWHT-L1-0000-00KE5	1.5 A		166 lm/W	350 mA	Neutral White	1414 (3535 Metric)	Surface Mount	130 °	0.136 in	0.136 in	0.084 in	1 °C/W	1414	4000 K	2.75 V	156 lm	160 lm	164 lm	75
CreeLED, Inc. XPGWHT-L1-0000-00JE8	1.5 A		158 lm/W	350 mA	Warm White	1414 (3535 Metric)	Surface Mount	130 °	0.136 in	0.136 in	0.084 in		1414	2700 K	2.75 V	148 lm	152 lm	156 lm	80

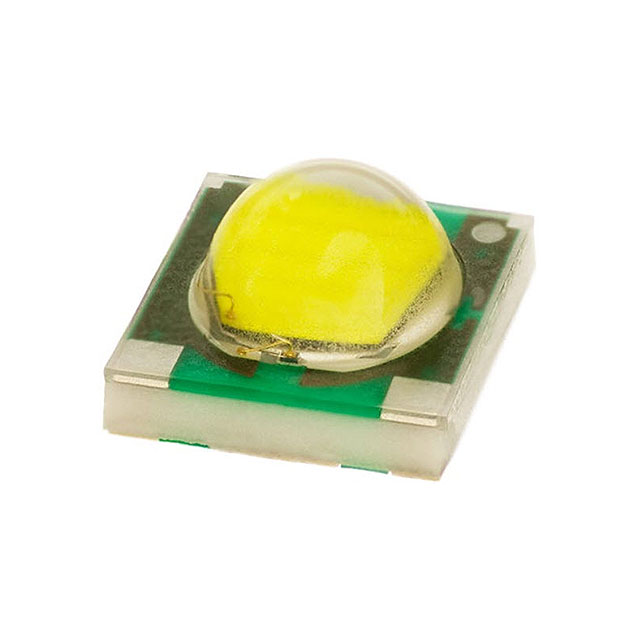

CreeLED, Inc. XPGWHT-01-R250-00FC1	1.5 A		124 lm/W	350 mA	Cool White	1414 (3535 Metric)	Surface Mount	125 °	0.136 in	0.136 in	0.084 in	4 °C/W		5000 K	2.9 V	122 lm	126 lm	130 lm	70
CreeLED, Inc. XPGWHT-P1-0000-007E8	1.5 A	85	70 lm/W	350 mA	Warm White	1414 (3535 Metric)	Surface Mount	125 °	0.136 in	0.136 in	0.084 in	4 °C/W		2700 K	2.9 V	67 lm	71 lm	74 lm
CreeLED, Inc. XPGWHT-L1-R250-00F51	1.5 A		124 lm/W	350 mA	Cool White	1414 (3535 Metric)	Surface Mount	125 °	0.136 in	0.136 in	0.084 in	4 °C/W		6200 K	2.9 V	122 lm	126 lm	130 lm	70
CreeLED, Inc. XPGWHT-L1-0000-00HE8	1.5 A		150 lm/W	350 mA	Warm White	1414 (3535 Metric)	Surface Mount	130 °	0.136 in	0.136 in	0.084 in	1 °C/W	1414	2700 K	2.75 V	139 lm	144 lm	148 lm	80
CreeLED, Inc. XPGWHT-H1-0000-00JE7	1.5 A	80	158 lm/W	350 mA	Warm White	1414 (3535 Metric)	Surface Mount	130 °	0.136 in	0.136 in	0.084 in	1 °C/W	1414	3000 K	2.75 V	148 lm	152 lm	156 lm
CreeLED, Inc. XPGWHT-H1-0000-00KF6	1.5 A	80	166 lm/W	350 mA	Neutral White	1414 (3535 Metric)	Surface Mount	130 °	0.136 in	0.136 in	0.084 in		1414	3750 K	2.75 V	156 lm	160 lm	164 lm
