KD24 Series

Catalog

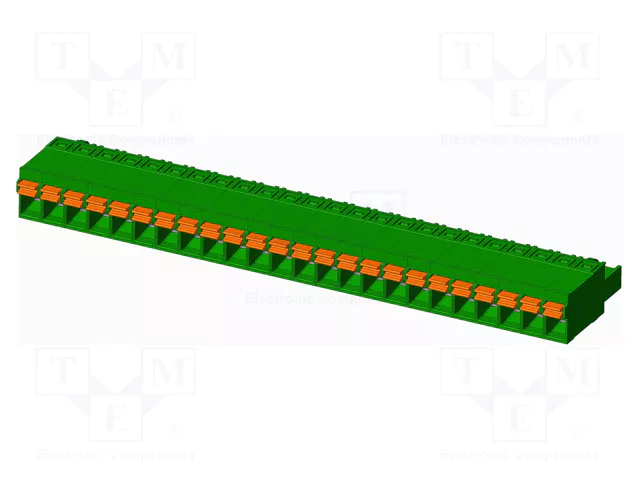

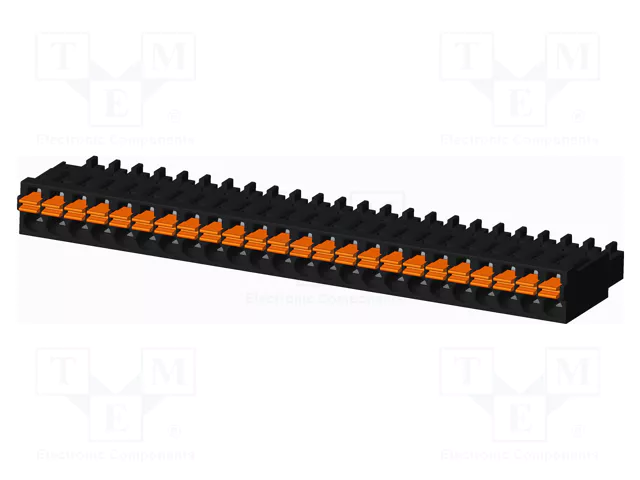

CONNECTOR: PLUGGABLE TERMINAL BLOCK; PLUG; FEMALE; 5.5A; 300V

Part	Number of Positions	Type	Current - UL	Contact Mating Finish	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Operating Temperature (Min)	Operating Temperature (Max)	Plug Wire Entry Angle	Mounting Type	Voltage - UL	Color	Positions Per Level	Termination Style	Pitch	Features	Number of Levels	Material Flammability Rating	Contact Material	Insulation Height	Housing Material	Wire Strip Length (Min)	Wire Strip Length (Max)
McGill Microwave Systems KD2430520000G	24 pos	Female Sockets Plug	5.5 A	Tin	24 AWG	16 AWG	-40 °C	115 °C	180 °	Free Hanging (In-Line)	300 V	Green	24	Push-In Spring Screwless - Leg Spring	0.15 in	Latch Lock	1	UL94 V-0	Phosphor Bronze	0.307 in	Thermoplastic	9 mm	10 mm
McGill Microwave Systems KD2410500000G	24 pos	Female Sockets Plug	5.5 A	Tin	24 AWG	16 AWG	-40 °C	115 °C	180 °	Free Hanging (In-Line)	160 V	Green	24	Push-In Spring Screwless - Leg Spring	0.138 in		1	UL94 V-0	Phosphor Bronze	0.307 in	Thermoplastic	9 mm	10 mm
McGill Microwave Systems KD2450510000G	24 pos	Female Sockets Plug	12 A	Tin	24 AWG	14 AWG	-40 °C	115 °C	180 °	Free Hanging (In-Line)	300 V	Green	24	Push-In Spring Screwless - Leg Spring	5.08 mm	Mating Flange Retention Latches (Wire Side)	1	UL94 V-0	Phosphor Bronze	0.429 in	Thermoplastic	11 mm	12 mm
McGill Microwave Systems KD2470500000G	24 pos	Female Sockets Plug	12 A	Tin	24 AWG	14 AWG	-40 °C	115 °C	180 °	Free Hanging (In-Line)	300 V	Green	24	Push-In Spring Screwless - Leg Spring	0.197 in	Retention Latches (Non-Wire Side)	1	UL94 V-0	Phosphor Bronze	0.429 in	Thermoplastic	11 mm	12 mm
McGill Microwave Systems KD2410520000G	24 pos	Female Sockets Plug	5.5 A	Tin	24 AWG	16 AWG	-40 °C	115 °C	180 °	Free Hanging (In-Line)	160 V	Green	24	Push-In Spring Screwless - Leg Spring	0.138 in	Latch Lock	1	UL94 V-0	Phosphor Bronze	0.307 in	Thermoplastic	9 mm	10 mm
McGill Microwave Systems KD241051A000G	24 pos	Female Sockets Plug	5.5 A	Tin	24 AWG	16 AWG	-40 °C	115 °C	180 °	Free Hanging (In-Line)	160 V	Green	12	Push-In Spring Screwless - Leg Spring	0.138 in		2	UL94 V-0	Phosphor Bronze	0.634 in	Thermoplastic	9 mm	10 mm
McGill Microwave Systems KD2410000000G	24 pos	Female Sockets Plug	5.5 A	Tin	24 AWG	16 AWG	-40 °C	115 °C	180 °	Free Hanging (In-Line)	160 V	Black	24	Push-In Spring Screwless - Leg Spring	0.138 in		1	UL94 V-0	Phosphor Bronze	0.307 in	Thermoplastic	9 mm	10 mm
McGill Microwave Systems KD241052A000G	24 pos	Female Sockets Plug	5.5 A	Tin	24 AWG	16 AWG	-40 °C	115 °C	180 °	Free Hanging (In-Line)	160 V	Green	12	Push-In Spring Screwless - Leg Spring	0.138 in	Latch Lock	2	UL94 V-0	Phosphor Bronze	0.634 in	Thermoplastic	9 mm	10 mm
McGill Microwave Systems KD2450520000G	24 pos	Female Sockets Plug	12 A	Tin	24 AWG	14 AWG	-40 °C	115 °C	180 °	Free Hanging (In-Line)	300 V	Green	24	Push-In Spring Screwless - Leg Spring	5.08 mm	Latch Lock	1	UL94 V-0	Phosphor Bronze	0.429 in	Thermoplastic	11 mm	12 mm
McGill Microwave Systems KD2450500000G	24 pos	Female Sockets Plug	12 A	Tin	24 AWG	14 AWG	-40 °C	115 °C	180 °	Free Hanging (In-Line)	300 V	Green	24	Push-In Spring Screwless - Leg Spring	5.08 mm	Retention Latches (Non-Wire Side)	1	UL94 V-0	Phosphor Bronze	0.429 in	Thermoplastic	11 mm	12 mm
