498 Series

Fuse - Midi 32VDC w/Clear Housing 40A

Catalog

Fuse - Midi 32VDC w/Clear Housing 40A

Part	DC Cold Resistance	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Mounting Type	Package / Case	Melting I²t	Fuse Type	Operating Temperature (Max)	Operating Temperature (Min)	Current Rating	Breaking Capacity	Voltage Rating - DC	Approval Agency	Response Time	Color
LITTELFUSE 0498080.MX1M6-CN

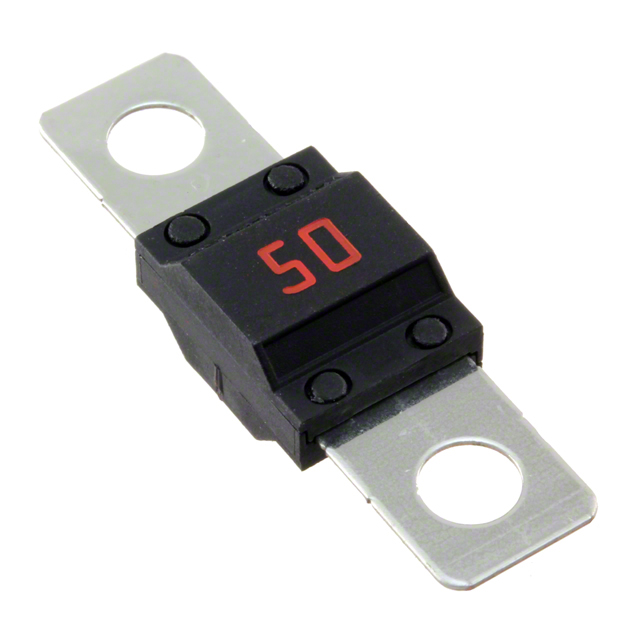

LITTELFUSE 0498050.MXM6	1.025 Ohms	1.614 in	0.472 in	0.315 in	Bolt Mount	Auto Link	13000	Automotive	125 °C	-40 °C	50 A	1 kA	32 V	UR
LITTELFUSE 0498200.MX1M6	0.000261 Ohms	1.614 in	0.472 in	0.327 in	Bolt Mount	Auto Link	125000	Automotive	125 °C	-40 °C	200 A	1 kA	32 V	UR	Slow Blow	Purple
LITTELFUSE 0498060.MX1M5	0.865 Ohms	1.614 in	0.472 in	0.315 in	Bolt Mount	Auto Link	21700	Automotive	125 °C	-40 °C	60 A	1 kA	32 V	UR
LITTELFUSE 0498150.M	0.00033 Ohms	1.614 in	0.472 in	0.315 in	Bolt Mount	Auto Link		Automotive	125 °C	-40 °C	150 A	1 kA	32 V	UL	Slow Blow
LITTELFUSE 0498125.MXT-CN	0.000394 Ohms	1.614 in	0.472 in	0.327 in	Bolt Mount	Auto Link	73300	Automotive	125 °C	-40 °C	125 A	1 kA	32 V	UR	Slow Blow	Pink
LITTELFUSE 0498050.TXN	0.001025 Ohms	1.614 in	0.472 in	0.315 in	Bolt Mount	Auto Link	13000	Automotive	125 °C	-40 °C	50 A	1 kA	32 V		Slow Blow	Red
LITTELFUSE 0498040.MXT	0.001398 Ohms	1.614 in	0.472 in	0.315 in	Bolt Mount	Auto Link	10000	Automotive	125 °C	-40 °C	40 A	1 kA	32 V		Slow Blow	Green
LITTELFUSE 0498040.MX1M6-CN
LITTELFUSE 0498040.MXM6	1.398 Ohms	1.614 in	0.472 in	0.315 in	Bolt Mount	Auto Link	10000	Automotive	125 °C	-40 °C	40 A	1 kA	32 V	UR

Catalog

Fuse - Midi 32VDC w/Clear Housing 40A

Description

This 40 A MIDI® fuse employs diffusion pill technology to offer time-delayed protection to high-current wiring harnesses. The bolt-down automotive fuse boasts a compact design, enabling greater circuit protection in less space.
