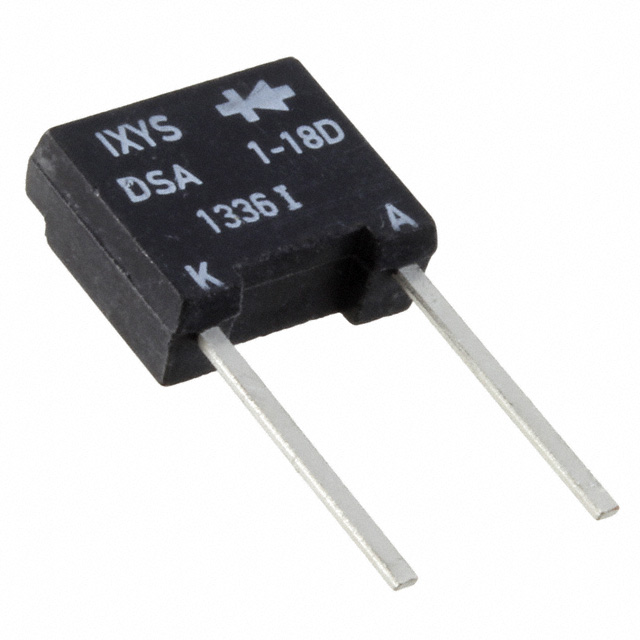

DSA1 Series

PowerDiodeDisc-Rectifier FP-case(oilprf)

Catalog

PowerDiodeDisc-Rectifier FP-case(oilprf)

Part	Voltage - Forward (Vf) (Max)	Speed - Fast Recovery (Minimum)	Speed	Speed - Recovery Current	Speed - Recovery Time	Current - Average Rectified (Io)	Technology	Mounting Type	Package / Case	Current - Reverse Leakage	Voltage - DC Reverse (Vr) (Max)	Operating Temperature - Junction (Min)	Operating Temperature - Junction (Max)
LITTELFUSE DSA1-18D	1.34 V	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	2.3 A	Avalanche	Through Hole	Radial	700 µA	1800 V	-40 °C	150 °C
LITTELFUSE DSA1-12D	1.34 V	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	2.3 A	Avalanche	Through Hole	Radial	700 µA	1200 V	-40 °C	150 °C
LITTELFUSE DSA1-16D	1.34 V	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	2.3 A	Avalanche	Through Hole	Radial	700 µA	1600 V	-40 °C	150 °C

Catalog

PowerDiodeDisc-Rectifier FP-case(oilprf)

Description

The discrete Avalanche diode series comes with a broad variety of packages and breakdown voltages up to 1800V. Improved designs offer in addition to a high rectification performance an excellent surge reverse dissipation capability.
