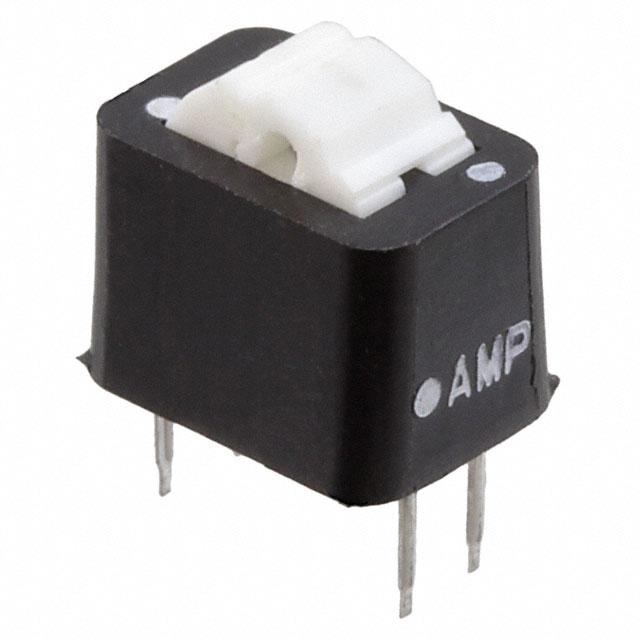

435470 Series

Catalog

SW ROCKER DIP DPDT 0.025A 24V

Part	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Level	Current Rating	Number of Positions	Mounting Type	Pitch	Pitch Type	Voltage Rating	Termination Style	Contact Finish	Circuit	Contact Material	Washable	Height Above Board	Actuator Type	Mechanical Life (Cycles)	Electrical Life (Cycles)	Length	Body Material
TE Connectivity AMP Connectors 435470-9	-55 °C	105 °C	Raised	0.025 A	2	Through Hole	0.1 in	Full	24 V	PC Pin	Gold	DPDT	Copper Alloy	No	0.36 in	Rocker	7000 Cycles	7000	0.88 in	Glass Filled PET Polyester
TE Connectivity AMP Connectors 5-435470-2			Raised		6	Through Hole						SPDT		No		Standard
TE Connectivity AMP Connectors 5-435470-3			Raised		8	Through Hole						SPDT		No		Standard
TE Connectivity AMP Connectors 435470-5	-55 °C	105 °C	Raised	0.025 A	1	Through Hole	0.1 in	Full	24 V	PC Pin	Gold	DPDT	Copper Alloy	No	0.36 in	Rocker	7000 Cycles	7000	0.48 in	Glass Filled PET Polyester
TE Connectivity AMP Connectors 3-435470-1	-55 °C	105 °C	Raised	0.025 A	1	Through Hole	0.1 in	Full	24 V	PC Pin	Gold	DPDT	Copper Alloy	No	0.46 in	Toggle	7000 Cycles	7000	0.48 in	Glass Filled PET Polyester
