ACC02E22 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT FMALE 4P SILVER CRIMP

Part	Contact Material	Applications	Ingress Protection	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Qualification	Color	Mounting Type	Shell Material	Number of Positions	Mounting Feature	Primary Material	Fastening Type	Shielding	Orientation	Connector Type	Shell Finish	Contact Finish - Mating	Cable Opening	Shell Size - Insert Width	Shell Size - Insert Length
Amphenol Aerospace Operations ACC02E22-22S-003	Copper Alloy	Automotive Industrial	Environment Resistant	22	22	Crimp	125 °C	-55 °C	MIL-5015 Derivative	Olive Drab	Panel Mount	Aluminum	4	Flange	Metal	Threaded	Unshielded	N (Normal)	Female Sockets Receptacle	Olive Drab Cadmium	Silver	1.25 in
Amphenol Aerospace Operations ACC02E22-14S-003	Copper Alloy	Automotive Industrial	Environment Resistant			Crimp	125 °C	-55 °C	MIL-5015 Derivative	Olive Drab	Panel Mount	Aluminum	19	Flange	Metal	Threaded	Unshielded	N (Normal)	Female Sockets Receptacle	Olive Drab Cadmium	Silver	1.25 in	14 mm	22 mm
Amphenol Aerospace Operations ACC02E-22-22P(003)	Copper Alloy	Automotive Industrial	Environment Resistant	22	22	Crimp	125 °C	-55 °C	MIL-5015 Derivative	Olive Drab	Panel Mount	Aluminum	4	Flange	Metal	Threaded	Unshielded	N (Normal)	Male Pins Receptacle	Olive Drab Cadmium	Silver	1.25 in

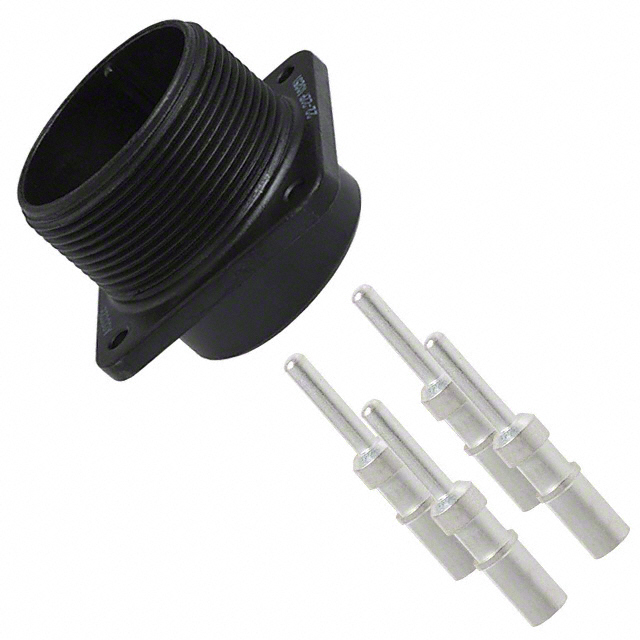

Amphenol Aerospace Operations ACC02E22-22P(025)	Copper Alloy	Automotive Industrial	Environment Resistant	22	22	Crimp	125 °C	-55 °C	MIL-5015 Derivative	Black	Panel Mount	Aluminum	4	Flange	Metal	Threaded		N (Normal)	Male Pins Receptacle	Black Zinc Cobalt	Silver	1.25 in
Amphenol Aerospace Operations ACC02E22-1S-003	Copper Alloy	Automotive Industrial	Environment Resistant			Crimp	125 °C	-55 °C	MIL-5015 Derivative	Olive Drab	Panel Mount	Aluminum	2	Flange	Metal	Threaded	Unshielded	N (Normal)	Female Sockets Receptacle	Olive Drab Cadmium	Silver	1.25 in	1 mm	22 mm
Amphenol Aerospace Operations ACC02E22-2S	Copper Alloy	Automotive Industrial	Environment Resistant			Crimp	125 °C	-55 °C	MIL-5015 Derivative	Olive Drab	Panel Mount	Aluminum	3	Flange	Metal	Threaded	Unshielded	N (Normal)	Female Sockets Receptacle	Olive Drab Cadmium	Silver	1.25 in	2 mm	22 mm
