M2022LL Series

Catalog

SWITCH TOGGLE DPDT 6A 125V

Part	Current Rating (Amps)	Features	Actuator Material	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Actuator Type	Illumination	Bushing Thread	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Electrical Life	Switch Function	Circuit	Mounting Type	Actuator Length [z]	Ingress Protection
NKK Switches M2022LL1W06	4 A 6 A	Epoxy Sealed Terminals	Brass Chrome Plated	30 V	-30 ░C	85 °C	125 V	Locking Lever	Non-Illuminated	1/4-40	Wire Wrap	6.5 mm	16.5 mm	25000 Steps	On-On	DPDT

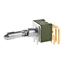

NKK Switches M2022LL2A30	4 A 6 A	Epoxy Sealed Terminals	Brass Chrome Plated	30 V	-30 ░C	85 °C	125 V	Locking Lever	Non-Illuminated	Unthreaded	PC Pin		16.5 mm	25000 Steps	On-On	DPDT	Through Hole Right Angle
NKK Switches M2022LL1W01-C	4 A 6 A	Red Cap	Brass Chrome Plated	30 V	-30 ░C	85 °C	125 V	Locking Lever	Non-Illuminated	1/4-40	Solder Lug	6.5 mm	16.5 mm	25000 Steps	On-On	DPDT
NKK Switches M2022LL4G01	0.4 VA	Epoxy Sealed Terminals	Brass Chrome Plated	28 V	-30 ░C	85 °C	28 V	Locking Lever	Non-Illuminated	M6 x 0.75	Solder Lug	6.5 mm	16.5 mm	25000 Steps	On-On	DPDT
NKK Switches M2022LL2G13	0.4 VA	Epoxy Sealed Terminals	Brass Chrome Plated	28 V	-30 ░C	85 °C	28 V	Locking Lever	Non-Illuminated	Unthreaded	PC Pin		16.5 mm	50000 Cycles	On-On	DPDT	Through Hole
NKK Switches M2022LL1G03	0.4 VA	Epoxy Sealed Terminals	Brass Chrome Plated	28 V	-30 ░C	85 °C	28 V	Locking Lever	Non-Illuminated	1/4-40	PC Pin	6.5 mm	16.5 mm	50000 Cycles	On-On	DPDT
NKK Switches M2022LL4A02/CUL	4 A 6 A		Brass Chrome Plated	30 V	-30 ░C	85 °C	125 V	Locking Lever	Non-Illuminated	M6 x 0.75	Quick Connect - 0.062" (1.5mm)	6.5 mm		25000 Steps	On-On	DPDT		5.1 mm
NKK Switches M2022LL4W03	4 A 6 A	Epoxy Sealed Terminals	Brass Chrome Plated	30 V	-30 ░C	85 °C	125 V	Locking Lever	Non-Illuminated	M6 x 0.75	PC Pin	6.5 mm	16.5 mm	25000 Steps	On-On	DPDT
NKK Switches M2022LL1G01	0.4 VA	Epoxy Sealed Terminals	Brass Chrome Plated	28 V	-30 ░C	85 °C	28 V	Locking Lever	Non-Illuminated	1/4-40	Solder Lug	6.5 mm	16.5 mm	50000 Cycles	On-On	DPDT
NKK Switches M2022LL3G01	0.4 VA	Epoxy Sealed Terminals	Brass Chrome Plated	28 V	-30 ░C	85 °C	28 V	Locking Lever	Non-Illuminated	1/4-40	Solder Lug	6.5 mm	16.5 mm	50000 Cycles	On-On	DPDT			IP67 - Dust Tight Waterproof
