C6D20065 Series
Manufacturer: Wolfspeed, Inc.
Beta
⌘K
DIODE SIL CARB 650V 64A TO2632
| Part | Package / Case | Operating Temperature - Junction (Max) | Operating Temperature - Junction (Min) | Speed - Fast Recovery (Minimum) | Speed | Speed - Recovery Current | Package Name | Current - Average Rectified (Io) | Mounting Type | Voltage - Forward (Vf) (Max) | Reverse Recovery Time (trr) | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Reverse Leakage | Capacitance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

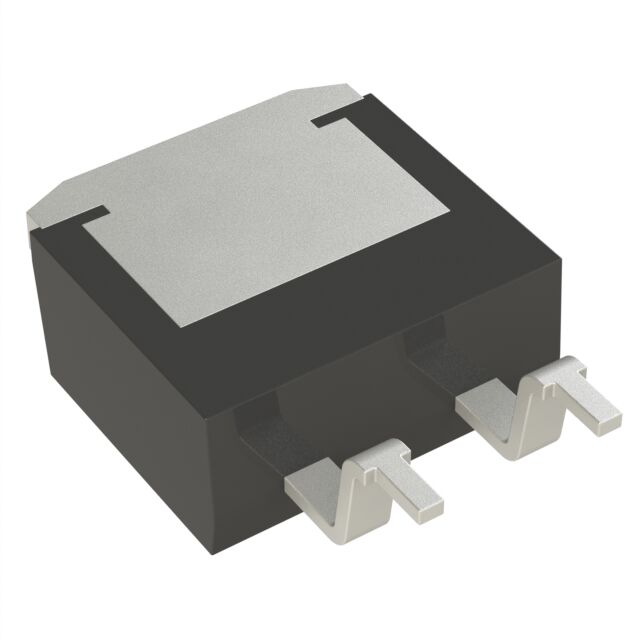

 Wolfspeed, Inc. | D2PAK (2 Leads + Tab) TO-263-3 TO-263AB | 175 °C | -55 °C | 500 mA | No Recovery Time | 500 mA 500 mA | TO-263-2 | 64 A | Surface Mount | 1.27 V | 0 ns | SiC (Silicon Carbide) Schottky | 650 V | ||
 Wolfspeed, Inc. | TO-220-2 | 175 °C | -55 °C | 500 mA | No Recovery Time | 500 mA 500 mA | TO-220-2 | 66 A | Through Hole | 1.5 V | 0 ns | SiC (Silicon Carbide) Schottky | 650 V | 80 µA | 1153 pF |
