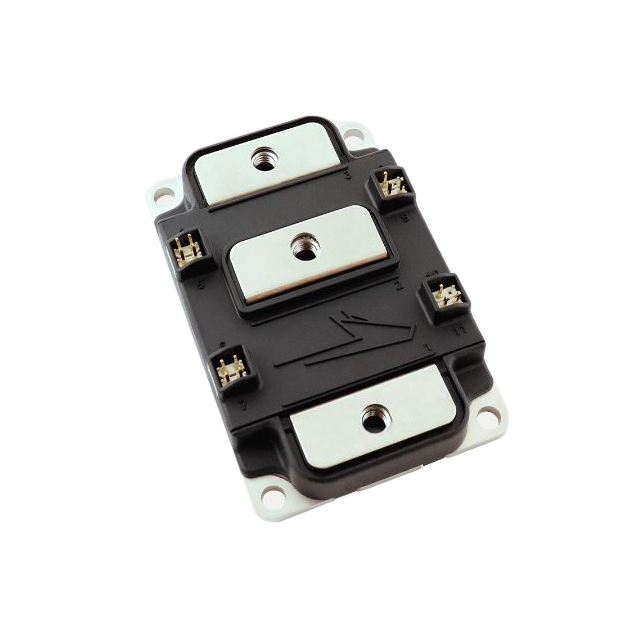

CAB425M12 Series
Manufacturer: Wolfspeed, Inc.
Beta
⌘K
SIC 2N-CH 1200V 450A
| Part | Rds On (Max) | Gate Charge (Max) | Technology | Operating Temperature (Max) | Operating Temperature (Min) | Drain to Source Voltage (Vdss) | Channel Count | Configuration - Features | Configuration | Mounting Type | Vgs(th) (Max) | Current - Continuous Drain (Id) | Input Capacitance (Ciss) (Max) | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Wolfspeed, Inc. | 4.2 mOhm | 1135 nC | Silicon Carbide (SiC) | 175 °C | -40 °C | 1200 V | 2 | Half Bridge | N-Channel | Chassis Mount | 3.6 V | 450 A | 30.7 nF 30.7 nF | Module |
