OQ05 Series

Catalog

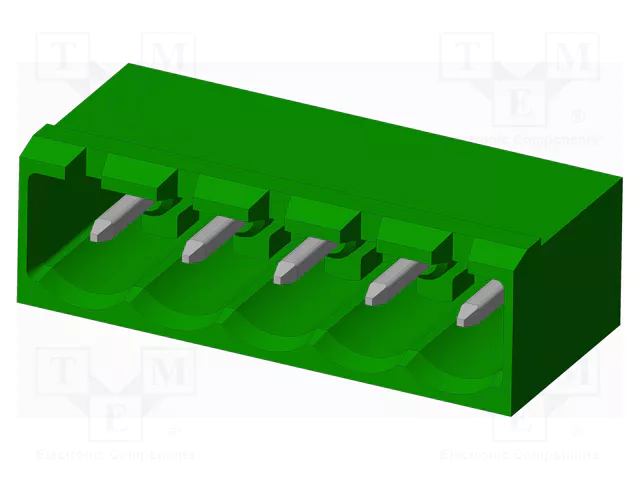

TERM BLOCK HDR 5POS 90DEG 5MM

...

Part	Voltage - UL	Number of Positions	Header Orientation Angle	Header Orientation	Termination Style	Color	Type	Number of Levels	Operating Temperature (Min)	Operating Temperature (Max)	Positions Per Level	Contact Mating Finish	Current - UL	Pitch	Mounting Type	Contact Tail Length	Housing Material	Contact Material	Material Flammability Rating	Insulation Height	Features
McGill Microwave Systems OQ0570810000G	300 V	5	90 °	Right Angle	Solder	Gray	Header Male Pins Shrouded (2 Side)	1	-40 °C	115 °C	5	Tin	20 A	0.197 in	Through Hole	0.138 in	Thermoplastic	Copper	UL94 V-0	0.335 in
McGill Microwave Systems OQ0500810000G	300 V	5	90 °	Right Angle	Solder	Gray	Header Male Pins Shrouded (2 Side)	1	-40 °C	115 °C	5	Tin	20 A	0.3 in	Through Hole	0.138 in	Thermoplastic	Copper	UL94 V-0	0.335 in
McGill Microwave Systems OQ0575500000G	300 V	5		Vertical	Solder	Green	Header Male Pins Shrouded (4 Side)	1	-40 °C	115 °C	5	Tin	20 A	0.197 in	Through Hole	0.157 in	Thermoplastic	Copper	UL94 V-0	0.472 in	Mating Flange
McGill Microwave Systems OQ0554510000G	300 V	5	90 °	Right Angle	Solder	Green	Header Male Pins Shrouded (4 Side)	1	-40 °C	115 °C	5	Tin	12 A 20 A	5.08 mm	Through Hole	0.138 in	Thermoplastic Resin	Copper Alloy	UL94 V-0	0.335 in
McGill Microwave Systems OQ0535510000G	300 V	5	90 °	Right Angle	Solder	Green	Header Male Pins Shrouded (4 Side)	1	-40 °C	115 °C	5	Tin	10 A	0.15 in	Through Hole	0.138 in	Thermoplastic	Copper	UL94 V-0	0.283 in	Mating Flange
McGill Microwave Systems OQ0570500000G	300 V	5		Vertical	Solder	Green	Header Male Pins Shrouded (2 Side)	1	-40 °C	115 °C	5	Tin	20 A	0.197 in	Through Hole	0.157 in	Thermoplastic	Copper	UL94 V-0	0.472 in
McGill Microwave Systems OQ0505010000G	300 V	5	90 °	Right Angle	Solder	Black	Header Male Pins Shrouded (4 Side)	1	-40 °C	115 °C	5	Tin	20 A	0.3 in	Through Hole	0.138 in	Thermoplastic	Copper	UL94 V-0	0.335 in	Mating Flange
McGill Microwave Systems OQ05A1510000G	300 V	5	90 °	Right Angle	Solder	Green	Header Male Pins Shrouded (4 Side)	1	-40 °C	115 °C	5	Tin	20 A	0.295 in	Through Hole		Thermoplastic	Copper	UL94 V-0	0.335 in
McGill Microwave Systems OQ0554510300G	300 V	5	90 °	Right Angle	Solder	Green	Header Male Pins Shrouded (4 Side)	1	-40 °C	115 °C	5	Tin	20 A	5.08 mm	Through Hole	0.138 in	Thermoplastic	Copper	UL94 V-0	0.335 in	Locking Ramp
McGill Microwave Systems OQ0554010000G	300 V	5	90 °	Right Angle	Solder	Black	Header Male Pins Shrouded (4 Side)	1	-40 °C	115 °C	5	Tin	20 A	5.08 mm	Through Hole	0.138 in	Thermoplastic	Copper	UL94 V-0	0.335 in
