MMPD-015 Series
Manufacturer: Omnetics
Beta
⌘K

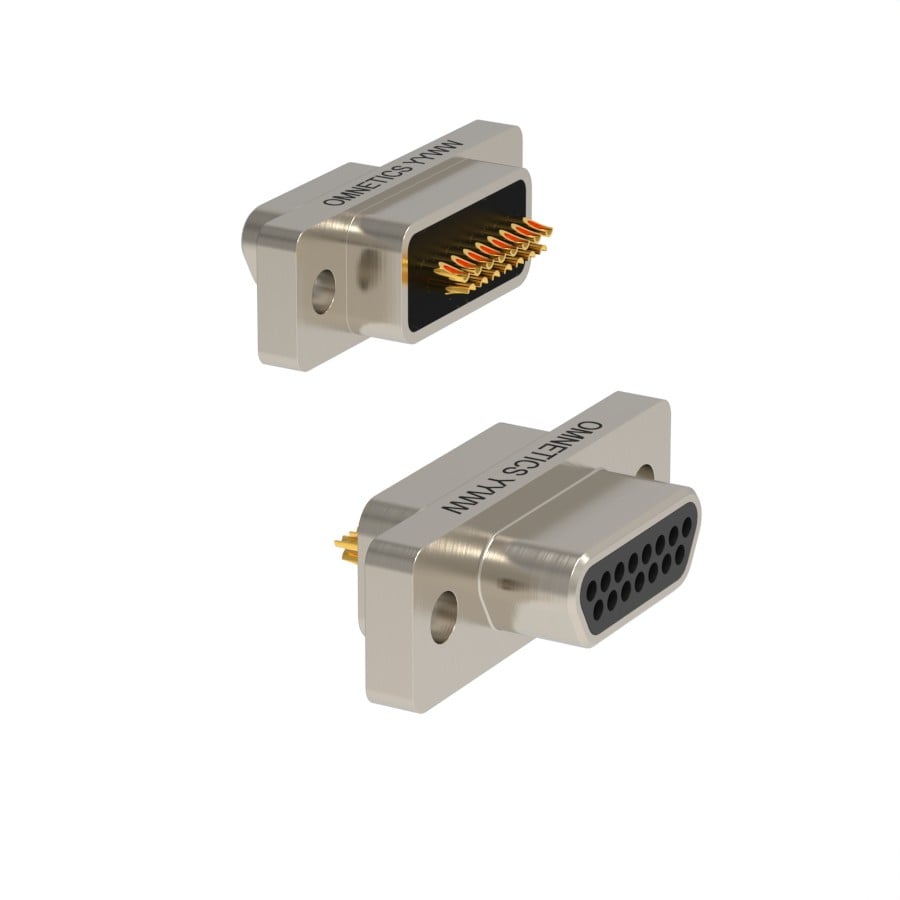

CONN MICRO-D PLUG 15POS SLDR CUP
| Part | Shell Material | Finish | Flange Feature | Contact Finish Thickness | Connector Style | Contact Type | Contact Finish | Connector Type | Termination | Current Rating (Per Contact) | Primary Material | Connector Layout Pitch | Connector Layout Row to Row | Number of Positions | Number of Rows | Mounting Type | Shell Material, Finish | Contact Form | Contact Material | Operating Temperature (Max) | Operating Temperature (Min) | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omnetics | Aluminum | Electroless Nickel Nickel Plated | Housing Shell (Unthreaded) | 50 µin | D-Type Micro-D | Signal | Gold | Male Pins Plug | Solder Cup | 3 A | Metal | 0.05 | 0.05 | 15 | 2 | Free Hanging (In-Line) | Aluminum Electroless Nickel Plated | Stamped | Copper Alloy | 125 °C | -55 °C | Thermoplastic |
