1521-00 Series

Catalog

2.92MM JACK R/A 50OHM EDGE MNT

Part	Insertion Loss	Mating Cycles	Body Material	Body Finish	Center Contact Plating	Operating Temperature (Min)	Operating Temperature (Max)	Impedance	Shield Termination	Fastening Type	Connector Type	Frequency - Max	Contact Termination	Number of Ports	Housing Color	Connector Plug Diameter	Mounting Type	Center Contact Material	Dielectric Material	Mounting Feature

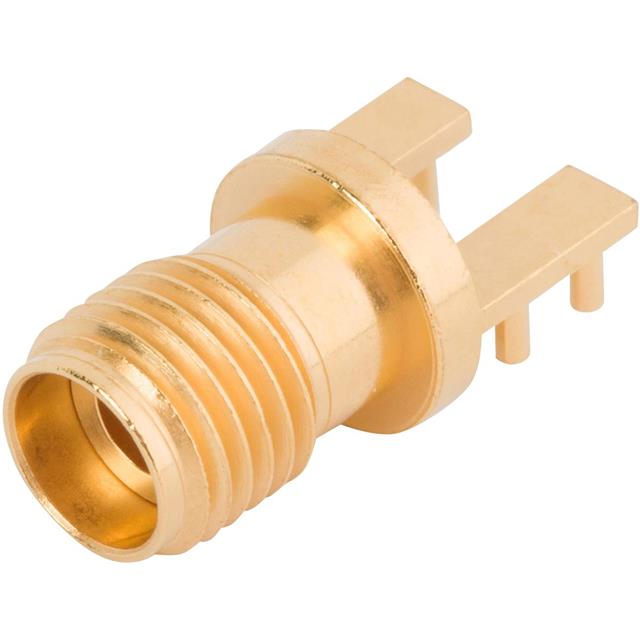

McGill Microwave Systems 1521-00002	0.25 dB	500 cycles	Brass	Gold	Gold	-65 °C	165 °C	50 Ohm	Solder	Threaded	Female Socket Jack	40 Gbps	Solder	1	Gold	2.92 mm	Board Edge End Launch	Beryllium Copper

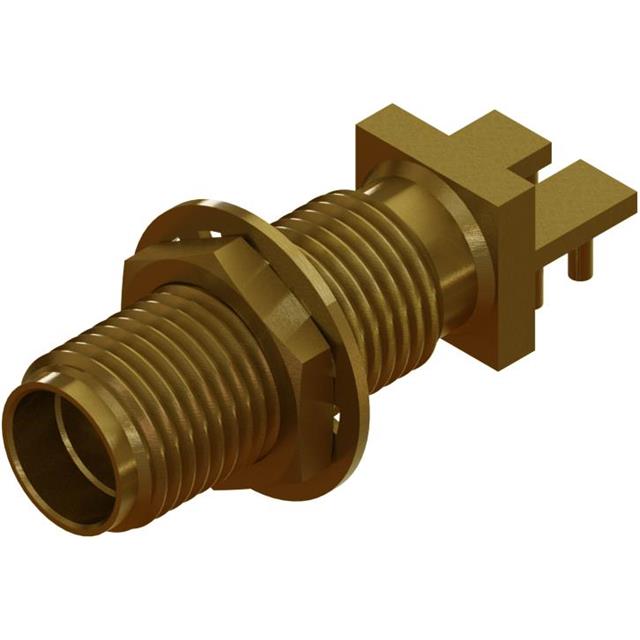

McGill Microwave Systems 1521-00009			Brass	Nickel	Gold			50 Ohm	Solder	Threaded	Female Socket Jack	40 Gbps	Solder	1	Silver	2.92 mm	Board Edge End Launch Panel Mount Right Angle	Beryllium Copper	Polyetherimide (PEI)	Bulkhead Front Side Nut

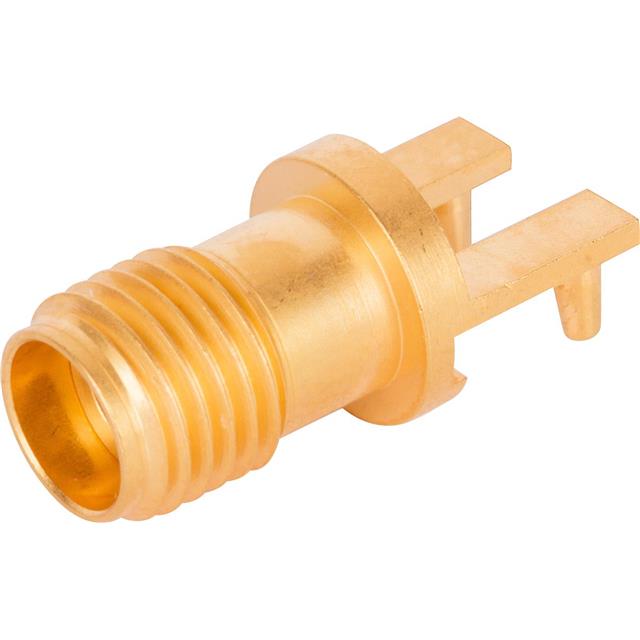

McGill Microwave Systems 1521-00005		500 cycles	Brass	Gold	Gold	-65 °C	165 °C	50 Ohm	Solder	Threaded	Female Socket Jack	40 Gbps	Solder	1	Gold	2.92 mm	Board Edge End Launch	Beryllium Copper	Polyetherimide (PEI)
