CHA Pro9 Series

Catalog

WHITE LEDS XLAMP CHA LED WHITE PRO9 WHITE 40H

Part	Configuration	Viewing Angle	Height	CRI (Color Rendering Index)	Lens Type	Light Emitting Surface (LES) Diameter	Voltage - Forward (Vf) (Typ)	Color	Type	Current - Test	Current - Max	Size / Dimension Width	Size / Dimension Length	Temperature - Test	CCT (K)	Luminous Flux (Typical)	CCT Description	Lumens/Watt
CreeLED, Inc. CHA0304-R160-00PG0Z0A40H	Square	114 °	1.5 mm	95	Flat	3.3 mm	21 V	Neutral White	Chip On Board (COB)	175 mA	300 mA	13.5 mm	13.5 mm	85 °C	4000 K
CreeLED, Inc. CHA0304-R160-00PG0U0A30U	Square	114 °	1.5 mm	90	Flat	3.3 mm	21 V	Warm White	Chip On Board (COB)	175 mA	300 mA	13.5 mm	13.5 mm	85 °C	3000 K
CreeLED, Inc. CHA0304-R160-00PG0Z0A40H	Square	114 °	1.5 mm	95	Flat	3.3 mm	21 V	Neutral White	Chip On Board (COB)	175 mA	300 mA	13.5 mm	13.5 mm	85 °C	4000 K
CreeLED, Inc. CHA0612-0000-00PN0U0A31Q	Square	114 °	1.5 mm	90	Flat	6 mm	36 V	Warm White	Chip On Board (COB)	350 mA	600 mA	13.5 mm	13.5 mm	85 °C	3100 K	1521 lm	3-Step MacAdam Ellipse	121 lm/W
CreeLED, Inc. CHA0825-0000-00PN0U0A35H	Square	114 °	1.5 mm	90	Flat	8.5 mm	36 V	Warm White	Chip On Board (COB)	700 mA	1.2 A	19 mm	19 mm	85 °C	3500 K	3399 lm	2-Step MacAdam Ellipse	135 lm/W
CreeLED, Inc. CHA0304-R160-00PG0U0A30U	Square	114 °	1.5 mm	90	Flat	3.3 mm	21 V	Warm White	Chip On Board (COB)	175 mA	300 mA	13.5 mm	13.5 mm	85 °C	3000 K
CreeLED, Inc. CHA0304-0000-00PG0U0A30Q	Square	114 °	1.5 mm	90	Flat	3.3 mm	21 V	Warm White	Chip On Board (COB)	175 mA	300 mA	13.5 mm	13.5 mm	85 °C	3000 K	442 lm	3-Step MacAdam Ellipse	120 lm/W
CreeLED, Inc. CHA0612-0000-00PN0U0A31Q	Square	114 °	1.5 mm	90	Flat	6 mm	36 V	Warm White	Chip On Board (COB)	350 mA	600 mA	13.5 mm	13.5 mm	85 °C	3100 K	1521 lm	3-Step MacAdam Ellipse	121 lm/W
CreeLED, Inc. CHA0304-R160-00PG0Z0AL7C	Square	114 °	1.5 mm	95	Flat	3.3 mm	21 V		Chip On Board (COB)	175 mA	300 mA	13.5 mm	13.5 mm	85 °C

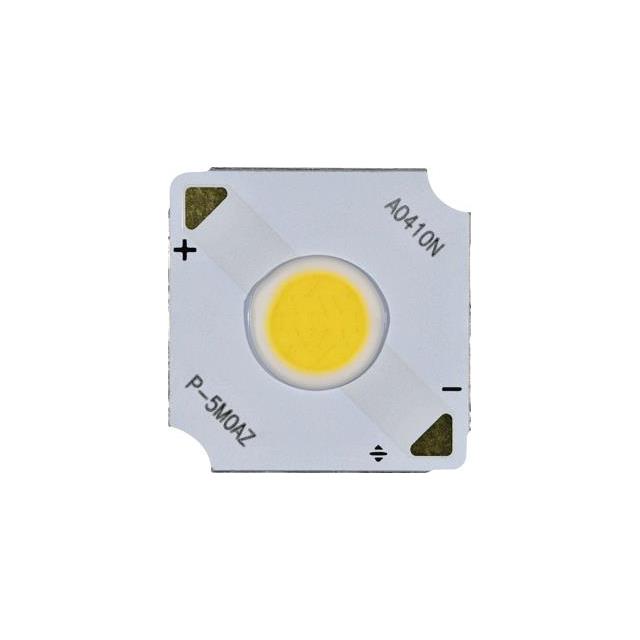

CreeLED, Inc. CHA0410-0000-00PD0Z0A40H	Square	114 °	1.5 mm	95	Flat	4.2 mm	12 VAC	Neutral White	Chip On Board (COB)	525 mA	900 mA	13.5 mm	13.5 mm	85 °C	4000 K	809 lm	2-Step MacAdam Ellipse	128 lm/W
