V719 Series

Catalog

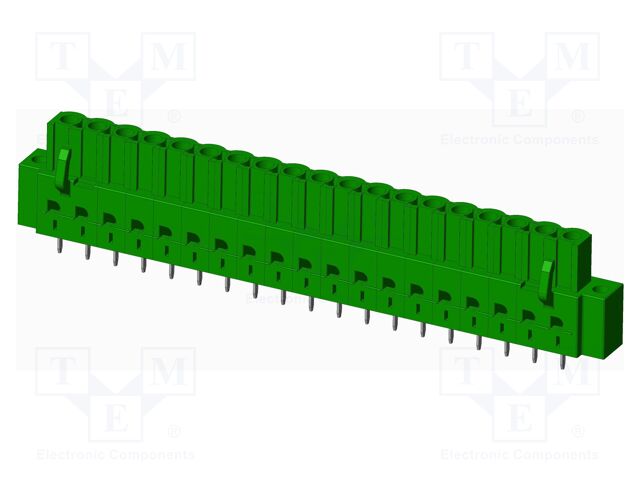

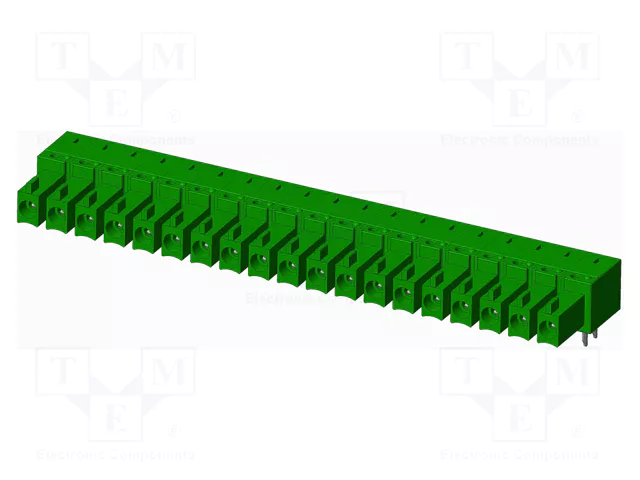

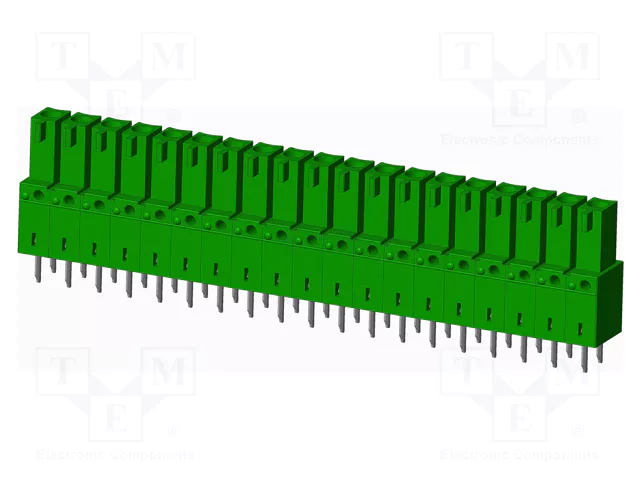

CONNECTOR: PLUGGABLE TERMINAL BLOCK; SOCKET; FEMALE; 8A; 300V

Part	Contact Tail Length	Insulation Height	Material Flammability Rating	Housing Material	Contact Material	Header Orientation Angle	Header Orientation	Color	Positions Per Level	Current - UL	Contact Mating Finish	Voltage - UL	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Type	Mounting Type	Number of Positions	Number of Levels	Pitch	Features
McGill Microwave Systems V71931510000G	0.134 in	0.26 in	UL94 V-0	Thermoplastic	Phosphor Bronze	90 °	Right Angle	Green	19	8 A	Tin	300 V	-40 °C	115 °C	Solder	Female Sockets Header	Through Hole	19	1	0.15 in
McGill Microwave Systems V71951510000G	0.138 in		UL94 V-0	Thermoplastic	Copper	90 °	Right Angle	Green	19	20 A	Tin	300 V	-40 °C	115 °C	Solder	Female Sockets Header	Through Hole	19	1	5.08 mm	Retention Latches
McGill Microwave Systems V71971500000G	0.138 in	0.748 in	UL94 V-0	Thermoplastic	Phosphor Bronze		Vertical	Green	19	10 A	Tin	300 V	-40 °C	115 °C	Solder	Female Sockets Header	Through Hole	19	1	0.197 in	Retention Latches
McGill Microwave Systems V71932500000G	0.134 in	0.571 in	UL94 V-0	Thermoplastic	Phosphor Bronze		Vertical	Green	19	8 A	Tin	300 V	-40 °C	115 °C	Solder	Female Sockets Header	Through Hole	19	1	0.15 in	Mating Flange
McGill Microwave Systems V71911500000G	0.134 in	0.571 in	UL94 V-0	Thermoplastic	Phosphor Bronze		Vertical	Green	19	4 A	Tin	300 V	-40 °C	115 °C	Solder	Female Sockets Header	Through Hole	19	1	0.138 in
McGill Microwave Systems V71972500000G	0.138 in	0.748 in	UL94 V-0	Thermoplastic	Phosphor Bronze		Vertical	Green	19	10 A	Tin	300 V	-40 °C	115 °C	Solder	Female Sockets Header	Through Hole	19	1	0.197 in	Mating Flange Retention Latches
McGill Microwave Systems V71971510000G	0.138 in		UL94 V-0	Thermoplastic	Phosphor Bronze	90 °	Right Angle	Green	19	10 A	Tin	300 V	-40 °C	115 °C	Solder	Female Sockets Header	Through Hole	19	1	0.197 in	Retention Latches
McGill Microwave Systems V71911510000G	0.134 in	0.26 in	UL94 V-0	Thermoplastic	Phosphor Bronze	90 °	Right Angle	Green	19	4 A	Tin	300 V	-40 °C	115 °C	Solder	Female Sockets Header	Through Hole	19	1	0.138 in
McGill Microwave Systems V71952510000G	0.138 in		UL94 V-0	Thermoplastic	Copper	90 °	Right Angle	Green	19	20 A	Tin	300 V	-40 °C	115 °C	Solder	Female Sockets Header	Through Hole	19	1	5.08 mm	Mating Flange Retention Latches
