C091 11S008 Series
Manufacturer: McGill Microwave Systems
Beta
⌘K

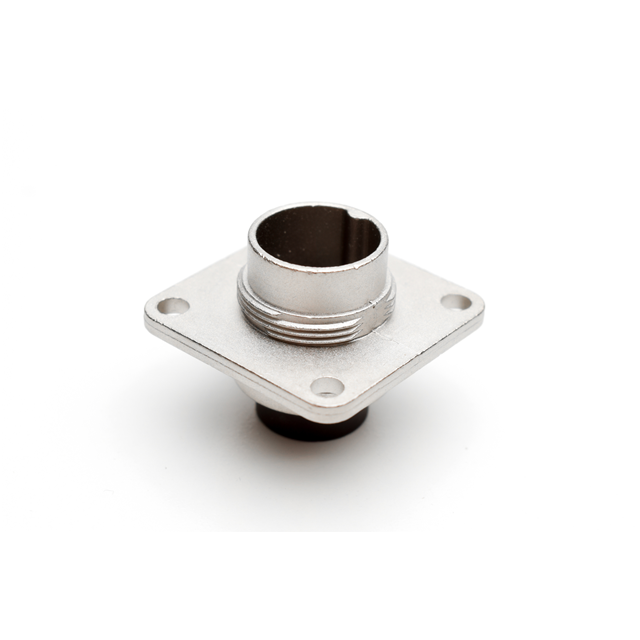

FLANGE MOUNT MALE METAL RECEPTAC
| Part | Mounting Feature | Shell Material | Operating Temperature (Max) | Operating Temperature (Min) | Housing Color | Shell Finish | Connector Type | Fastening Type | Orientation | Ingress Protection Description | Ingress Protection IP Rating | Contact Size | Type | Material Flammability Rating | Contact Type | Number of Positions | Insert Material | Shielding | Mounting Type | Contact Shape | Shell Size - Insert | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 McGill Microwave Systems | Flange | Zinc Die Cast | 100 °C | -40 °C | Silver | Nickel | Receptacle Housing | Threaded | Keyed | Dust Tight Water Resistant Waterproof | IP65 IP67 IP69K | 1.5 mm | For Male Pins | UL94 V-0 | Crimp | 8 | Thermoplastic | Shielded | Panel Mount | Circular | M16-8 | Contacts Not Included |
