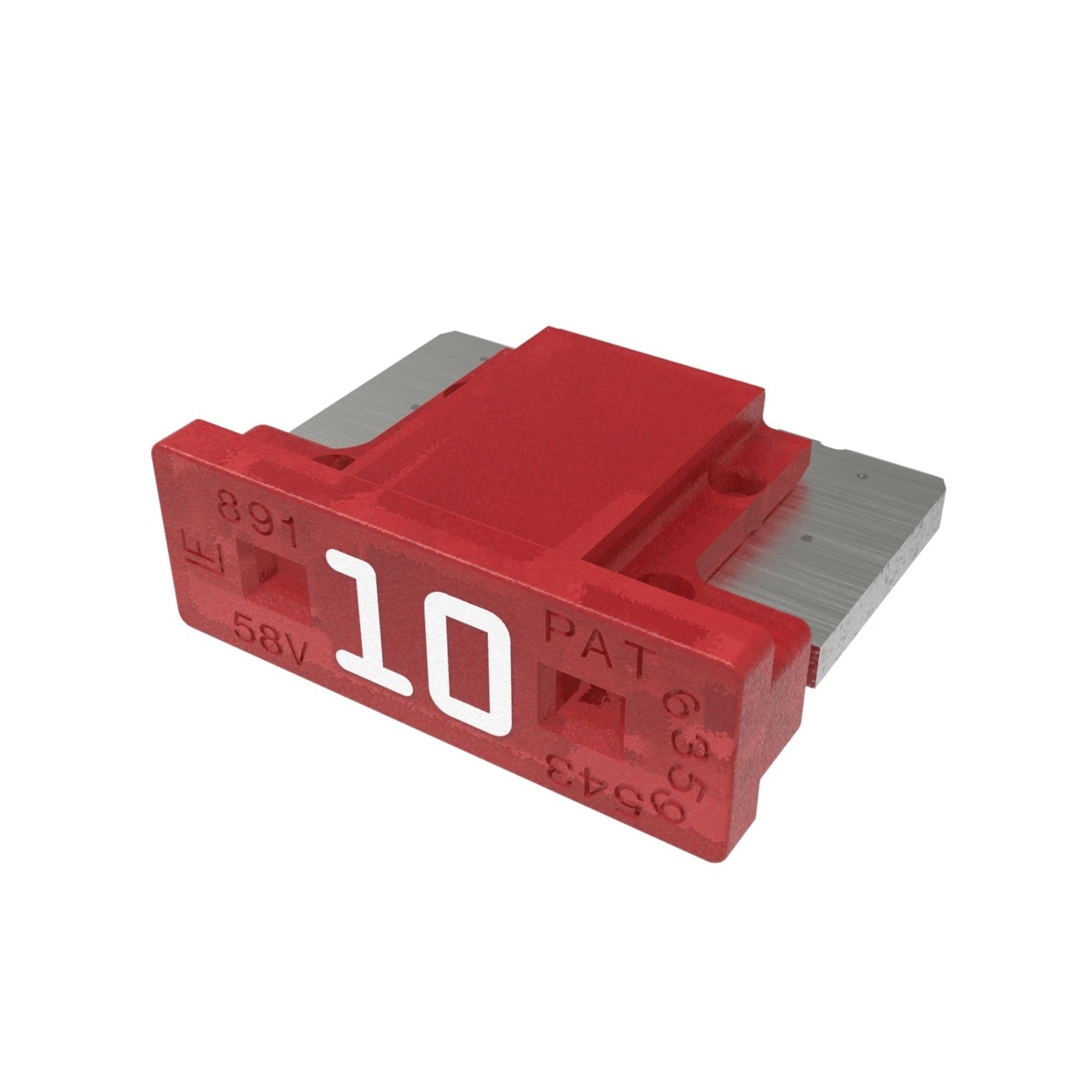

Fuse - LP Mini 58VDC 10.9mm Blade Ag 10A
Description
AI
This 10 A Low Profile MINI® 10.9 mm fuse protects circuit protection as well as larger and heavier MINI 58V blade fuses.
Beta
⌘K
Fuse - LP Mini 58VDC 10.9mm Blade Ag 10A
Fuse - LP Mini 58VDC 10.9mm Blade Ag 10A
| Part | DC Cold Resistance | Package / Case | Breaking Capacity | Size / Dimension Length | Size / Dimension Height | Size / Dimension Width | Operating Temperature (Max) | Operating Temperature (Min) | Mounting Type | Color | Voltage Rating - DC | Fuse Type | Melting I²t | Current Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 7.59 Ohms | Blade Miniature (Low Profile) | 1 kA | 0.429 in | 0.344 in | 0.15 in | 125 °C | -40 °C | Requires Holder | Red | 58 VDC | Automotive | 102 | 10 A |
