G3VM-40 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

SSR RELAY SPST-NO 120MA 0-400V

Part	Circuit	Package Length	Package Name	Package Width	Termination Style	Voltage - Load (Max)	Voltage - Input	Operating Temperature (Min)	Operating Temperature (Max)	Output Type	On-State Resistance (Max)	Mounting Type	Load Current
Omron Electronics Inc-EMC Div G3VM-401DY	SPST-NO (1 Form A)	0.3 in	4-SMD 4-SMT	7.62 mm	Gull Wing	400 V	1.63 VDC	-40 °C	85 °C	AC DC	35 Ohm	Surface Mount	120 mA
Omron Electronics Inc-EMC Div G3VM-401E(TR)	SPST-NO (1 Form A)	0.3 in	6-SMD	7.62 mm	Gull Wing	400 V	1.15 V	-40 °C	85 °C	AC DC	35 Ohm	Surface Mount	120 mA
Omron Electronics Inc-EMC Div G3VM-401DY1	SPST-NO (1 Form A)	0.3 in	4-SMD	7.62 mm	Gull Wing	400 V	1.27 VDC	-40 °C	85 °C	AC DC	35 Ohm	Surface Mount	120 mA
Omron Electronics Inc-EMC Div G3VM-401G(TR)	SPST-NO (1 Form A)	0.173 in	4-SOP	4.4 mm	Gull Wing	400 V	1.15 V	-40 °C	85 °C	AC DC	35 Ohm	Surface Mount	120 mA
Omron Electronics Inc-EMC Div G3VM-401AY1	SPST-NO (1 Form A)	0.3 in	4-DIP	7.62 mm	PC Pin	400 V	1.27 VDC	-40 °C	85 °C	AC DC	35 Ohm	Through Hole	120 mA
Omron Electronics Inc-EMC Div G3VM-401EY	SPST-NO (1 Form A)	0.3 in	6-SMD	7.62 mm	Gull Wing	400 V	1.15 V	-40 °C	85 °C	AC DC	35 Ohm	Surface Mount	120 mA

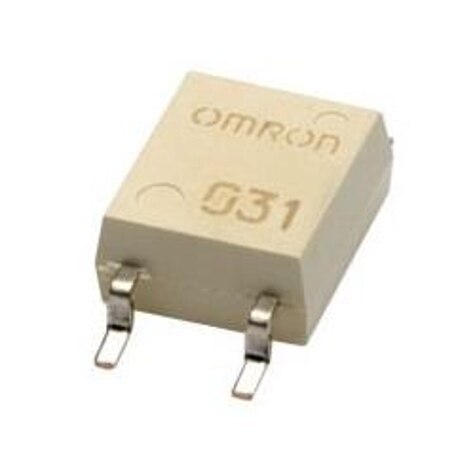

Omron Electronics Inc-EMC Div G3VM-401VY	SPST-NO (1 Form A)	0.179 in	4-SOP	4.55 mm	Gull Wing	400 V	1.27 VDC	-40 °C	85 °C	AC DC	65 Ohms	Surface Mount	110 mA
Omron Electronics Inc-EMC Div G3VM-402F(TR)	SPST-NO (1 Form A) x 2	0.3 in	8-SMD		Gull Wing	400 V	1.15 V	-40 °C	85 °C	AC DC	35 Ohm	Surface Mount	120 mA
Omron Electronics Inc-EMC Div G3VM-401VY(TR05)	SPST-NO (1 Form A)	0.179 in	4-SOP	4.55 mm	Gull Wing	400 V	1.27 VDC	-40 °C	85 °C	AC DC	65 Ohms	Surface Mount	110 mA
Omron Electronics Inc-EMC Div G3VM-401EY(TR)	SPST-NO (1 Form A)	0.3 in	6-SMD	7.62 mm	Gull Wing	400 V	1.15 V	-40 °C	85 °C	AC DC	35 Ohm	Surface Mount	120 mA
