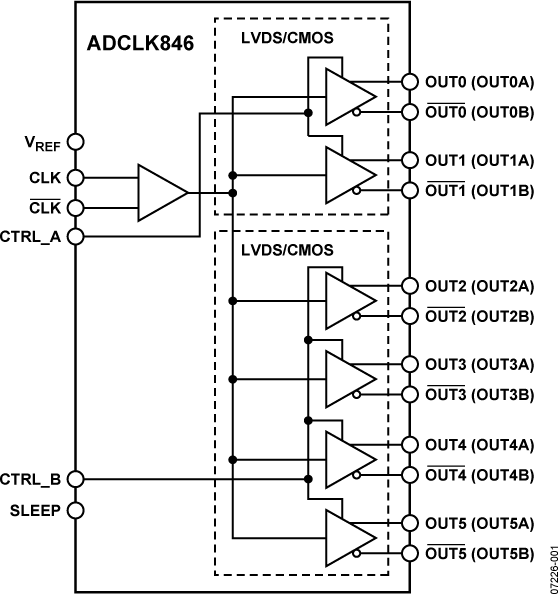

ADCLK846 Series

Catalog

CLOCK & TIMER DEVELOPMENT TOOLS EVALUATION KIT 1.8V 6:VDS/12 CMOS CL

Part	Primary Attributes	Function	Utilized IC / Part	Type	Contents	Secondary Attributes	Differential Input	Differential Output	Mounting Type	Frequency - Max	Input	Package / Case	Package Width	Package Name	Package Length	Output Ratio	Input Ratio	Number of Circuits	Operating Temperature (Min)	Operating Temperature (Max)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Output
Analog Devices Inc./Maxim Integrated ADCLK846/PCBZ	12 CMOS Outputs 6 LVDS 6 LVDS/12 CMOS Outputs	Clock Buffer Driver Receiver Translator	ADCLK846	Timing	Board	CMOS LVDS Outputs
Analog Devices Inc./Maxim Integrated ADCLK846BCPZ				Fanout Buffer (Distribution)			Yes	Yes	Surface Mount	1.2 GHz	CML CMOS HSTL LVDS LVPECL	24-WFQFN Exposed Pad CSP	4 mm	24-LFCSP	4 mm	6	1	1	-40 °C	85 °C	1.89 V	1.71 V	CMOS LVDS
Analog Devices Inc./Maxim Integrated ADCLK846BCPZ-REEL7				Fanout Buffer (Distribution)			Yes	Yes	Surface Mount	1.2 GHz	CML CMOS HSTL LVDS LVPECL	24-WFQFN Exposed Pad CSP	4 mm	24-LFCSP	4 mm	6	1	1	-40 °C	85 °C	1.89 V	1.71 V	CMOS LVDS
