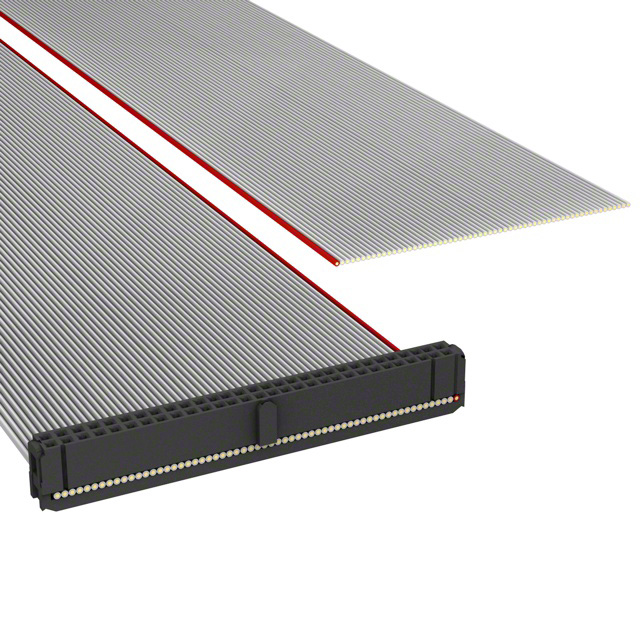

A1CXH Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE - AKC14H/AE14M/X

Part	Color	Contact Finish	Shielding	Number of Positions	Pitch - Cable	Pitch - Cable	Features	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Number of Rows	Cable Termination	Length [x]	Length [x]	Number of Positions
TE Connectivity Raychem Cable Protection A1CXH-1436M	Multiple Ribbon	Gold	Unshielded	14	0.05 "	1.27 mm	Polarizing Key	Socket to Cable	15 µin	0.38 µm	0.1 in	2.54 mm	2	IDC	3 ft	914.4 mm
TE Connectivity Raychem Cable Protection A1CXH-1636G		Gold	Unshielded		0.05 "	1.27 mm	Polarizing Key	Socket to Cable	15 µin	0.38 µm	0.1 in	2.54 mm	2	IDC	3 ft	914.4 mm	16
TE Connectivity Raychem Cable Protection A1CXH-2036G		Gold	Unshielded	20	0.05 "	1.27 mm	Polarizing Key	Socket to Cable	15 µin	0.38 µm	0.1 in	2.54 mm	2	IDC	3 ft	914.4 mm
TE Connectivity Raychem Cable Protection A1CXH-4036G		Gold	Unshielded	40	0.05 "	1.27 mm	Polarizing Key	Socket to Cable	15 µin	0.38 µm	0.1 in	2.54 mm	2	IDC	3 ft	914.4 mm
TE Connectivity Raychem Cable Protection A1CXH-3436M	Multiple Ribbon	Gold	Unshielded	34	0.05 "	1.27 mm	Polarizing Key	Socket to Cable	15 µin	0.38 µm	0.1 in	2.54 mm	2	IDC	3 ft	914.4 mm
TE Connectivity Raychem Cable Protection A1CXH-6436M	Multiple Ribbon	Gold	Unshielded	64	0.05 "	1.27 mm	Polarizing Key	Socket to Cable	15 µin	0.38 µm	0.1 in	2.54 mm	2	IDC	3 ft	914.4 mm
TE Connectivity Raychem Cable Protection A1CXH-6036G		Gold	Unshielded	60	0.05 "	1.27 mm	Polarizing Key	Socket to Cable	15 µin	0.38 µm	0.1 in	2.54 mm	2	IDC	3 ft	914.4 mm
TE Connectivity Raychem Cable Protection A1CXH-3036G		Gold	Unshielded	30	0.05 "	1.27 mm	Polarizing Key	Socket to Cable	15 µin	0.38 µm	0.1 in	2.54 mm	2	IDC	3 ft	914.4 mm
TE Connectivity Raychem Cable Protection A1CXH-2636G		Gold	Unshielded	26	0.05 "	1.27 mm	Polarizing Key	Socket to Cable	15 µin	0.38 µm	0.1 in	2.54 mm	2	IDC	3 ft	914.4 mm
TE Connectivity Raychem Cable Protection A1CXH-4036M	Multiple Ribbon	Gold	Unshielded	40	0.05 "	1.27 mm	Polarizing Key	Socket to Cable	15 µin	0.38 µm	0.1 in	2.54 mm	2	IDC	3 ft	914.4 mm
