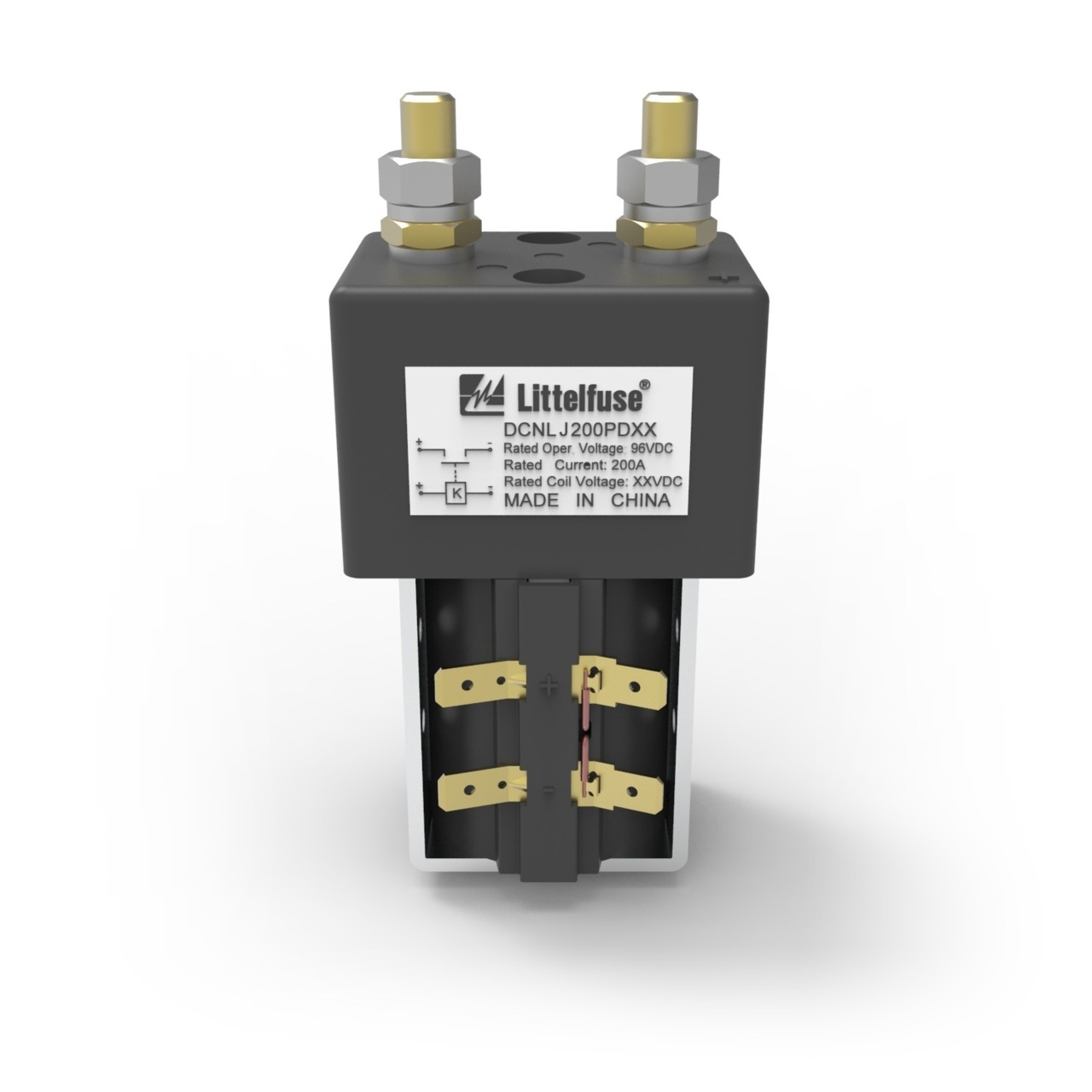

DCNLJ200PD24 Series

DCNLJ 200A 96V P 24Vcoil

Catalog

DCNLJ 200A 96V P 24Vcoil

Part	Coil Voltage	Contact Rating (Current)	Quick Connect Size (0.250")	Termination Style	Form A Count	Contact Form	Must Operate Voltage	Must Release Voltage	Operating Temperature (Min)	Operating Temperature (Max)	Switching Voltage DC (Max)	Mounting Type
LITTELFUSE DCNLJ200PD24	24 VDC	200 A	0.25 in	Quick Connect Screw Terminal	1	SPST-NO	16.8 VDC	2 VDC	-40 °C	85 °C	110 VDC	Chassis Mount

Catalog

DCNLJ 200A 96V P 24Vcoil

Description

Designed for high-current contact switching in electric control systems of communication power supplies, electro-motion forklifts, motor cars, trains, uninterruptible power supplies (UPS), and more, this 200A High-Current High-Voltage DC Contactor Relay has a normally open contact arrangement and features a contact voltage drop of ≤50 mV @ 100A.This model of the DCNLJ200 series (DCNLJ200PD24) DC contactor has a 24V coil and a blowout design with polarized contacts rated for 96V (typical) and 110V (max).
