626034 Series

Catalog

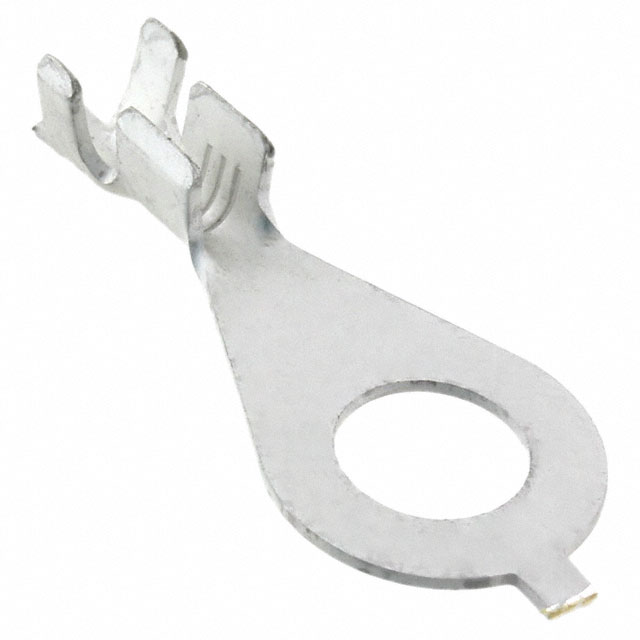

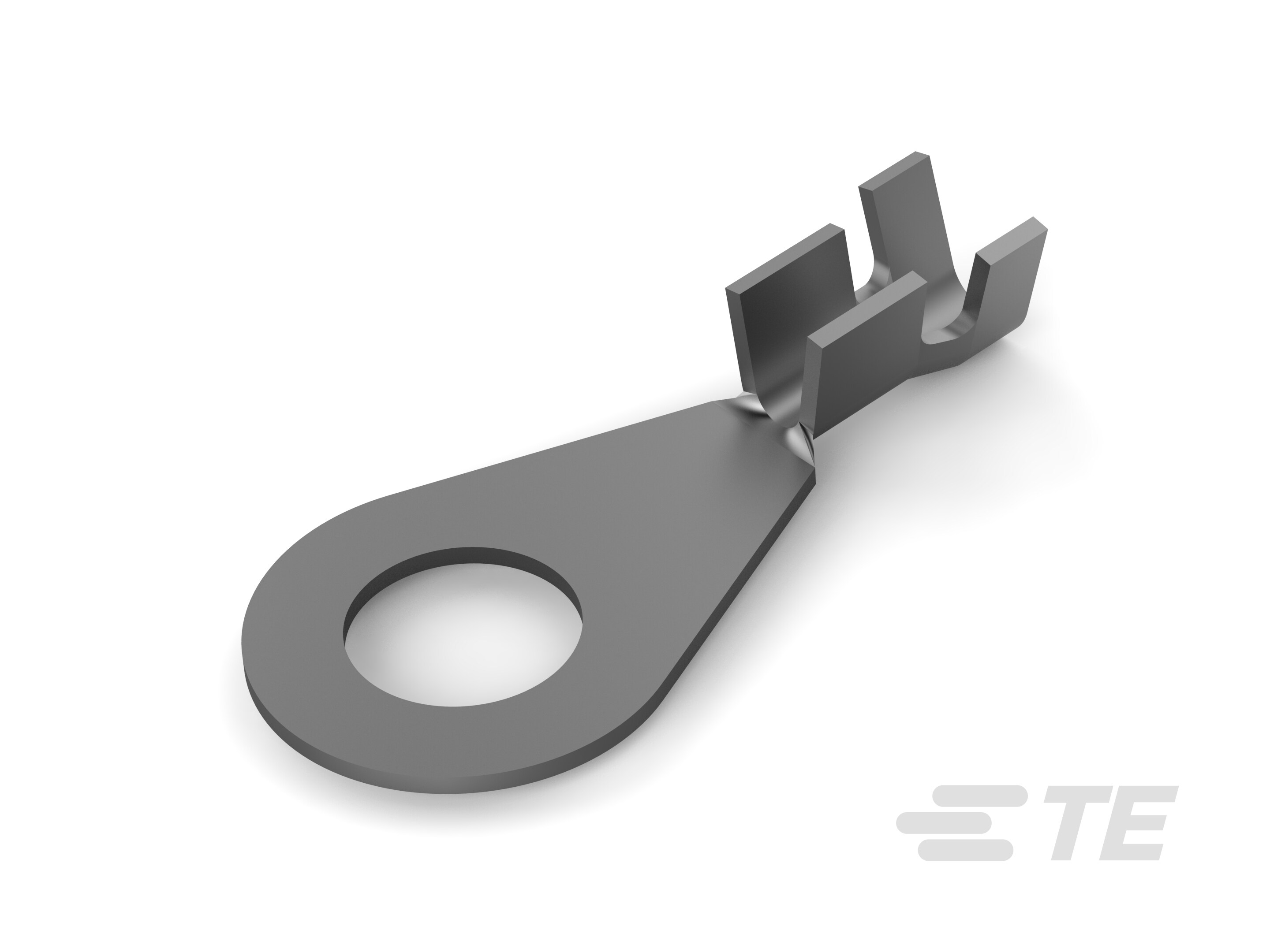

RING TONGUE TERMINAL ROHS COMPLIANT: YES

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Thickness	Width - Outer Edges	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Insulation	Terminal Type	Length - Overall	Contact Finish	Mounting Type	Termination	Contact Material
TE Connectivity AMP Connectors 626034-2	0.087 in	0.15 in	0.024 in	0.472 in	13 AWG	17 AWG	Non-Insulated	Circular	1.016 in	Tin	Free Hanging (In-Line)	Crimp	Brass
TE Connectivity AMP Connectors 626034-1	0.087 in	0.15 in	0.024 in	0.472 in	13 AWG	17 AWG	Non-Insulated	Circular	1.016 in		Free Hanging (In-Line)	Crimp	Brass
