SP20 Series

Catalog

CONTACT PIN 20-22AWG SZ20 CRIMP

Part	Contact Finish	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Contact Finish Thickness	Contact Termination	Wire Gauge or Range - AWG (Min)	Wire Gauge or Range - AWG (Max)	Type	Contact Material	Contact Type	Contact Size	Features	Termination Finish	Contact Finish Thickness (string set options)	Contact Finish Thickness
McGill Microwave Systems SP20W2G10	Gold	0.5 mm²	0.34 mm²	10 Ąin	Crimp	20 AWG	22 AWG	Signal Stamped	Copper Alloy	Pin	20	Insulation Support
McGill Microwave Systems SP20M1N	Nickel	0.5 mm²	0.34 mm²		Crimp	20 AWG	22 AWG	Signal Stamped	Copper Alloy	Pin	16 S	Insulation Support
McGill Microwave Systems SP20W1T	Tin	0.5 mm²	0.34 mm²		Crimp	20 AWG	22 AWG	Signal Stamped	Copper Alloy	Pin	20	Insulation Support
McGill Microwave Systems SP20W1F	Gold	0.5 mm²	0.34 mm²	0	Crimp	20 AWG	22 AWG	Signal Stamped	Copper Alloy	Pin	20	Insulation Support	Copper Alloy	Flash	Flash
McGill Microwave Systems SP20M1G15	Gold	0.5 mm²	0.34 mm²	15 µin	Crimp	20 AWG	22 AWG	Signal Stamped	Copper Alloy	Pin	16 S	Insulation Support

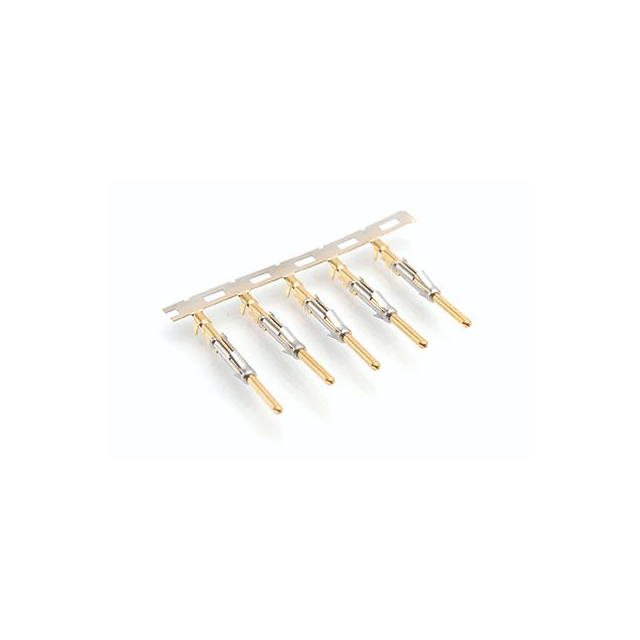

McGill Microwave Systems SP20M1G10	Gold	0.5 mm²	0.34 mm²	10 Ąin	Crimp	20 AWG	22 AWG	Signal Stamped	Copper Alloy	Pin	16 S	Insulation Support
McGill Microwave Systems SP20M2G30	Gold	0.5 mm²	0.34 mm²	30 µin	Crimp	20 AWG	22 AWG	Signal Stamped	Copper Alloy	Pin	16 S	Insulation Support
McGill Microwave Systems SP20M2T	Tin	0.5 mm²	0.34 mm²		Crimp	20 AWG	22 AWG	Signal Stamped	Copper Alloy	Pin	16 S	Insulation Support
McGill Microwave Systems SP20M1G30	Gold	0.5 mm²	0.34 mm²	30 µin	Crimp	20 AWG	22 AWG	Signal Stamped	Copper Alloy	Pin	16 S	Insulation Support

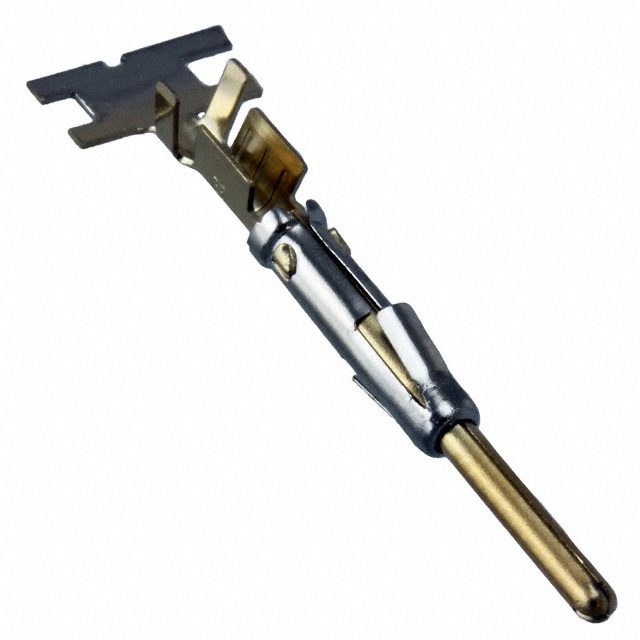

McGill Microwave Systems SP20M1F	Gold	0.5 mm²	0.34 mm²	0	Crimp	20 AWG	22 AWG	Signal Stamped	Copper Alloy	Pin	16 S	Insulation Support	Copper Alloy	Flash	Flash
