CL1R Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT HSG FMALE 40POS PNL MT

Part	Housing Color	Ingress Protection Description	Ingress Protection IP Rating	Shell Size - Insert Length	Shell Size - Insert Width	Note	Number of Positions	Mounting Feature	Orientation	Contact Size	Insert Material	Contact Type	Material Flammability Rating	Type	Connector Type	Shielding	Fastening Type	Shell Material	Mounting Type	Contact Shape	Operating Temperature (Max)	Operating Temperature (Min)	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Ingress Protection
Amphenol Aerospace Operations CL1R4201	Black	Dust Tight Waterproof	IP67	4 mm	2 mm	Contacts Not Included	40	Flange	Keyed	16 S	Thermoplastic	Crimp Solder Cup	UL94 V-0	For Female Sockets	Receptacle Housing	Unshielded	Twist Latch	Halogen Free Thermoplastic	Panel Mount	Circular	125 °C	-40 °C

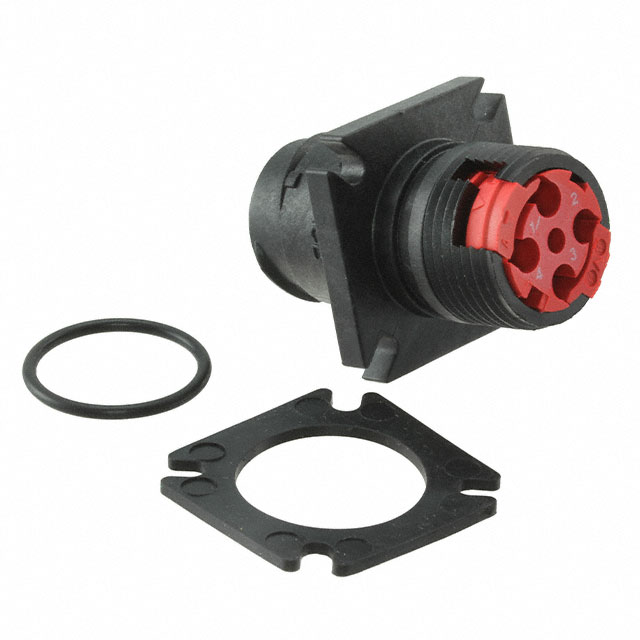

Amphenol Aerospace Operations CL1R1102	Black	Dust Tight Waterproof	IP68			Contacts Not Included	4	Flange	Keyed	16 S	Thermoplastic	Crimp Solder Cup	UL94 V-0	For Female Sockets	Receptacle Housing	Unshielded	Twist Latch	Halogen Free Thermoplastic	Panel Mount	Circular	125 °C	-40 °C	1	1
Amphenol Aerospace Operations CL1R2101	Black	Dust Tight Waterproof	IP67	2 mm	1 mm	Contacts Not Included	9	Flange	Keyed	16 S	Thermoplastic	Crimp Solder Cup	UL94 V-0	For Female Sockets	Receptacle Housing	Unshielded	Twist Latch	Halogen Free Thermoplastic	Panel Mount	Circular	125 °C	-40 °C
Amphenol Aerospace Operations CL1R2100	Black			2 mm	1 mm	Contacts Not Included	9	Flange	Keyed	16 S	Thermoplastic	Crimp Solder Cup	UL94 V-0	For Female Sockets	Receptacle Housing	Unshielded	Twist Latch	Halogen Free Thermoplastic	Panel Mount	Circular	125 °C	-40 °C			IP40
Amphenol Aerospace Operations CL1R3101	Black	Dust Tight Waterproof	IP67	3 mm	1 mm	Contacts Not Included	18	Flange	Keyed	16 S	Thermoplastic	Crimp Solder Cup	UL94 V-0	For Female Sockets	Receptacle Housing	Unshielded	Twist Latch	Halogen Free Thermoplastic	Panel Mount	Circular	125 °C	-40 °C
Amphenol Aerospace Operations CL1R1101	Black	Dust Tight Waterproof	IP67			Contacts Not Included	4	Flange	Keyed	16 S	Thermoplastic	Crimp Solder Cup	UL94 V-0	For Female Sockets	Receptacle Housing	Unshielded	Twist Latch	Halogen Free Thermoplastic	Panel Mount	Circular	125 °C	-40 °C	1	1
Amphenol Aerospace Operations CL1R3102	Black	Dust Tight Waterproof	IP68	3 mm	1 mm	Contacts Not Included	18	Flange	Keyed	16 S	Thermoplastic	Crimp Solder Cup	UL94 V-0	For Female Sockets	Receptacle Housing	Unshielded	Twist Latch	Halogen Free Thermoplastic	Panel Mount	Circular	125 °C	-40 °C
Amphenol Aerospace Operations CL1R3100	Black			3 mm	1 mm	Contacts Not Included	18	Flange	Keyed	16 S	Thermoplastic	Crimp Solder Cup	UL94 V-0	For Female Sockets	Receptacle Housing	Unshielded	Twist Latch	Halogen Free Thermoplastic	Panel Mount	Circular	125 °C	-40 °C			IP40
Amphenol Aerospace Operations CL1R4202	Black	Dust Tight Waterproof	IP68	4 mm	2 mm	Contacts Not Included	40	Flange	Keyed	16 S	Thermoplastic	Crimp Solder Cup	UL94 V-0	For Female Sockets	Receptacle Housing	Unshielded	Twist Latch	Halogen Free Thermoplastic	Panel Mount	Circular	125 °C	-40 °C
Amphenol Aerospace Operations CL1R4200	Black			4 mm	2 mm	Contacts Not Included	40	Flange	Keyed	16 S	Thermoplastic	Crimp Solder Cup	UL94 V-0	For Female Sockets	Receptacle Housing	Unshielded	Twist Latch	Halogen Free Thermoplastic	Panel Mount	Circular	125 °C	-40 °C			IP40
