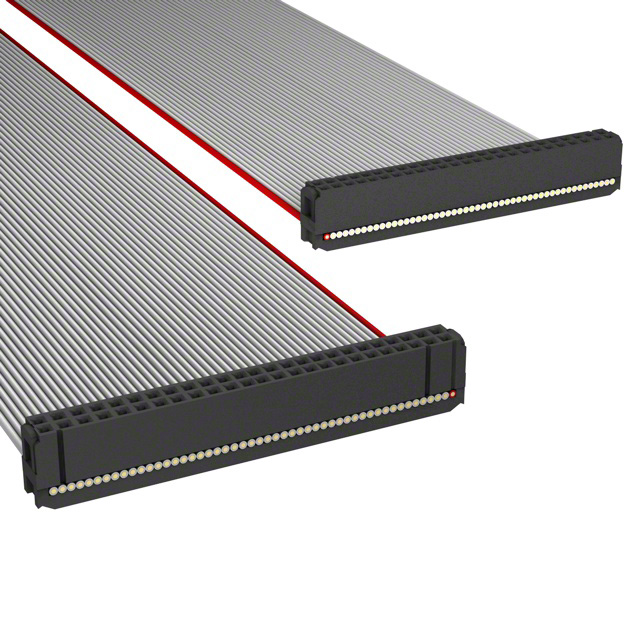

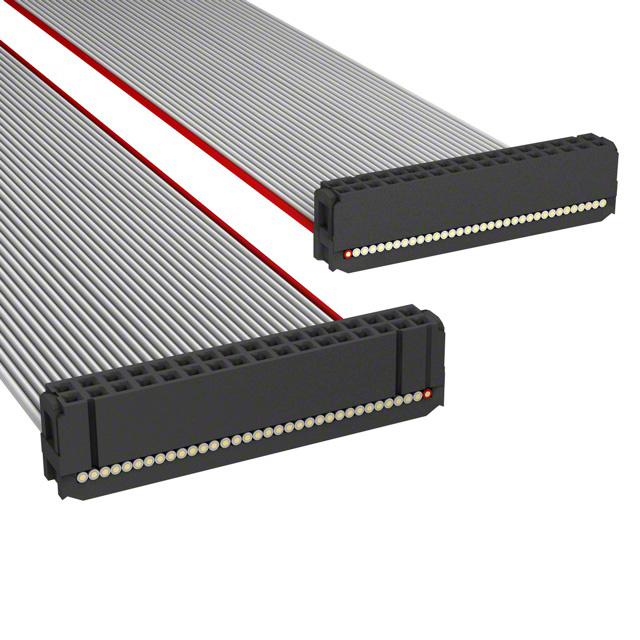

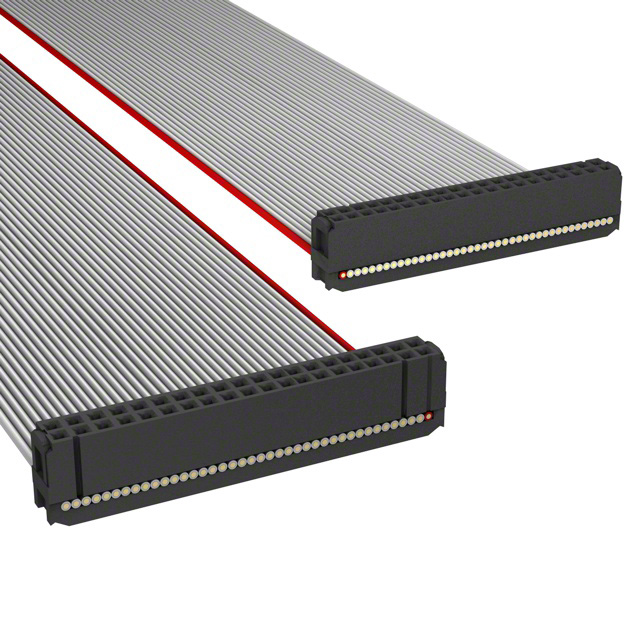

A3AAB Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE- ASC40B/AE40G/ASC40B

Part	Pitch - Connector	Pitch - Connector	Shielding	Connector Type	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Number of Rows	Number of Positions	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Cable Termination	Number of Positions	Color	Length	Length	Length
TE Connectivity Raychem Cable Protection A3AAB-4036G	0.1 in	2.54 mm	Unshielded	Socket to Socket	3 ft	914.4 mm	0.05 "	1.27 mm	2	40	Gold	0.76 Ám	30 Áin	IDC
TE Connectivity Raychem Cable Protection A3AAB-1636M	0.1 in	2.54 mm	Unshielded	Socket to Socket	3 ft	914.4 mm	0.05 "	1.27 mm	2		Gold	0.76 Ám	30 Áin	IDC	16	Multiple Ribbon
TE Connectivity Raychem Cable Protection A3AAB-3006M	0.1 in	2.54 mm	Unshielded	Socket to Socket			0.05 "	1.27 mm	2	30	Gold	0.76 Ám	30 Áin	IDC		Multiple Ribbon	152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3AAB-5006G	0.1 in	2.54 mm	Unshielded	Socket to Socket			0.05 "	1.27 mm	2	50	Gold	0.76 Ám	30 Áin	IDC			152.4 mm	6 "	0.5 '
TE Connectivity Raychem Cable Protection A3AAB-1618M	0.1 in	2.54 mm	Unshielded	Socket to Socket	1.5 ft	457.2 mm	0.05 "	1.27 mm	2		Gold	0.76 Ám	30 Áin	IDC	16	Multiple Ribbon
TE Connectivity Raychem Cable Protection A3AAB-4018G	0.1 in	2.54 mm	Unshielded	Socket to Socket	1.5 ft	457.2 mm	0.05 "	1.27 mm	2	40	Gold	0.76 Ám	30 Áin	IDC
TE Connectivity Raychem Cable Protection A3AAB-3436M	0.1 in	2.54 mm	Unshielded	Socket to Socket	3 ft	914.4 mm	0.05 "	1.27 mm	2	34	Gold	0.76 Ám	30 Áin	IDC		Multiple Ribbon
TE Connectivity Raychem Cable Protection A3AAB-3436G	0.1 in	2.54 mm	Unshielded	Socket to Socket	3 ft	914.4 mm	0.05 "	1.27 mm	2	34	Gold	0.76 Ám	30 Áin	IDC
TE Connectivity Raychem Cable Protection A3AAB-5018G	0.1 in	2.54 mm	Unshielded	Socket to Socket	1.5 ft	457.2 mm	0.05 "	1.27 mm	2	50	Gold	0.76 Ám	30 Áin	IDC
TE Connectivity Raychem Cable Protection A3AAB-2406G	0.1 in	2.54 mm	Unshielded	Socket to Socket			0.05 "	1.27 mm	2	24	Gold	0.76 Ám	30 Áin	IDC			152.4 mm	6 "	0.5 '
