000-36 Series

Catalog

RF / COAXIAL CONNECTOR, BNC COAXIAL, STRAIGHT JACK, CRIMP, 50 OHM

Part	Cable Group	Connector Type	Impedance	Contact Termination	Housing Color	Shield Termination	Mounting Type	Connector Style	Frequency - Max	Number of Ports	Fastening Type	Center Contact Material	Body Finish	Voltage Rating	Body Material	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles	Center Contact Plating	Insertion Loss	Dielectric Material	Includes Total Count	Includes	Mounting Feature
McGill Microwave Systems 000-36800-RFX	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Female Socket Jack	50 Ohm	Crimp	Silver	Crimp	Free Hanging (In-Line)	BNC	4 GHz	1	Bayonet Lock	Phosphor Bronze	Nickel	500 V	Brass	-65 °C	165 °C	500 cycles	Gold	0.2 dB	Polytetrafluoroethylene (PTFE)
McGill Microwave Systems 000-36875	142 223 400 RG-55	Male Pin Plug	50 Ohm	Crimp Solder	Silver	Crimp	Free Hanging (In-Line)	BNC	1 GHz	1	Bayonet Lock	Brass	Nickel	500 V	Brass	-65 °C	165 °C	500 cycles	Gold	0.2 dB	Polytetrafluoroethylene (PTFE)	3 pcs	Connector Contact Ferrule
McGill Microwave Systems 000-36825	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Male Pin Plug	50 Ohm	Crimp	Silver	Crimp	Free Hanging (In-Line)	TNC	11 GHz	1	Threaded	Brass	Nickel	500 V	Brass	-65 °C	165 °C	500 cycles	Gold		Polytetrafluoroethylene (PTFE)	3 pcs	Connector Contact Ferrule

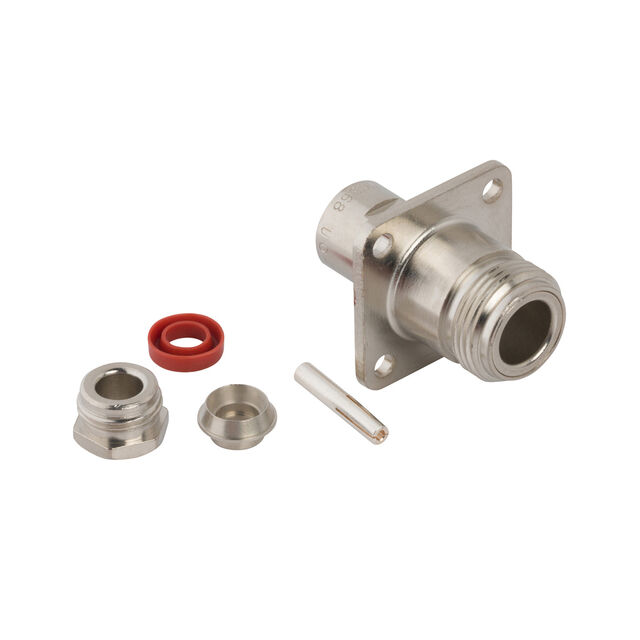

McGill Microwave Systems 000-36250	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Female Socket Jack	50 Ohm	Solder	Silver	Clamp	Panel Mount	N Type		1	Threaded	Beryllium Copper	Nickel		Brass			500 cycles	Silver		Polytetrafluoroethylene (PTFE)			Flange
McGill Microwave Systems 000-36800	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	Female Socket Jack	50 Ohm	Crimp	Silver	Crimp	Free Hanging (In-Line)	BNC	4 GHz	1	Bayonet Lock	Phosphor Bronze	Nickel	500 V	Brass	-65 °C	165 °C	500 cycles	Gold	0.2 dB	Polytetrafluoroethylene (PTFE)	3 pcs	Connector Contact Ferrule
