532430 Series

Catalog

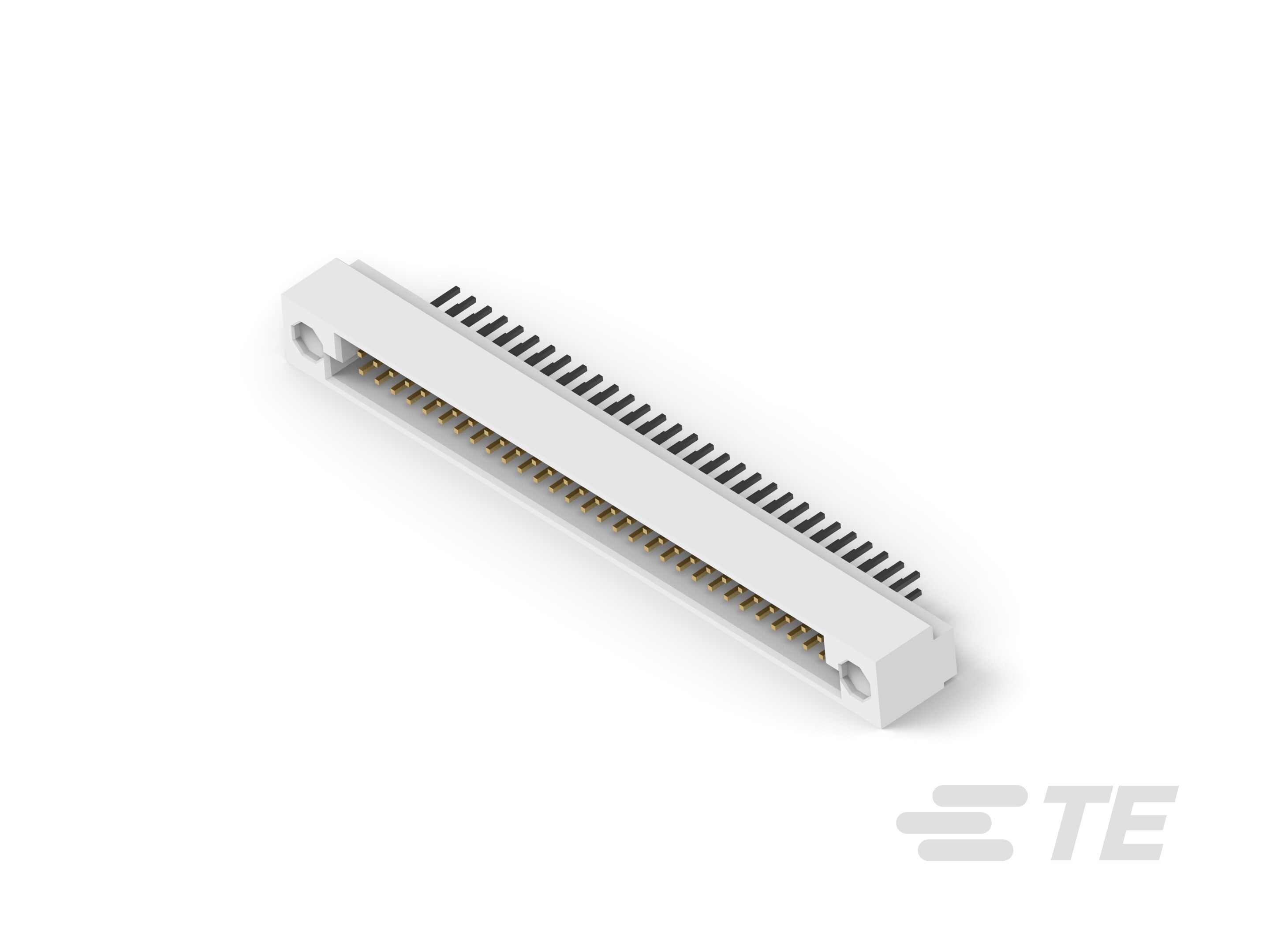

HDI PIN ASSY 2 ROW 60 POS

Part	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Pitch	Features	Mounting Type	Connector Type	Number of Positions Loaded	Color	Connector Style	Termination	Contact Finish	Number of Rows	Contact Finish Thickness	Number of Positions
TE Connectivity AMP Connectors 532430-5	125 °C	-65 °C	UL94 V-0	0.1 in	Mating Guide	Through Hole	Header Male Pins	All	Natural	High Density (HDC HDI HPC)	Solder	Gold	2	30 µin	60
TE Connectivity AMP Connectors 532430-9	125 °C	-65 °C	UL94 V-0	0.1 in	Mating Guide	Through Hole	Header Male Pins	All	Natural	High Density (HDC HDI HPC)	Solder	Gold	2	30 µin	100
TE Connectivity AMP Connectors 532430-3	125 °C	-65 °C	UL94 V-0	0.1 in	Mating Guide	Through Hole	Header Male Pins	All	Natural	High Density (HDC HDI HPC)	Solder	Gold	2	30 µin	40
