51864 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RING CIRC 16AWG #6 CRIMP

Part	Material - Insulation	Insulation Diameter (Max)	Insulation Diameter (Min)	Termination	Thickness	Contact Finish	Terminal Type	Contact Material	Stud/Tab Size	Mounting Type	Insulation	Width - Outer Edges	Features	Color	Length - Overall	Wire Gauge	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Stud/Tab Type	Stud/Tab Size
TE Connectivity AMP Connectors 1-51864-2	Nylon PA Polyamide	0.13 in	0.063 in	Crimp	0.031 in	Tin	Circular	Copper	6 Stud	Free Hanging (In-Line)	Insulated	0.312 in	Insulation Restriction	Blue Blue Stripe	0.906 in	16 AWG
TE Connectivity AMP Connectors 4-51864-1	Nylon PA Polyamide	0.15 in	0.105 in	Crimp	0.031 in	Tin	Circular	Copper	8 Stud	Free Hanging (In-Line)	Insulated	0.312 in		Blue	0.844 in		16 AWG	14 AWG
TE Connectivity AMP Connectors 51864-6				Crimp	0.031 in	Tin	Circular	Copper	3.5 mm	Free Hanging (In-Line)	Insulated	0.312 in		Blue Blue Stripe	0.906 in	16 AWG			Stud	M3.5 Stud
TE Connectivity AMP Connectors 9-51864-5	Nylon PA Polyamide	0.13 in	0.078 in	Crimp	0.031 in	Tin	Circular	Copper	8 Stud	Free Hanging (In-Line)	Insulated	0.312 in	Insulation Restriction	Blue Green Stripe	0.906 in	14 AWG
TE Connectivity AMP Connectors 5-51864-1	Nylon PA Polyamide	0.15 in	0.105 in	Crimp	0.031 in	Tin	Circular	Copper	10 Stud	Free Hanging (In-Line)	Insulated	0.312 in		Blue	0.844 in		16 AWG	14 AWG
TE Connectivity AMP Connectors 9-51864-1	Nylon PA Polyamide	0.13 in	0.078 in	Crimp	0.031 in	Tin	Circular	Copper	10 Stud	Free Hanging (In-Line)	Insulated	0.312 in	Insulation Restriction	Blue Green Stripe	0.906 in	14 AWG
TE Connectivity AMP Connectors 51864-3	Nylon PA Polyamide	0.15 in	0.105 in	Crimp	0.031 in	Tin	Circular	Copper	6 Stud	Free Hanging (In-Line)	Insulated	0.312 in		Blue	0.844 in		16 AWG	14 AWG

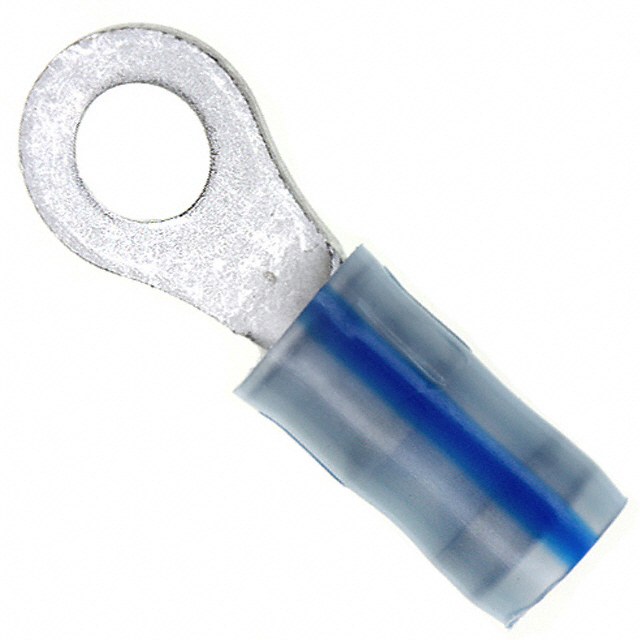

TE Connectivity AMP Connectors 1-51864-0	Nylon PA Polyamide	0.13 in	0.063 in	Crimp	0.031 in	Tin	Circular	Copper	8 Stud	Free Hanging (In-Line)	Insulated	0.312 in	Insulation Restriction	Blue Blue Stripe	0.906 in	16 AWG

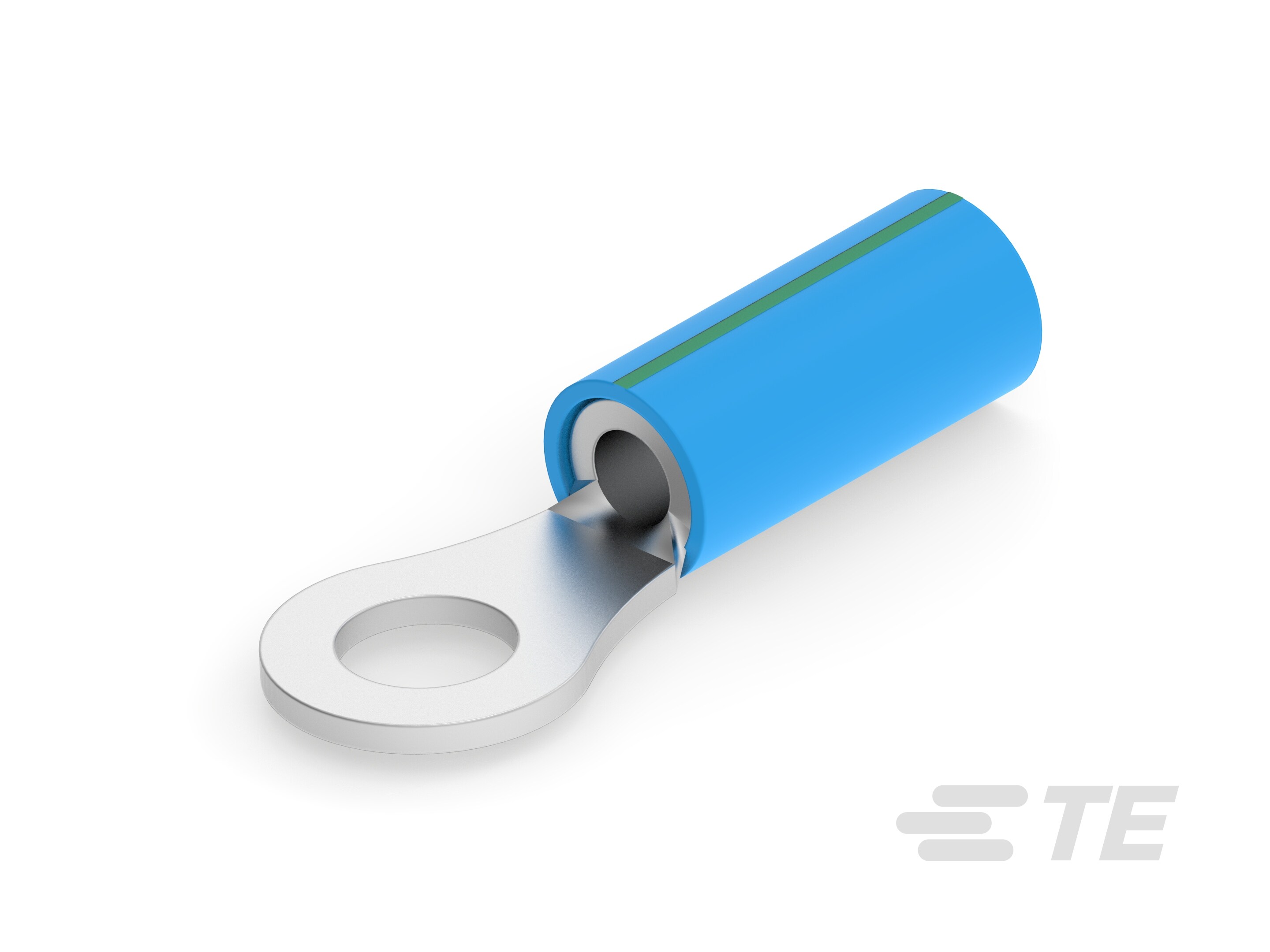

TE Connectivity AMP Connectors 1-51864-7	Nylon PA Polyamide	0.13 in	0.078 in	Crimp	0.031 in	Tin	Circular	Copper	8 Stud	Free Hanging (In-Line)	Insulated	0.312 in	Insulation Restriction	Blue Green Stripe	0.906 in	14 AWG
TE Connectivity AMP Connectors 6-51864-1	Nylon PA Polyamide	0.13 in	0.063 in	Crimp	0.031 in	Tin	Circular	Copper	6 Stud	Free Hanging (In-Line)	Insulated	0.312 in	Insulation Restriction	Blue Blue Stripe	0.906 in	16 AWG
