CMU1532 Series

Catalog

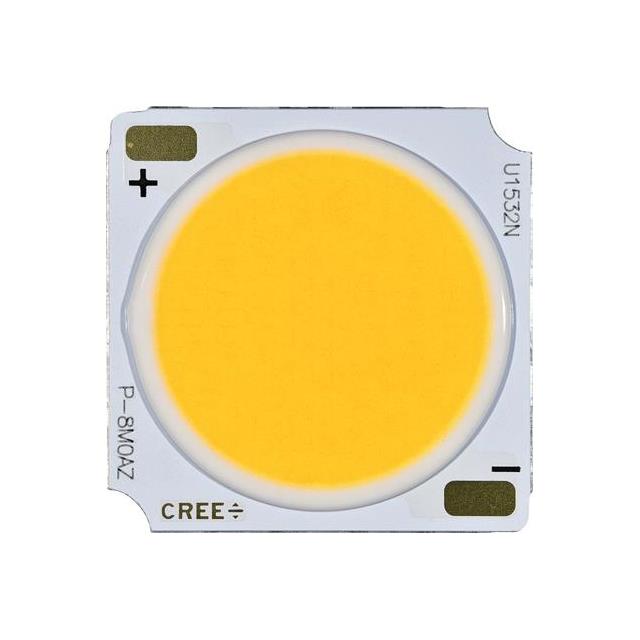

LED COB XLAMP COOL WHT SQU 5000K

...

Part	Lumens/Watt	Temperature - Test	Current - Max	Type	Light Emitting Surface (LES) Diameter	Color	CRI (Color Rendering Index)	Configuration	Luminous Flux (Typical)	Lens Type	Viewing Angle	Current - Test	Voltage - Forward (Vf) (Typ)	Height	CCT (K)	CCT Description	Size / Dimension Width	Size / Dimension Length
CreeLED, Inc. CMU1532-R090-000N0U0A50G	142 lm/W	85 °C	2.4 A	Chip On Board (COB)	14.5 mm	Cool White	90	Square	4306 lm	Flat	115 °	900 mA	33.7 V	1.5 mm	5000 K	3-Step MacAdam Ellipse	19 mm	19 mm
CreeLED, Inc. CMU1532-0000-000N0H0A22G	132 lm/W	85 °C	2.4 A	Chip On Board (COB)	14.5 mm	Warm White	80	Square	3990 lm	Flat	115 °	900 mA	33.7 V	1.5 mm	2200 K	3-Step MacAdam Ellipse	19 mm	19 mm
CreeLED, Inc. CMU1532-0000-000N0U0A30H	136 lm/W	85 °C	2.4 A	Chip On Board (COB)	14.5 mm	Warm White	90	Square	4116 lm	Flat	115 °	900 mA	33.7 V	1.5 mm	3000 K	2-Step MacAdam Ellipse	19 mm	19 mm
CreeLED, Inc. CMU1532-R090-000N0U0A27G	134 lm/W	85 °C	2.4 A	Chip On Board (COB)	14.5 mm	Warm White	90	Square	4052 lm	Flat	115 °	900 mA	33.7 V	1.5 mm	2700 K	2-Step MacAdam Ellipse	19 mm	19 mm
CreeLED, Inc. CMU1532-R090-000N0U0A57G	146 lm/W	85 °C	2.4 A	Chip On Board (COB)	14.5 mm	Cool White	90	Square	4430 lm	Flat	115 °	900 mA	33.7 V	1.5 mm	5700 K	3-Step MacAdam Ellipse	19 mm	19 mm
CreeLED, Inc. CMU1532-R090-000N0U0A30Q	136 lm/W	85 °C	2.4 A	Chip On Board (COB)	14.5 mm	Warm White	90	Square	4139 lm	Flat	115 °	900 mA	33.7 V	1.5 mm	3000 K	3-Step MacAdam Ellipse	19 mm	19 mm
CreeLED, Inc. CMU1532-0000-000N0U0A27H	130 lm/W	85 °C	2.4 A	Chip On Board (COB)	14.5 mm	Warm White	90	Square	3949 lm	Flat	115 °	900 mA	33.7 V	1.5 mm	2700 K	2-Step MacAdam Ellipse	19 mm	19 mm
CreeLED, Inc. CMU1532-R090-000N0H0A40G	164 lm/W	85 °C	2.4 A	Chip On Board (COB)	14.5 mm	Neutral White	80	Square	4979 lm	Flat	115 °	900 mA	33.7 V	1.5 mm	4000 K	3-Step MacAdam Ellipse	19 mm	19 mm
CreeLED, Inc. CMU1532-R090-00PN0U0A35H		85 °C	2.4 A	Chip On Board (COB)	14.5 mm	Warm White	90	Square		Flat	115 °	900 mA	33.7 V	1.5 mm	3500 K		19 mm	19 mm
CreeLED, Inc. CMU1532-R090-00PN0Z0AL7C		85 °C	2.4 A	Chip On Board (COB)	14.5 mm		95	Square		Flat	115 °	900 mA	33.7 V	1.5 mm			19 mm	19 mm
