T37011 Series
Manufacturer: Curtis Industries
Beta
⌘K
CONN BARRIER STRIP 7CIRC 0.375"
| Part | Material Flammability Rating | Operating Temperature | Material - Insulation | Mounting Type | Bottom Termination | Features | Number of Rows | Terminal Block Type | Number of Wire Entries | Pitch | Number of Circuits | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Barrier Type | Current Rating | Top Termination | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

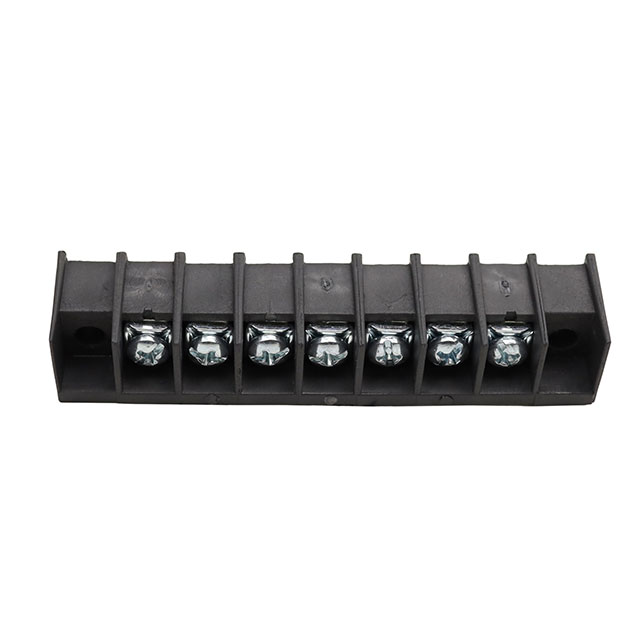

 Curtis Industries | UL94 V-0 | 105 °C | Polypropylene PP | Chassis Panel Through Hole | PC Pin | Flange | 1 | Barrier Block | 7 | 0.375 in | 7 | 12 AWG | 22 AWG | 3 Wall (Tri) | 20 A | Screws with Captive Plate | 300 VAC/DC |
 Curtis Industries | UL94 V-0 | 105 °C | Polypropylene PP | Chassis Panel Through Hole | PC Pin | Flange | 1 | Barrier Block | 4 | 0.375 in | 4 | 12 AWG | 22 AWG | 3 Wall (Tri) | 20 A | Screws with Captive Plate | 300 VAC/DC |
 Curtis Industries | UL94 V-0 | 105 °C | Polypropylene PP | Chassis Panel Through Hole | PC Pin | Flange | 1 | Barrier Block | 6 | 0.375 in | 6 | 12 AWG | 22 AWG | 3 Wall (Tri) | 20 A | Screws with Captive Plate | 300 VAC/DC |
 Curtis Industries | UL94 V-0 | 105 °C | Polypropylene PP | Chassis Panel Through Hole | PC Pin | Flange | 1 | Barrier Block | 21 | 0.375 in | 21 | 12 AWG | 22 AWG | 3 Wall (Tri) | 20 A | Screws with Captive Plate | 300 VAC/DC |
Curtis Industries | UL94 V-0 | 105 °C | Polypropylene PP | Chassis Panel Through Hole | PC Pin | Flange | 1 | Barrier Block | 16 | 0.375 in | 16 | 12 AWG | 22 AWG | 3 Wall (Tri) | 20 A | Screws with Captive Plate | 300 VAC/DC |
Curtis Industries | UL94 V-0 | 105 °C | Polypropylene PP | Chassis Panel Through Hole | PC Pin | Flange | 1 | Barrier Block | 15 | 0.375 in | 15 | 12 AWG | 22 AWG | 3 Wall (Tri) | 20 A | Screws with Captive Plate | 300 VAC/DC |
 Curtis Industries | UL94 V-0 | 105 °C | Polypropylene PP | Chassis Panel Through Hole | PC Pin | Flange | 1 | Barrier Block | 3 | 0.375 in | 3 | 12 AWG | 22 AWG | 3 Wall (Tri) | 20 A | Screws with Captive Plate | 300 VAC/DC |
 Curtis Industries | UL94 V-0 | 105 °C | Polypropylene PP | Chassis Panel Through Hole | PC Pin | Flange | 1 | Barrier Block | 11 | 0.375 in | 11 | 12 AWG | 22 AWG | 3 Wall (Tri) | 20 A | Screws with Captive Plate | 300 VAC/DC |

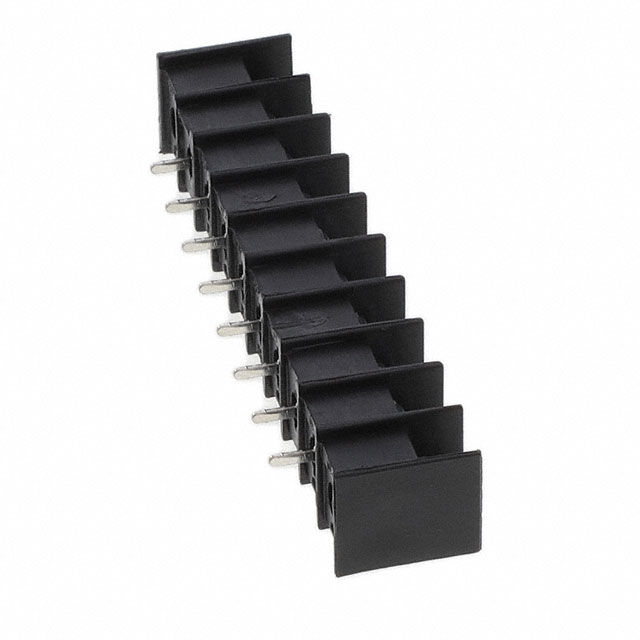

 Curtis Industries | UL94 V-0 | 105 °C | Polypropylene PP | Chassis Panel Through Hole | PC Pin | Flange | 1 | Barrier Block | 8 | 0.375 in | 8 | 12 AWG | 22 AWG | 3 Wall (Tri) | 20 A | Screws with Captive Plate | 300 VAC/DC |
 Curtis Industries | UL94 V-0 | 105 °C | Polypropylene PP | Chassis Panel Through Hole | PC Pin | Flange | 1 | Barrier Block | 5 | 0.375 in | 5 | 12 AWG | 22 AWG | 3 Wall (Tri) | 20 A | Screws with Captive Plate | 300 VAC/DC |
