3238 Series

Catalog

CONN RING SLOTTED 16-22AWG #10

Part	Insulation	Termination	Contact Finish	Width - Outer Edges	Terminal Type	Stud/Tab Size	Contact Material	Thickness	Length - Overall	Mounting Type	Features	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Color	Material - Insulation	Insulation Diameter (Min)	Insulation Diameter (Max)	Insulation Diameter	Wire Gauge
TE Connectivity AMP Connectors 323832	Non-Insulated	Crimp	Tin	0.312 in	Slotted	10 Stud	Copper	0.031 in	0.588 in	Free Hanging (In-Line)	Serrated Termination	16 AWG	22 AWG

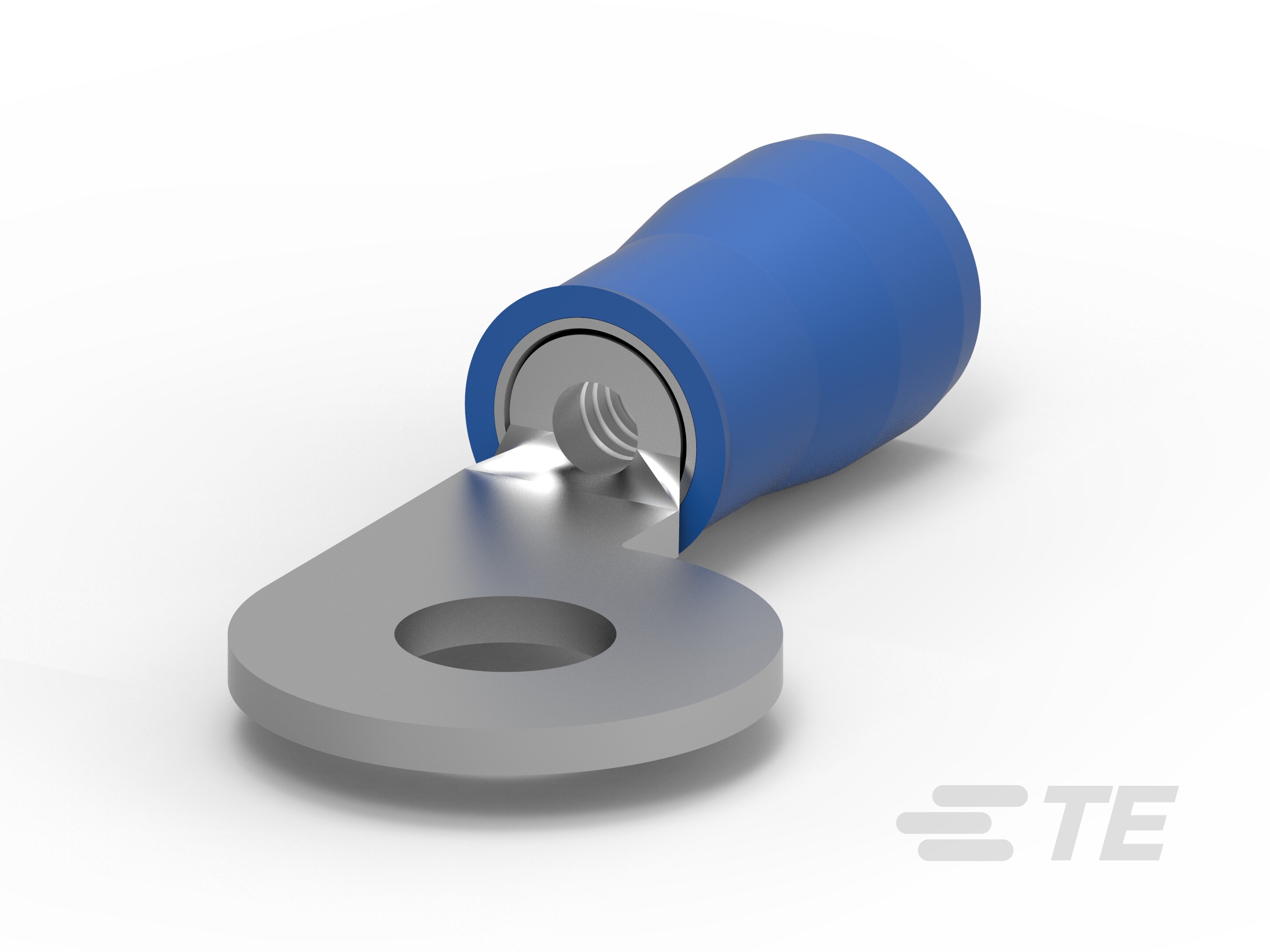

TE Connectivity AMP Connectors 323817	Insulated	Crimp	Tin	0.375 in	Circular	6 Stud	Copper	0.031 in	0.906 in	Free Hanging (In-Line)	Offset Holes Serrated Termination	14 AWG	16 AWG	Blue	Nylon PA Polyamide	0.105 in	0.15 in
TE Connectivity AMP Connectors 323869	Insulated	Crimp	Tin	0.587 in	Circular	0.25 Stud	Copper	0.04 in		Free Hanging (In-Line) Right Angle	Serrated Termination			Red	Vinyl			0.298 in	8 AWG
TE Connectivity AMP Connectors 323835	Non-Insulated	Crimp	Tin	0.218 in	Slotted	6 Stud	Copper	0.031 in	0.423 in	Free Hanging (In-Line)	Serrated Termination	16 AWG	22 AWG
