053627 Series

Manufacturer: Molex

Catalog

CONN BOARD TO BOARD HDR 90 POS 0.635MM SOLDER ST SMD SLIMSTACK T/R

Part	Mounting Type	Mated Stacking Height Options	Number of Rows	Pitch	Number of Positions	Height Above Board	Connector Type	Features	Contact Finish	Contact Finish Thickness
Molex 0536270974	Surface Mount	10mm 16mm	2	0.025 in	90	0.354 in	Outer Shroud Contacts Plug	Board Guide Solder Retention	Gold	10 Ąin

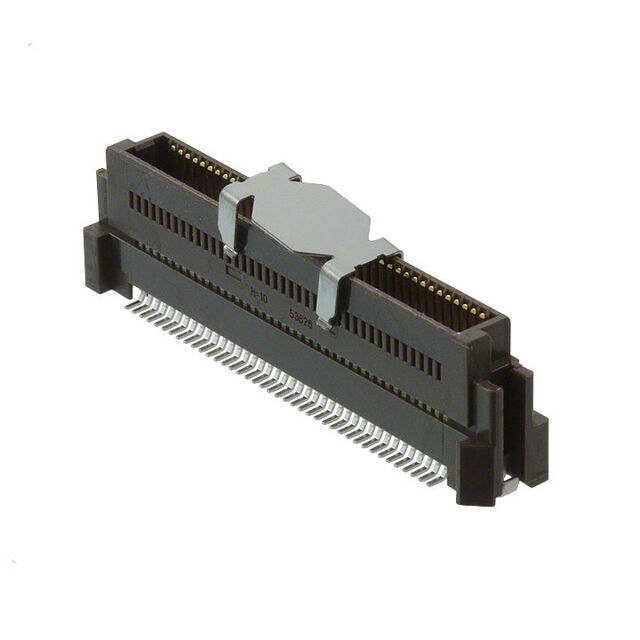

Molex 0536270874	Surface Mount	10mm 16mm	2	0.025 in	80	0.354 in	Outer Shroud Contacts Plug	Board Guide Solder Retention	Gold	10 Ąin
Molex 0536270774	Surface Mount	10mm 16mm	2	0.025 in	70	0.354 in	Outer Shroud Contacts Plug	Board Guide Solder Retention	Gold	10 Ąin

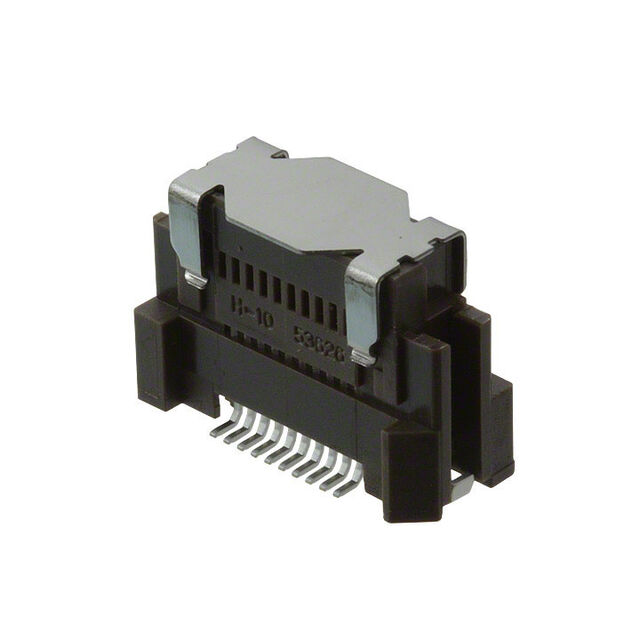

Molex 0536270274	Surface Mount	10mm 16mm	2	0.025 in	20	0.354 in	Outer Shroud Contacts Plug	Board Guide Solder Retention	Gold	10 Ąin

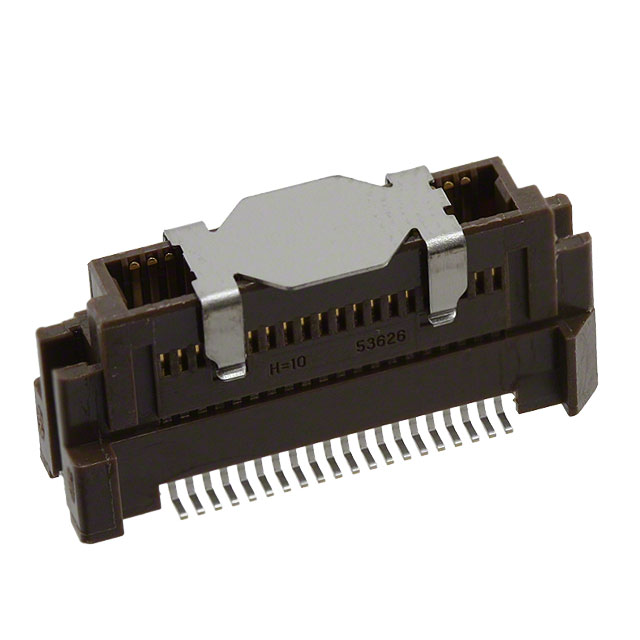

Molex 0536270474	Surface Mount	10mm 16mm	2	0.025 in	40	0.354 in	Outer Shroud Contacts Plug	Board Guide Solder Retention	Gold	10 Ąin

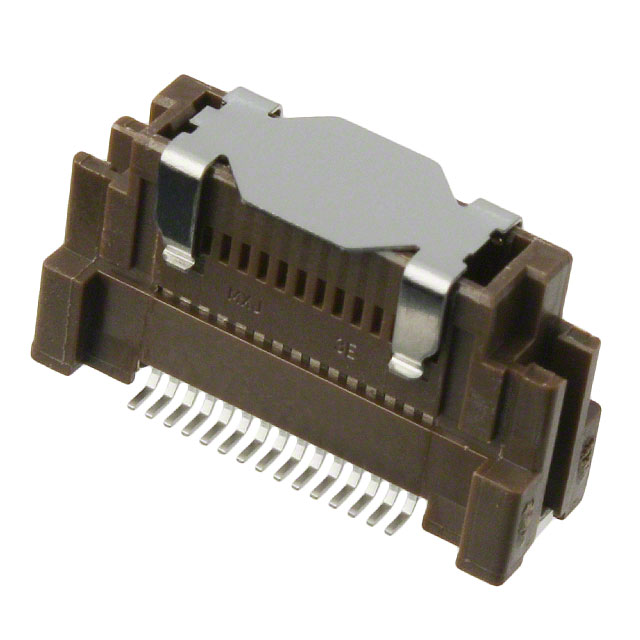

Molex 0536270374	Surface Mount	10mm 16mm	2	0.025 in	30	0.354 in	Outer Shroud Contacts Plug	Board Guide Solder Retention	Gold	10 Ąin
Molex 0536272074	Surface Mount	10mm 16mm	2	0.025 in	200	0.354 in	Outer Shroud Contacts Plug	Board Guide Solder Retention	Gold	10 Ąin
Molex 0536271474	Surface Mount	10mm 16mm	2	0.025 in	140	0.354 in	Outer Shroud Contacts Plug	Board Guide Solder Retention	Gold	10 Ąin
