085056 Series
Manufacturer: Molex
Beta
⌘K

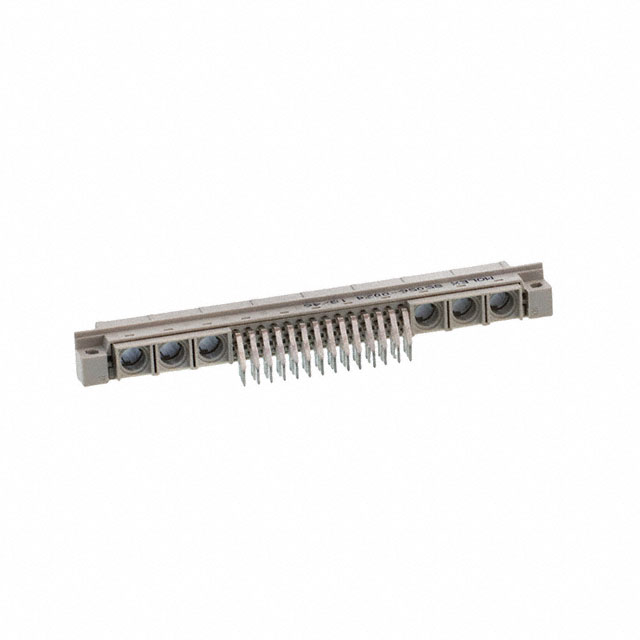

CONN DIN RCPT 48POS PCB RA GOLD
| Part | Operating Temperature (Max) | Operating Temperature (Min) | Material Flammability Rating | Material - Insulation | Number of Rows | Style | Termination | Number of Positions Loaded | Contact Finish | Pitch | Contact Finish Thickness | Level, Class | Number of Positions (Total) | Number of Positions (Normal) | Number of Positions (Power) | Mounting Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 125 °C | -55 °C | UL94 V-0 | Polyester Thermoplastic | 3 | M | Solder | 42 | Gold | 0.1 in | 24 µin | 2 | 48 | 42 | 6 | Right Angle Through Hole | Female Sockets Receptacle |
 Molex | 125 °C | -55 °C | UL94 V-0 | Polyester Thermoplastic | 3 | M | Solder | 24 | Gold | 0.1 in | 24 µin | 2 | 32 | 24 | 8 | Right Angle Through Hole | Female Sockets Receptacle |
Molex | 125 °C | -55 °C | UL94 V-0 | Polyester Thermoplastic | 3 | M | Solder | 60 | Gold | 0.1 in | 24 µin | 2 | 64 | 60 | 4 | Right Angle Through Hole | Female Sockets Receptacle |
Molex | 125 °C | -55 °C | UL94 V-0 | Polyester Thermoplastic | 3 | M | Solder | 78 | Gold | 0.1 in | 24 µin | 2 | 80 | 78 | 2 | Right Angle Through Hole | Female Sockets Receptacle |
Molex | 125 °C | -55 °C | UL94 V-0 | Polyester Thermoplastic | 3 | M | Solder | 78 | Gold | 0.1 in | 39.4 Ąin | 1 | 80 | 78 | 2 | Right Angle Through Hole | Female Sockets Receptacle |
