1986718 Series

Catalog

PLUGGABLE TERMINAL BLOCKS UNSHRDED WIDE HDR 3.5MM 8POS

Part	Header Orientation	Termination Style	Number of Levels	Color	Positions Per Level	Operating Temperature (Min)	Operating Temperature (Max)	Pitch	Type	Voltage - UL	Contact Mating Finish	Current - UL	Mounting Type	Number of Positions	Material Flammability Rating	Contact Tail Length	Housing Material	Contact Material	Insulation Height
TE Connectivity AMP Connectors 1986718-8	Vertical	Solder	1	Green	8	-40 °C	110 °C	0.138 in	Header Male Pins Unshrouded	150 V	Tin	2 A	Through Hole	8	UL94 V-0	0.138 in	Nylon PA Polyamide	Copper Alloy	0.094 in
TE Connectivity AMP Connectors 1986718-4	Vertical	Solder	1	Green	4	-40 °C	110 °C	0.138 in	Header Male Pins Unshrouded	150 V	Tin	2 A	Through Hole	4	UL94 V-0	0.138 in	Nylon PA Polyamide	Copper Alloy	0.094 in
TE Connectivity AMP Connectors 1986718-3	Vertical	Solder	1	Green	3	-40 °C	110 °C	0.138 in	Header Male Pins Unshrouded	150 V	Tin	2 A	Through Hole	3	UL94 V-0	0.138 in	Nylon PA Polyamide	Copper Alloy	0.094 in

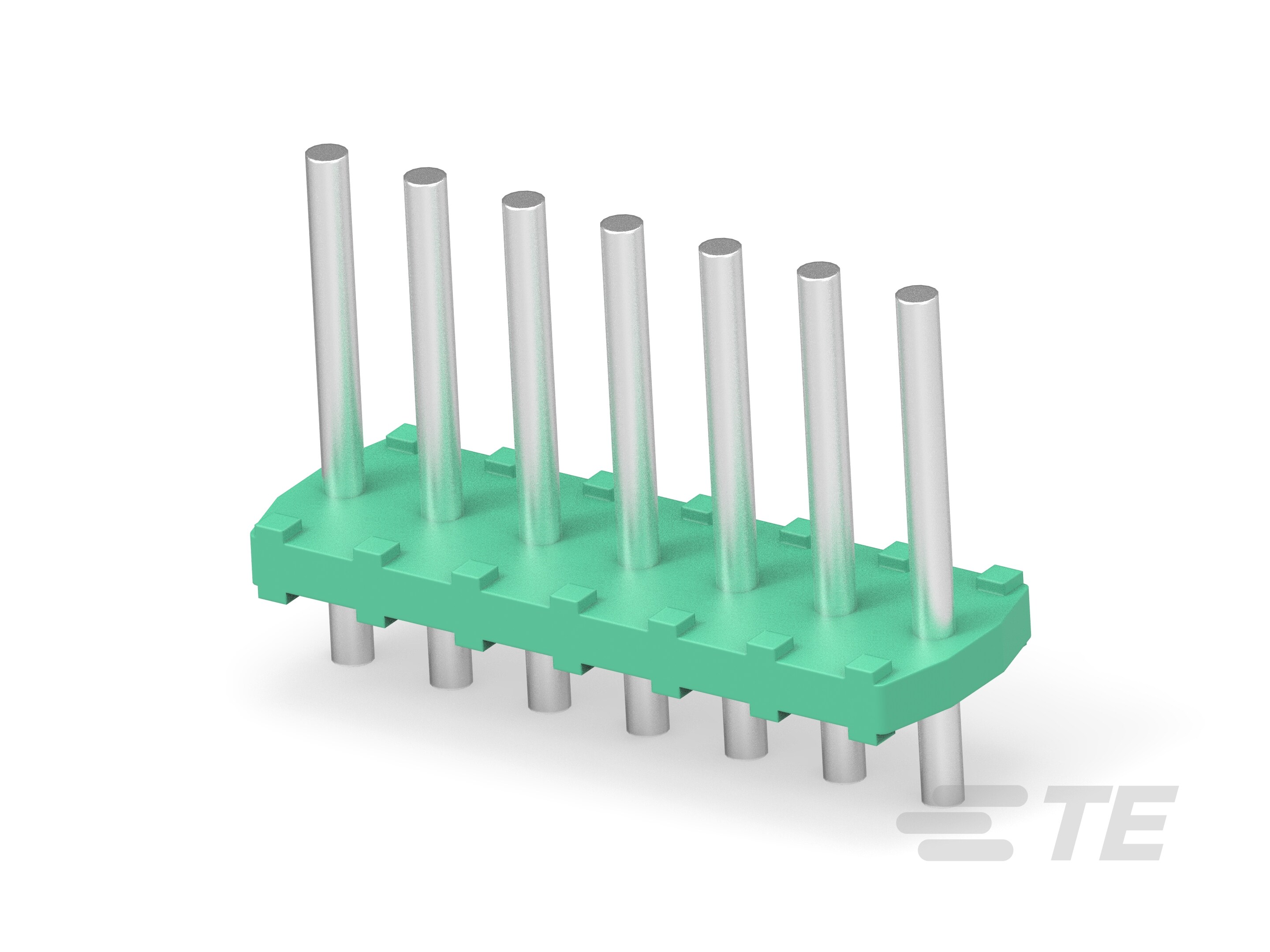

TE Connectivity AMP Connectors 1986718-7	Vertical	Solder	1	Green	7	-40 °C	110 °C	0.138 in	Header Male Pins Unshrouded	150 V	Tin	2 A	Through Hole	7	UL94 V-0	0.138 in	Nylon PA Polyamide	Copper Alloy	0.094 in
