EZ-300 Series

Catalog

7/16-MALE (PLUG) CRIMP CONNECTOR

Part	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Housing Color	Cable Group	Fastening Type	Frequency - Max	Number of Ports	Shield Termination	Mounting Type	Connector Style	Connector Type	Contact Termination	Impedance	Dielectric Material	Voltage Rating	Body Finish	Body Material	Center Contact Material	Mating Cycles
McGill Microwave Systems EZ-300-716M-X	-40 °C	85 °C	Gold	Silver	LMR-300	Threaded	7.5 GHz	1	Crimp	Free Hanging (In-Line)	7/16 DIN	Male Pin Plug	Push On	50 Ohm
McGill Microwave Systems EZ-300-4310M-X	-40 °C	85 °C	Gold	Silver	LMR-300	Threaded	6000 MHz	1	Crimp	Free Hanging (In-Line)	4.3/10	Male Pin Plug	Push On	50 Ohm

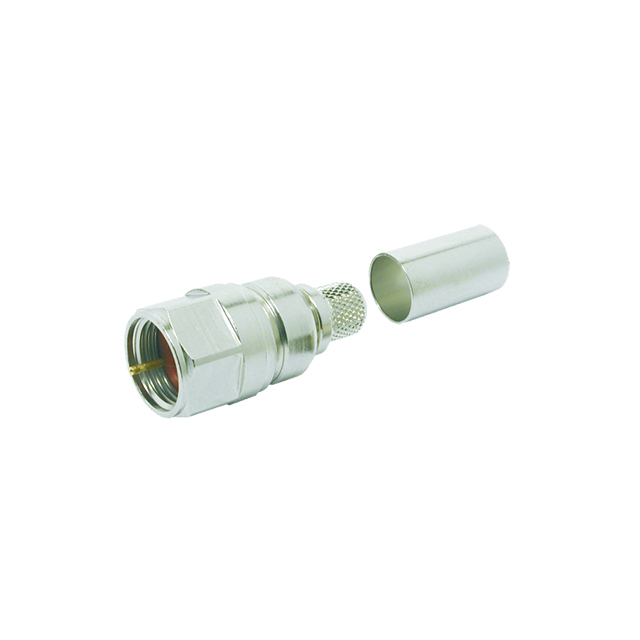

McGill Microwave Systems EZ-300-FMH-75	-40 °C	85 °C	Gold	Silver	LMR-300-75	Threaded	2 GHz	1	Crimp	Free Hanging (In-Line)	F Type	Male Pin Plug	Push On	75 Ohm	Polytetrafluoroethylene (PTFE)	500 V	Nickel	Brass	Brass
McGill Microwave Systems EZ-300-NM-75	-40 °C	85 °C	Gold	Silver	LMR-300-75	Threaded	2 GHz	1	Crimp	Free Hanging (In-Line)	N Type	Male Pin Plug	Push On	75 Ohm	Polytetrafluoroethylene (PTFE)	1000 V	Nickel	Brass	Brass
McGill Microwave Systems EZ-300-NMH-X	-55 °C	155 °C	Gold	Silver	LMR-300	Threaded	6000 MHz	1	Crimp	Free Hanging (In-Line)	N Type	Male Pin Plug	Push On	50 Ohm	Polytetrafluoroethylene (PTFE)	500 V	White Bronze	Brass	Beryllium Copper	500 cycles

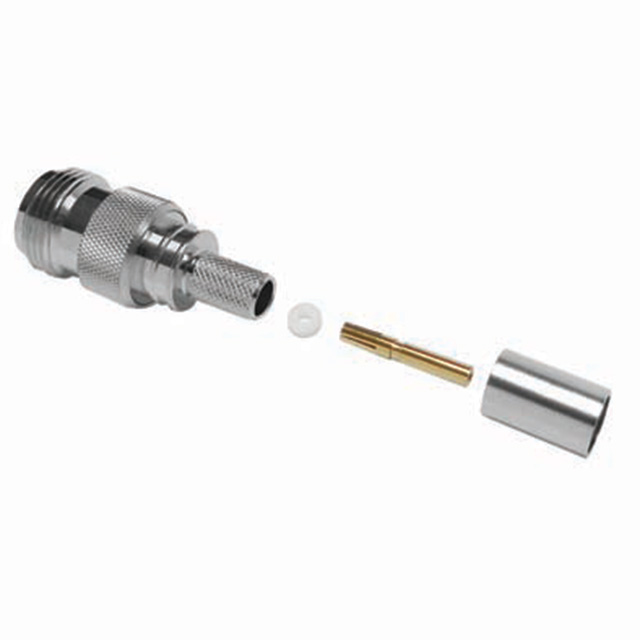

McGill Microwave Systems EZ-300-NF-X	-55 °C	155 °C	Gold	Silver	LMR-300	Threaded	6000 MHz	1	Crimp	Free Hanging (In-Line)	N Type	Female Socket Jack	Solder	50 Ohm	Polytetrafluoroethylene (PTFE)	500 V	White Bronze	Brass	Phosphor Bronze	500 cycles
McGill Microwave Systems EZ-300-716M-RA-X	-40 °C	85 °C	Gold	Silver	LMR-300	Threaded	7.5 GHz	1	Crimp	Free Hanging (In-Line) Right Angle	7/16 DIN	Male Pin Plug	Push On	50 Ohm
