D-4V-ASCX Series

Catalog

SENSOR 1PSID 0.19" 4.75V 4SIP

Part	Package Name	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package / Case	Features	Port Diameter	Port Gender	Port Feature	Applications	Accuracy	Termination Style	Mounting Type	Maximum Pressure	Port Style	Output Type	Operating Temperature (Max)	Operating Temperature (Min)	Output Voltage (Max)	Output Voltage (Min)	Pressure Type	Operating Pressure
McGill Microwave Systems 1 PSI-D-4V-ASCX	4-SIP	5.5 V	4.5 V	4-SIP	Amplified Output Temperature Compensated	0.19 "	Male	Dual Tube	Board Mount	0.5 % RH	PC Pin	Through Hole	5 PSI	Barbless	Wheatstone Bridge	105 °C	-25 °C	4.75 V	0.25 V	Differential	1 PSI
McGill Microwave Systems 30 PSI-D-4V-ASCX	4-SIP	5.5 V	4.5 V	4-SIP	Amplified Output Temperature Compensated	0.19 "	Male	Dual Tube	Board Mount	0.5 % RH	PC Pin	Through Hole	100 PSI	Barbless	Wheatstone Bridge	105 °C	-25 °C	4.75 V	0.25 V	Differential	30 PSI

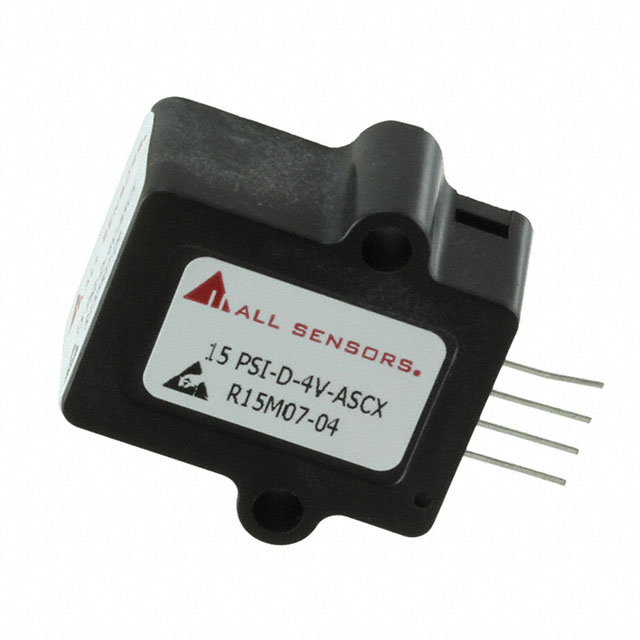

McGill Microwave Systems 15 PSI-D-4V-ASCX	4-SIP	5.5 V	4.5 V	4-SIP	Amplified Output Temperature Compensated	0.19 "	Male	Dual Tube	Board Mount	0.5 % RH	PC Pin	Through Hole	45 PSI	Barbless	Wheatstone Bridge	105 °C	-25 °C	4.75 V	0.25 V	Differential	15 PSI
McGill Microwave Systems 100 PSI-D-4V-ASCX	4-SIP	5.5 V	4.5 V	4-SIP	Amplified Output Temperature Compensated	0.19 "	Male	Dual Tube	Board Mount	0.5 % RH	PC Pin	Through Hole	150 PSI	Barbless	Analog Voltage Wheatstone Bridge	105 °C	-25 °C	4.75 V	0.25 V	Differential	100 PSI
McGill Microwave Systems 5 PSI-D-4V-ASCX	4-SIP	5.5 V	4.5 V	4-SIP	Amplified Output Temperature Compensated	0.19 "	Male	Dual Tube	Board Mount	0.5 % RH	PC Pin	Through Hole	15 PSI	Barbless	Wheatstone Bridge	105 °C	-25 °C	4.75 V	0.25 V	Differential	5 PSI
