039422 Series
Manufacturer: Molex
Beta
⌘K

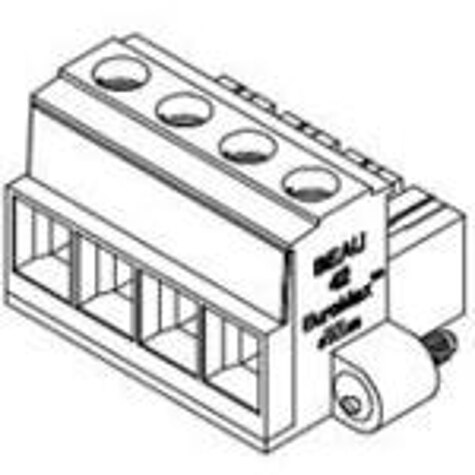

TERM BLOCK PLUG 4POS STR 12MM
| Part | Color | Number of Positions | Voltage - UL | Plug Wire Entry Angle | Contact Mating Finish | Number of Levels | Operating Temperature | Termination Style | Positions Per Level | Type | Wire Gauge or Range - AWG (Max) | Wire Gauge or Range - AWG (Min) | Mounting Type | Current - UL | Features | Pitch | Contact Material | Insulation Height | Material Flammability Rating | Screw Size | Housing Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Black | 4 | 600 V | 180 ° | Tin | 1 | 130 °C | Screw - Rising Cage Clamp | 4 | Female Sockets Plug | 14 AWG | 3 AWG | Free Hanging (In-Line) | 85 A | Mating Flange Retention Latches (Non-Wire Side) | 0.472 in | Copper Alloy | 1.311 in | UL94 V-0 | M5 | PBT Polybutylene Terephthalate |
 Molex | Black | 2 | 600 V | 180 ° | Tin | 1 | 130 °C | Screw - Rising Cage Clamp | 2 | Female Sockets Plug | 14 AWG | 3 AWG | Free Hanging (In-Line) | 85 A | Mating Flange Retention Latches (Non-Wire Side) | 0.472 in | Copper Alloy | 1.311 in | UL94 V-0 | M5 | PBT Polybutylene Terephthalate |
 Molex | Black | 3 | 600 V | 180 ° | Tin | 1 | 130 °C | Screw - Rising Cage Clamp | 3 | Female Sockets Plug | 14 AWG | 3 AWG | Free Hanging (In-Line) | 85 A | Mating Flange Retention Latches (Non-Wire Side) | 0.472 in | Copper Alloy | 1.311 in | UL94 V-0 | M5 | PBT Polybutylene Terephthalate |
