MR/MS Series

Catalog

D-SUB MIL SPEC CONNECTORS LOW PROFILE BOARDMNT R/A 2 ROW .050"

Part	Contact Finish Thickness	Contact Finish	Current Rating	Termination	Number of Rows	Number of Positions	Connector Layout Row to Row	Connector Layout Pitch	Connector Type	Flange Feature	Mounting Type	Shell Material, Finish	Contact Type	Connector Style	Primary Material	Dielectric Material	Operating Temperature (Max)	Operating Temperature (Min)	Contact Material	Finish	Shell Material
AirBorn, a Molex company MS-252-015-335-220S	50 µin	Gold	3 A	Solder	2	15	0.043	0.05	Male Pins Plug	Female Screwlock (2-56) Mating Side	Right Angle Through Hole	Aluminum Alloy Electroless Nickel Plated	Signal	D-Type Micro-D	Metal
AirBorn, a Molex company MS-252-021-345-410R	50 µin	Gold	3 A	Solder	2	21	0.043	0.05	Male Pins Plug	Female Screwlock (2-56) Mating Side	Right Angle Through Hole	Aluminum Alloy Electroless Nickel Plated	Signal	D-Type Micro-D	Metal

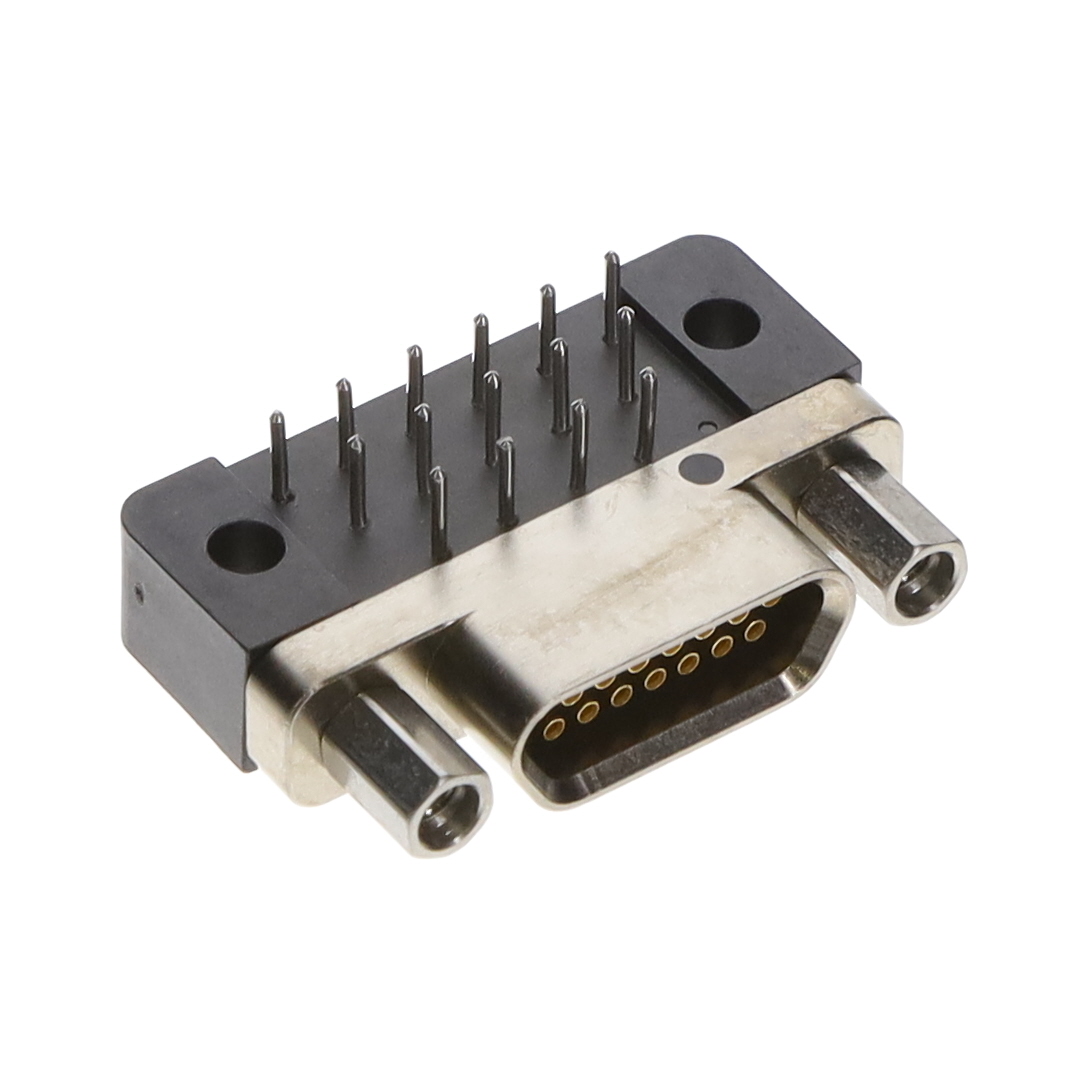

AirBorn, a Molex company MS-262-015-435-220S	50 µin	Gold	3 A	Solder	2	15	0.05	0.05	Female Sockets Receptacle	Female Screwlock (2-56) Mating Side	Right Angle Through Hole	Aluminum Alloy Electroless Nickel Plated	Signal	D-Type Micro-D	Metal	Polyphenylene Sulfide (PPS)	125 °C	-55 °C	Brass
AirBorn, a Molex company MS-253-031-335-220S	50 µin	Gold	3 A	Solder	2	31	0.043	0.05	Male Pins Plug	Female Screwlock (2-56) Mating Side	Right Angle Through Hole		Signal	D-Type Micro-D	Metal					Electrodeposite Plated Cadmium	Aluminum Alloy
AirBorn, a Molex company MS-262-015-435-220S	50 µin	Gold	3 A	Solder	2	15	0.05	0.05	Female Sockets Receptacle	Female Screwlock (2-56) Mating Side	Right Angle Through Hole	Aluminum Alloy Electroless Nickel Plated	Signal	D-Type Micro-D	Metal

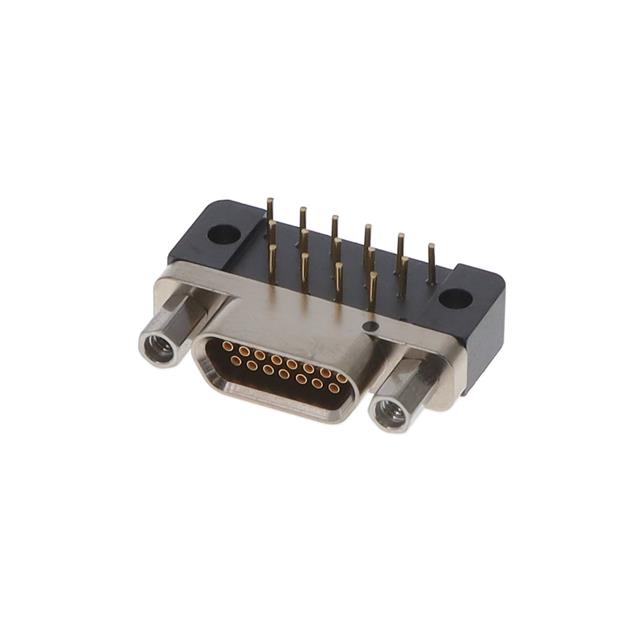

AirBorn, a Molex company MS-262-015-433-220S	50 µin	Gold	3 A	Solder	2	15	0.05	0.05	Female Sockets Receptacle	Female Screwlock (2-56) Mating Side	Right Angle Through Hole	Aluminum Alloy Electroless Nickel Plated	Signal	D-Type Micro-D	Metal
AirBorn, a Molex company MS-252-021-325-410S
AirBorn, a Molex company MS-263-015-435-220S
AirBorn, a Molex company MS-262-015-433-220S	50 µin	Gold	3 A	Solder	2	15	0.05	0.05	Female Sockets Receptacle	Female Screwlock (2-56) Mating Side	Right Angle Through Hole	Aluminum Alloy Electroless Nickel Plated	Signal	D-Type Micro-D	Metal	Polyphenylene Sulfide (PPS)	125 °C	-55 °C	Brass
