747847 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

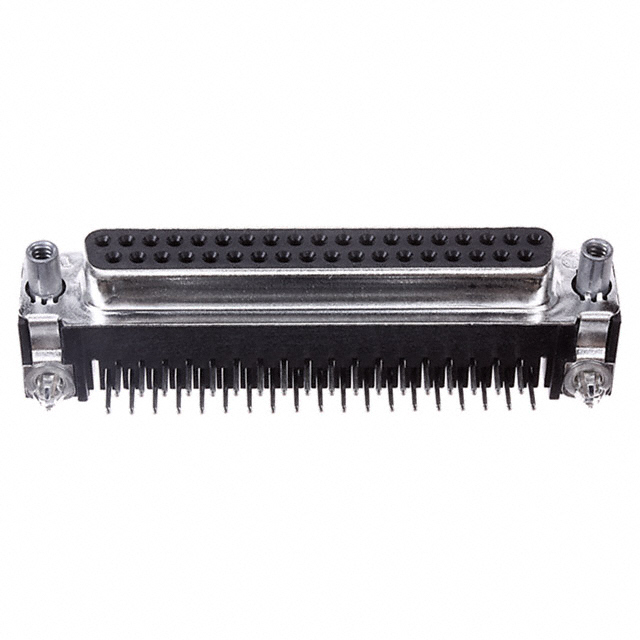

CONN D-SUB RCPT 37POS R/A SLDR
| Part | Contact Material | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Material Flammability Rating | Voltage Rating | Backset Spacing | Backset Spacing | Connector Style | Number of Positions | Dielectric Material | Number of Rows | Connector Type | Flange Feature | Contact Finish | Shell Size, Connector Layout | Features | Operating Temperature [Max] | Operating Temperature [Min] | Color | Current Rating (Amps) | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Phosphor Bronze | Signal | 0.76 Ám | 30 Áin | UL94 V-0 | 125 VDC | 8.08 mm | 0.318 " | D-Sub | 37 | Thermoplastic | 2 | Receptacle Female Sockets | Female Screwlock (4-40) Mating Side | Gold | 4 (DC C) | Board Lock Ground Strap | 105 ░C | -55 °C | Black | 6 A | Solder | Through Hole Right Angle |
 TE Connectivity Raychem Cable Protection | Phosphor Bronze | Signal | 0.76 Ám | 30 Áin | UL94 V-0 | 125 VDC | 8.08 mm | 0.318 " | D-Sub | 37 | Thermoplastic | 2 | Receptacle Female Sockets | Housing/Shell (4-40) | Gold | 4 (DC C) | Board Lock Ground Strap | 105 ░C | -55 °C | Black | 6 A | Solder | Through Hole Right Angle |
