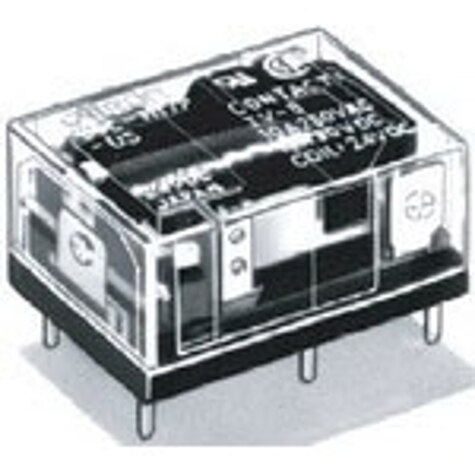

G6C-111 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
GENERAL PURPOSE RELAYS POWER PCB RELAY
| Part | Must Operate Voltage | Load - Max Switching (Apparent Power) | Load - Max Switching (Real Power) | Switching Voltage DC (Max) | Switching Voltage AC (Max) | Coil Voltage | Release Time | Mounting Type | Coil Type | Form A Count | Contact Form | Relay Type | Operate Time | Contact Material | Must Release Voltage | Seal Rating | Coil Resistance | Contact Rating (Current) | Coil Current | Operating Temperature (Max) | Operating Temperature (Min) | Termination Style | Approval Agency | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 2.1 VDC | 3800 VA | 1250 W | 125 VDC | 380 VAC | 3 VDC | 10 ms | Through Hole | Non Latching | 1 | SPST-NO | General Purpose | 10 ms | Cadmium Free Silver Alloy | 0.3 VDC | Flux Protection Sealed | 45 Ohms | 10 A | 67 mA | 70 °C | -25 °C | PC Pin | CSA TUV UR VDE | |
 Omron Electronics Inc-EMC Div | 4.2 VAC | 3800 VA | 1250 W | 125 VDC | 380 VAC | 6 VAC | 10 ms | Through Hole | Non Latching | 1 | SPST-NO | General Purpose | 10 ms | Cadmium Free Silver Alloy | 0.6 VAC | Flux Protection Sealed | 180 Ohms | 10 A | 33.3 mA | 70 °C | -25 °C | PC Pin | CSA TUV UR VDE | |
 Omron Electronics Inc-EMC Div | 3.5 VDC | 3800 VA | 1250 W | 125 VDC | 380 VAC | 5 V | 10 ms | Through Hole | Non Latching | 1 | SPST-NO | General Purpose | 10 ms | Cadmium Free Silver Alloy | 0.5 VDC | Flux Protection Sealed | 125 Ohms | 10 A | 40 mA | 70 °C | -25 °C | PC Pin | CSA TUV UR VDE | Socket Included |
 Omron Electronics Inc-EMC Div | 4.2 VAC | 3800 VA | 1250 W | 125 VDC | 380 VAC | 6 VAC | 10 ms | Through Hole | Non Latching | 1 | SPST-NO | General Purpose | 10 ms | Cadmium Free Silver Alloy | 0.6 VAC | Fully Sealed | 180 Ohms | 10 A | 33.3 mA | 70 °C | -25 °C | PC Pin | CSA TUV UR VDE | |
Omron Electronics Inc-EMC Div | 8.4 VAC | 3800 VA | 1250 W | 125 VDC | 380 VAC | 12 VAC | 10 ms | Through Hole | Non Latching | 1 | SPST-NO | General Purpose | 10 ms | Cadmium Free Silver Alloy | 1.2 V | Fully Sealed | 720 Ohms | 10 A | 16.7 mA | 70 °C | -25 °C | PC Pin | CSA TUV UR VDE | |
 Omron Electronics Inc-EMC Div | 16.8 VDC | 3800 VA | 1250 W | 125 VDC | 380 VAC | 24 VDC | 10 ms | Through Hole | Non Latching | 1 | SPST-NO | General Purpose | 10 ms | Cadmium Free Silver Alloy | 2.4 V | Flux Protection Sealed | 2.88 kOhms | 10 A | 8.3 mA | 70 °C | -25 °C | PC Pin | CSA TUV UR VDE | |
Omron Electronics Inc-EMC Div | 8.4 VAC | 3800 VA | 1250 W | 125 VDC | 380 VAC | 12 VAC | 10 ms | Through Hole | Non Latching | 1 | SPST-NO | General Purpose | 10 ms | Cadmium Free Silver Alloy | 1.2 V | Fully Sealed | 720 Ohms | 10 A | 16.7 mA | 70 °C | -25 °C | PC Pin | CSA TUV UR VDE |
