SF4D Series

Catalog

LIGHT CURTAIN HAND 25MM

Part	Voltage - Supply	Beam Pitch	Operating Range (Range 1) Min	Operating Range (Range 1) Max	Operating Range (Range 2) Max	Operating Range (Range 2) Min	Protection	Protective Height	Ingress Protection IP Rating	Ingress Protection Description	Detection Capability	Operating Temperature (Min)	Operating Temperature (Max)	Features	Number of Beams

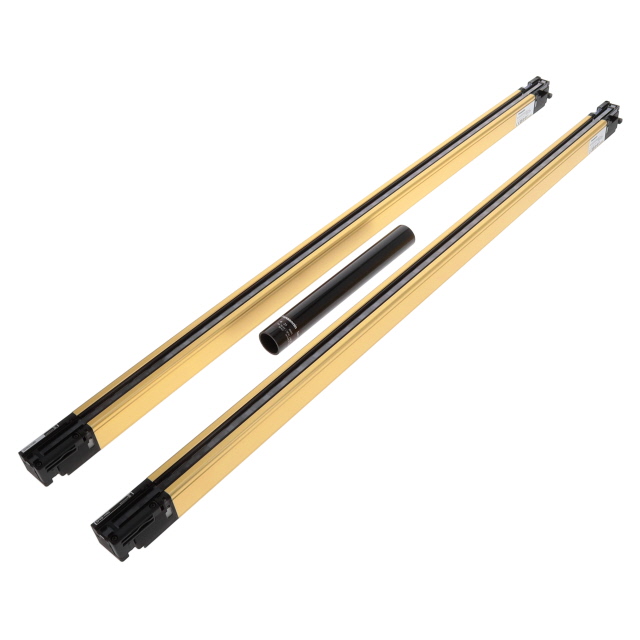

Panasonic Industrial Automation Sales SF4D-H40	24 VDC	20 mm	0.2 m	9 m	15 m	0.8 m	Hand	790 mm	IP65 IP67	Dust Tight NEMA 13 Water Resistant Waterproof	25 mm	-10 °C	55 °C	Blanking Muting Function	40
Panasonic Industrial Automation Sales SF4D-H96	24 VDC	20 mm	0.2 m	9 m	15 m	0.8 m	Hand	1910 mm	IP65 IP67	Dust Tight NEMA 13 Water Resistant Waterproof	25 mm	-10 °C	55 °C	Blanking Muting Function	96

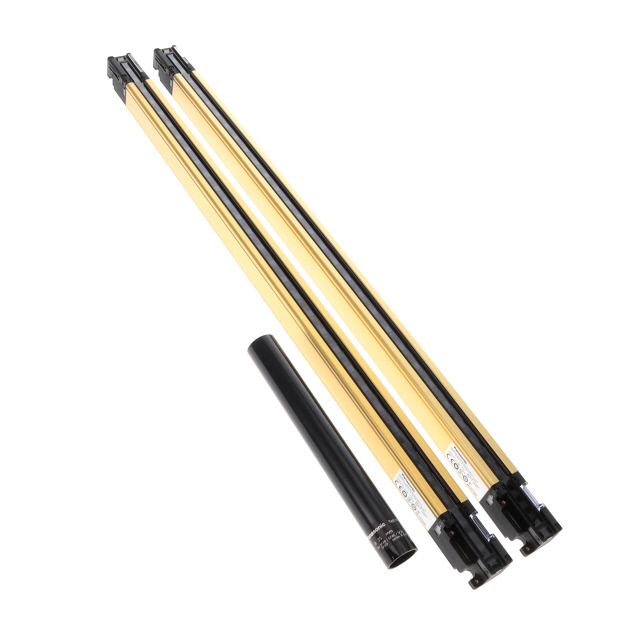

Panasonic Industrial Automation Sales SF4D-H32	24 VDC	20 mm	0.2 m	9 m	15 m	0.8 m	Hand	630 mm	IP65 IP67	Dust Tight NEMA 13 Water Resistant Waterproof	25 mm	-10 °C	55 °C	Blanking Muting Function	32

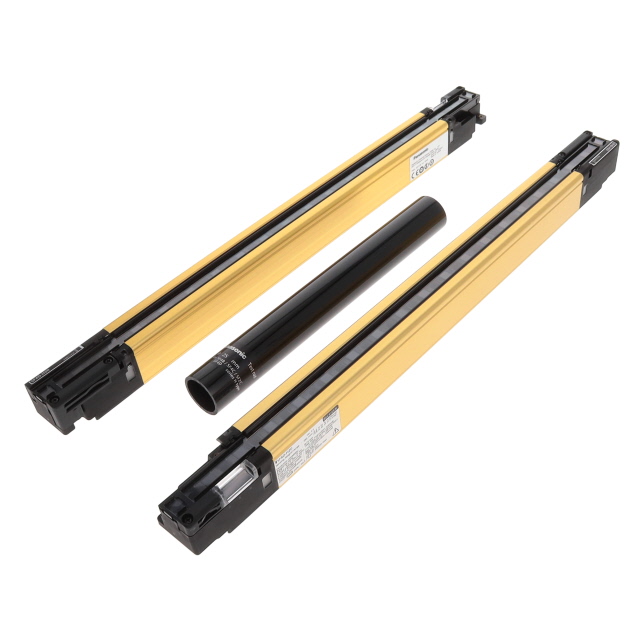

Panasonic Industrial Automation Sales SF4D-H20	24 VDC	20 mm	0.2 m	9 m	15 m	0.8 m	Hand	390 mm	IP65 IP67	Dust Tight NEMA 13 Water Resistant Waterproof	25 mm	-10 °C	55 °C	Blanking Muting Function	20

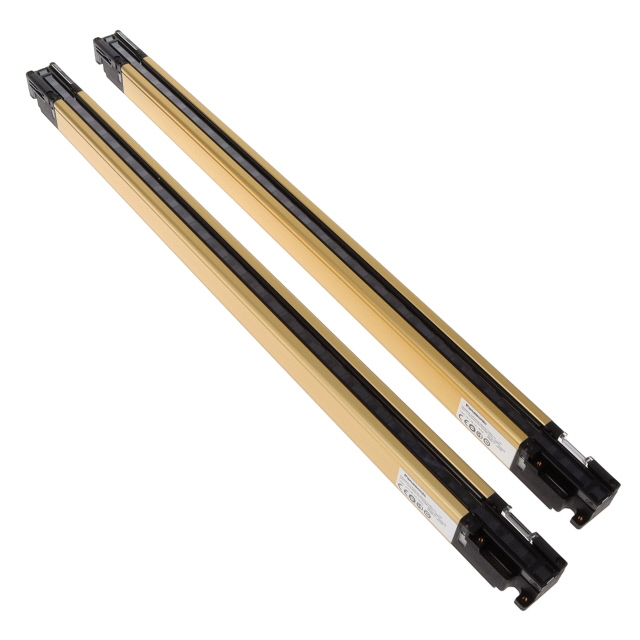

Panasonic Industrial Automation Sales SF4D-H28	24 VDC	20 mm	0.2 m	9 m	15 m	0.8 m	Hand	550 mm	IP65 IP67	Dust Tight NEMA 13 Water Resistant Waterproof	25 mm	-10 °C	55 °C	Blanking Muting Function	28

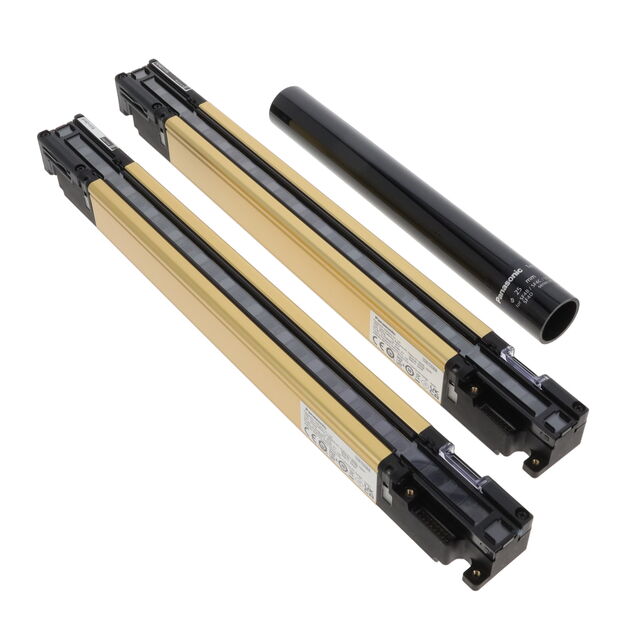

Panasonic Industrial Automation Sales SF4D-H16	24 VDC	20 mm	0.2 m	9 m	15 m	0.8 m	Hand	310 mm	IP65 IP67	Dust Tight NEMA 13 Water Resistant Waterproof	25 mm	-10 °C	55 °C	Blanking Muting Function	16
